Why This Power Supply Board Feeds Your Drive Electronics

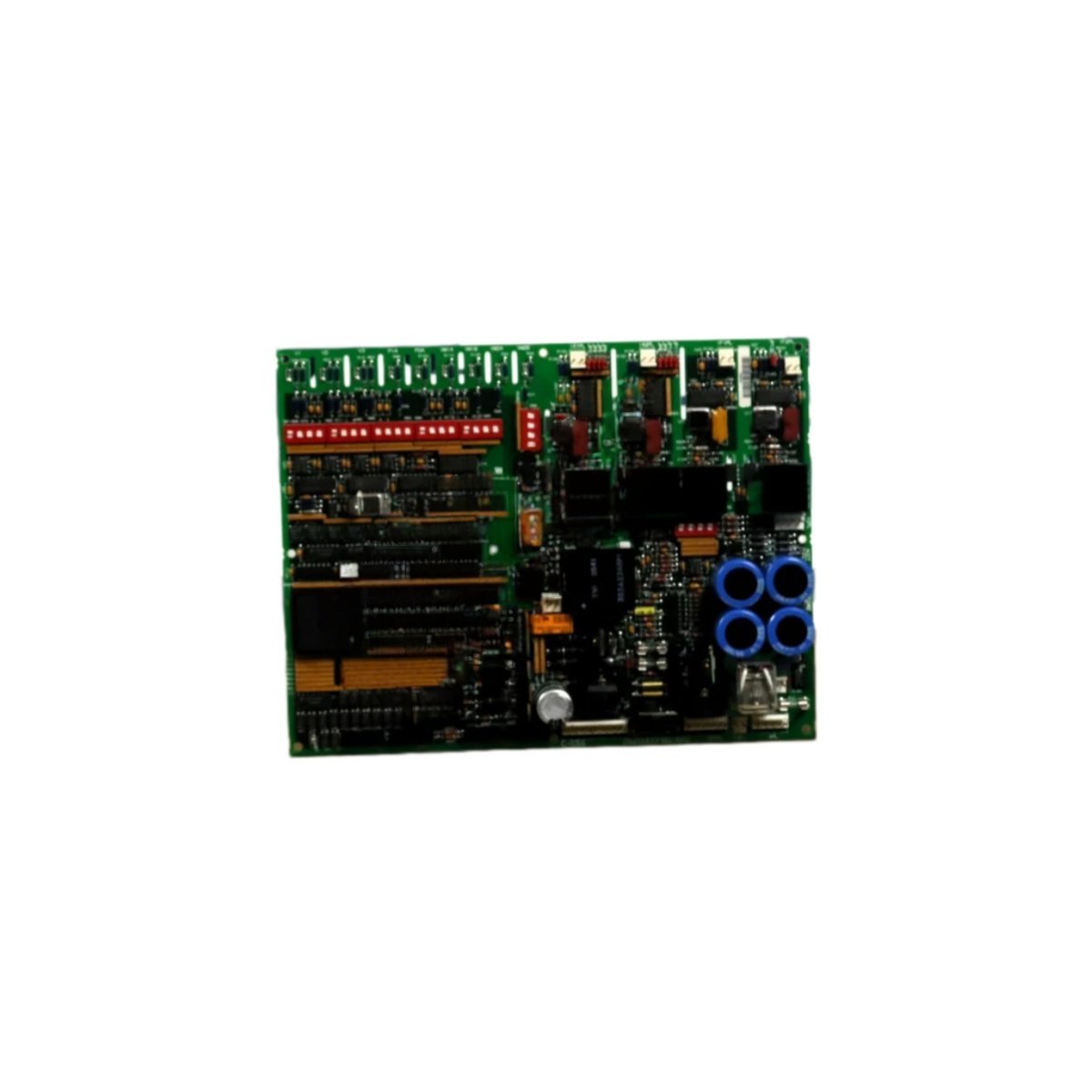

This power supply board converts incoming AC into stable DC voltages. You get a robust GE DS200DCFBG1B DS200DCFBG1BKC for industrial drive systems. It powers logic circuits, gate drives, and protection relays. Therefore, your drive operates continuously without voltage sags or brownouts.
Technical Specifications and Physical Details
The GE DS200DCFBG1B DS200DCFBG1BKC generates three main DC output rails. It provides +5V for logic, +15V for analog circuits, and +24V for I/O. This board mounts directly onto the drive chassis. Its dimensions measure approximately 260 mm in width and 190 mm in height. The unit weighs around 0.68 kg for secure installation. This power supply stores energy in bulk filter capacitors. Consequently, the system runs for a few seconds after losing AC input.
Below is the detailed breakdown of the hardware specifications.
| Parameter | Specification |
|---|---|
| Product Model | DS200DCFBG1B DS200DCFBG1BKC |
| Product Type | Power Supply Board |
| Brand | GE (General Electric) |
| Number of Outputs | 3 DC rails |
| Output Voltages | +5V, +15V, +24V |
| Input Voltage | 230V AC (nominal) |
| Mounting Type | Chassis mount |
| Dimensions (W x H) | Approx. 260 x 190 mm |
| Approx. Weight | 0.68 kg |
| Energy Storage | Bulk filter capacitors |
| Component Count | Single populated PCB |
Installation and Wiring Notes
This board mounts near the AC input terminal block. You must use proper gauge wires for the AC supply. The GE DS200DCFBG1B DS200DCFBG1BKC requires an external fuse or circuit breaker. Therefore, install a 10A slow-blow fuse in series with the line input. Always discharge the capacitor bank before touching any components. Stored voltage remains dangerous for up to five minutes after power removal.
Details
| Weight | 0.45 kg |
|---|---|
| Dimensions | 170 × 145 × 65 mm |
