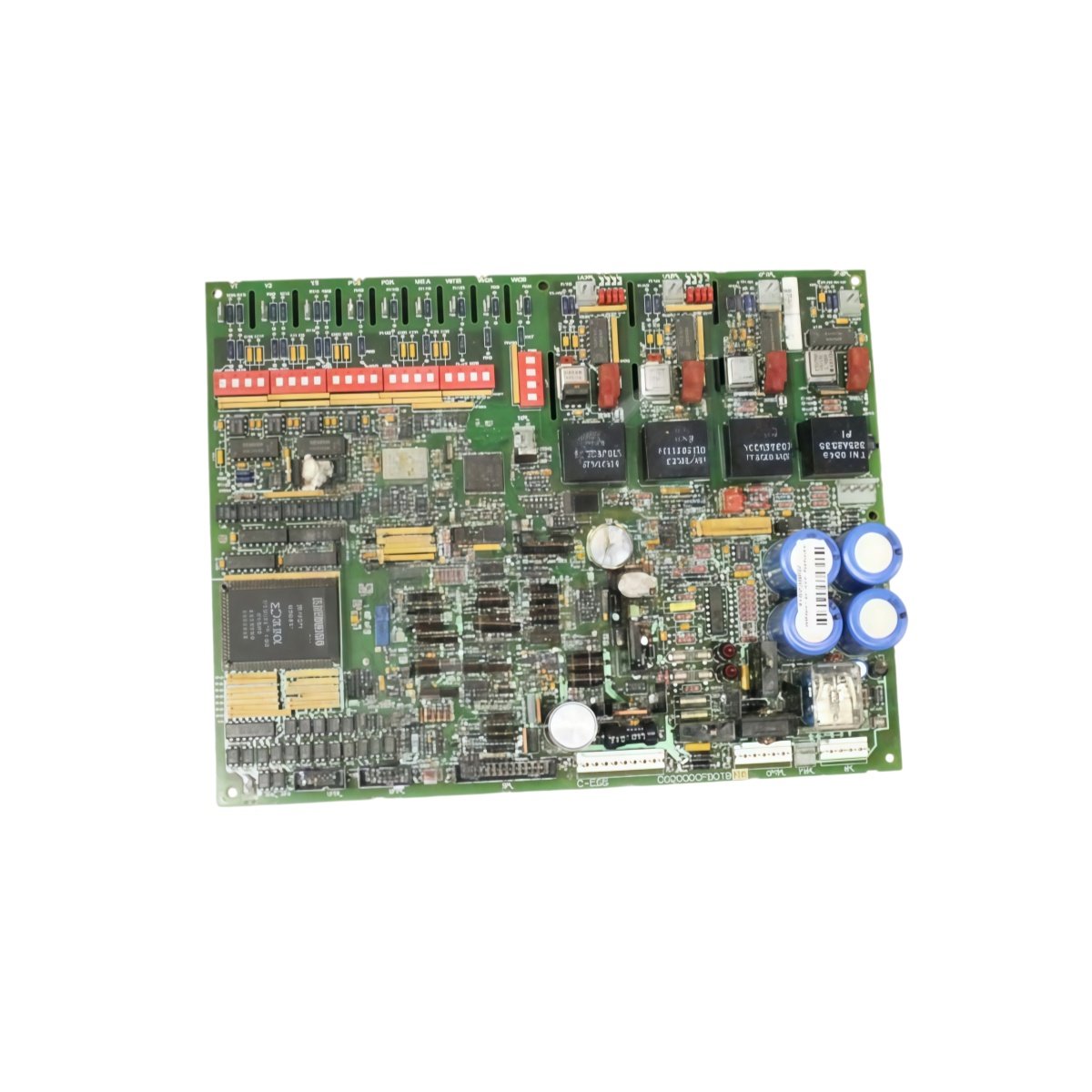

The DS200DCFBG1B DS200DCFBG1BDB converts 250V DC input into stable 24V DC output. This board delivers 120W continuous power for turbine control systems. It operates reliably in harsh industrial environments.

Key Technical Specifications

Physical Dimensions and Layout

This board measures 25.4 cm in length and 18.0 cm in width. Its total height reaches 5.1 cm including the heat sink. DS200DCFBG1B DS200DCFBG1BDB weighs exactly 2.3 kg for mechanical stability. You will find 78 discrete components on a four-layer PCB.

Additionally, the board integrates a 6800 µF bulk capacitor bank. This bank stores energy and smooths voltage ripples during load transients. It also provides a 50 ms hold-up time after input loss.

Connector Interfaces

The front panel includes two 20-pin male connectors for field wiring. These connectors handle input power and output power separately. An 8-pin auxiliary interface sends status signals to the main controller. A grounding stud also sits near the bottom edge for safety.

Thermal Management

A passive heat sink covers eight power transistors on this board. This design removes heat without any active cooling fans. Therefore, the board runs silently in dusty industrial cabinets. The single-slot VME carrier allows easy rack installation.

Typical Applications

You can deploy DS200DCFBG1B DS200DCFBG1BDB in gas turbine control panels. It also works well in steam turbine and exciter systems. This board provides clean 24V DC power to I/O modules. Its high capacitance protects downstream circuits from brief interruptions.
