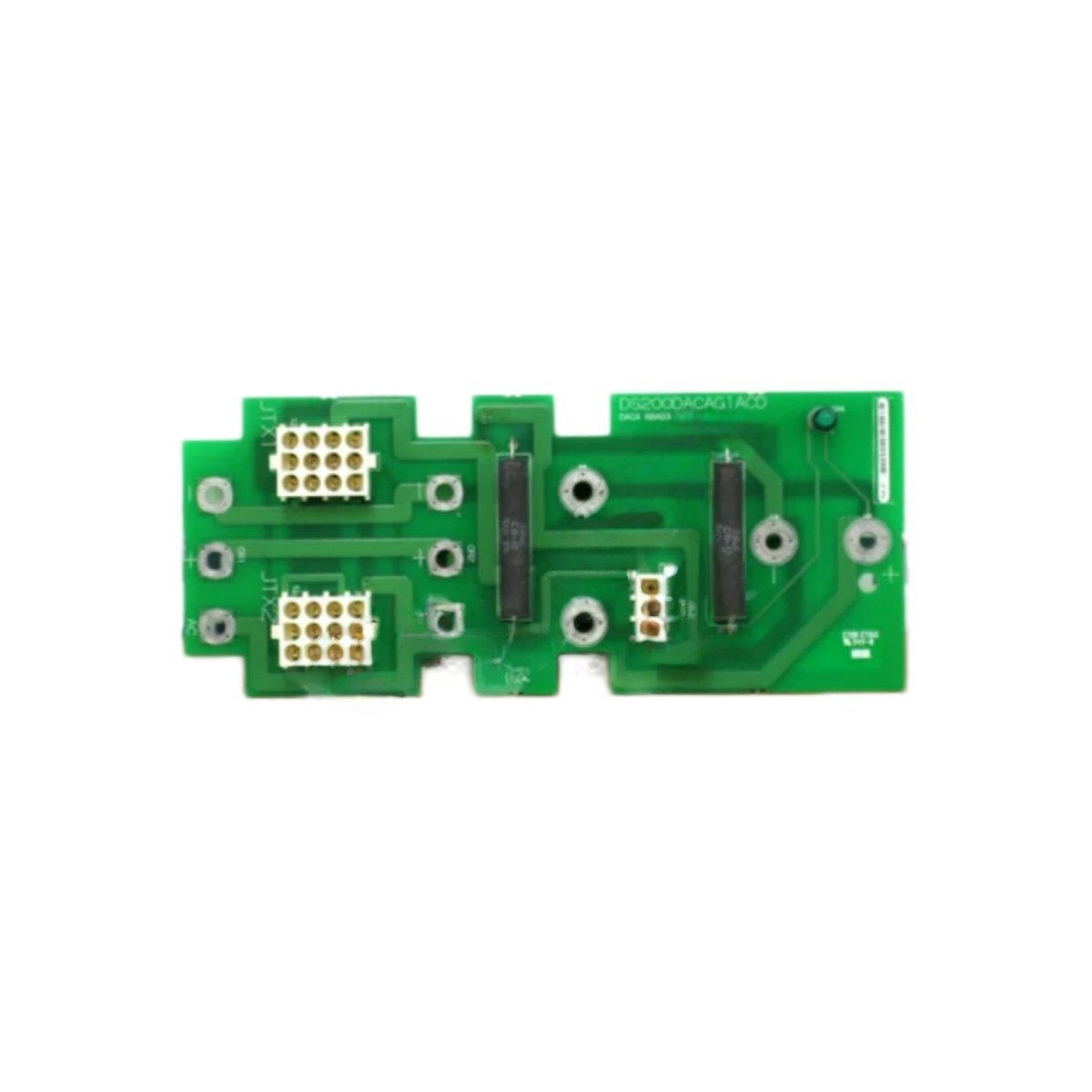

This AC/DC converter board transforms incoming AC voltage into regulated DC power. It supplies stable 24V DC to control circuits and field devices. The unit mounts inside the drive cabinet as a power conversion module.
Technical specifications
| Parameter | Specification |
|---|---|
| Brand | GE Energy |
| Model 1 | DS200DACAG1A |
| Model 2 | DS200DACAG1ACD |
| Product Family | Mark V / Drive Control |
| Category | AC/DC Converter Board |
| PCB Layer Count | 4 layers |
| Base Material | FR-4 flame retardant |
| Input Voltage | 120V AC nominal (100V to 132V) |
| Input Frequency | 50/60 Hz |
| Input Current | 0.5A typical |
| Output Voltage | 24V DC regulated |
| Output Current | 1.5A continuous |
| Output Power | 36 Watts maximum |
| Efficiency | Approximately 82% |
| Hold-up Time | 15 ms at full load |
| Ripple | ≤ 50 mV peak-to-peak |
| Overvoltage Protection | Yes |
| Overcurrent Protection | Yes (auto-recovery) |
| Component Count | Approximately 90 components |
| Integrated Circuits | 8 ICs (PWM controller, optocouplers) |
| Connector Types | 1 x terminal block, 2 x headers |
| Status Indicators | 1 x LED (PWR) |
| Energy Storage | 4 x electrolytic capacitors (220 µF each) |
| Dimensions (L x W) | Approx. 20 cm x 13 cm |
| Thickness | Approx. 1.6 mm |
| Weight | Approx. 0.35 kg |
| Operating Temperature | 0°C to 55°C |
| Mounting | 4 x screw holes (M4) |
Detailed Technical Analysis
This AC/DC converter board accepts 120V AC input at 50 or 60 Hz. It converts this to a regulated 24V DC output at 1.5 amps. The board achieves approximately 82% efficiency under normal load conditions. It provides 36 watts of continuous output power for control circuits.
Now let us examine its protection features. This board includes overvoltage and overcurrent protection circuits. The overcurrent protection automatically recovers when you remove the fault. Four electrolytic capacitors store energy for 15 milliseconds of hold-up time. The output ripple stays below 50 millivolts for clean DC power.
This converter board draws 0.5 amps from the 120V AC supply. A single green LED confirms that the output voltage is present. Approximately 90 components populate both sides of this 4-layer PCB. Eight integrated circuits include a PWM controller and optocouplers. The GE DS200DACAG1A DS200DACAG1ACD contains no batteries for energy storage.
Installation and Connection Guidelines
You mount this board using four M4 screws with insulating standoffs. Connect the 120V AC input to the designated terminal block. Use 18 AWG or larger wire for the AC supply connection. Connect the 24V DC output to your control circuits.
For safety, connect a proper earth ground to the grounding terminal. Do not exceed 1.5 amps on the 24V DC output. The auto-recovery protection resets after fault removal. Always power down the system before inserting or removing this board.
Practical Applications
Engineers use this converter board for drive power supply and conversion. It provides isolated 24V DC from a 120V AC source. This component also works in legacy drive upgrade projects. Its 36-watt capacity suits small to medium control power requirements.
Summary of Features
To conclude, this AC/DC converter provides 24V DC at 1.5 amps from 120V AC. It weighs 0.35 kilograms and achieves 82% efficiency. Choose DS200DACAG1A DS200DACAG1ACD for reliable power conversion in drive systems.
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 25 × 108 × 127 mm |
