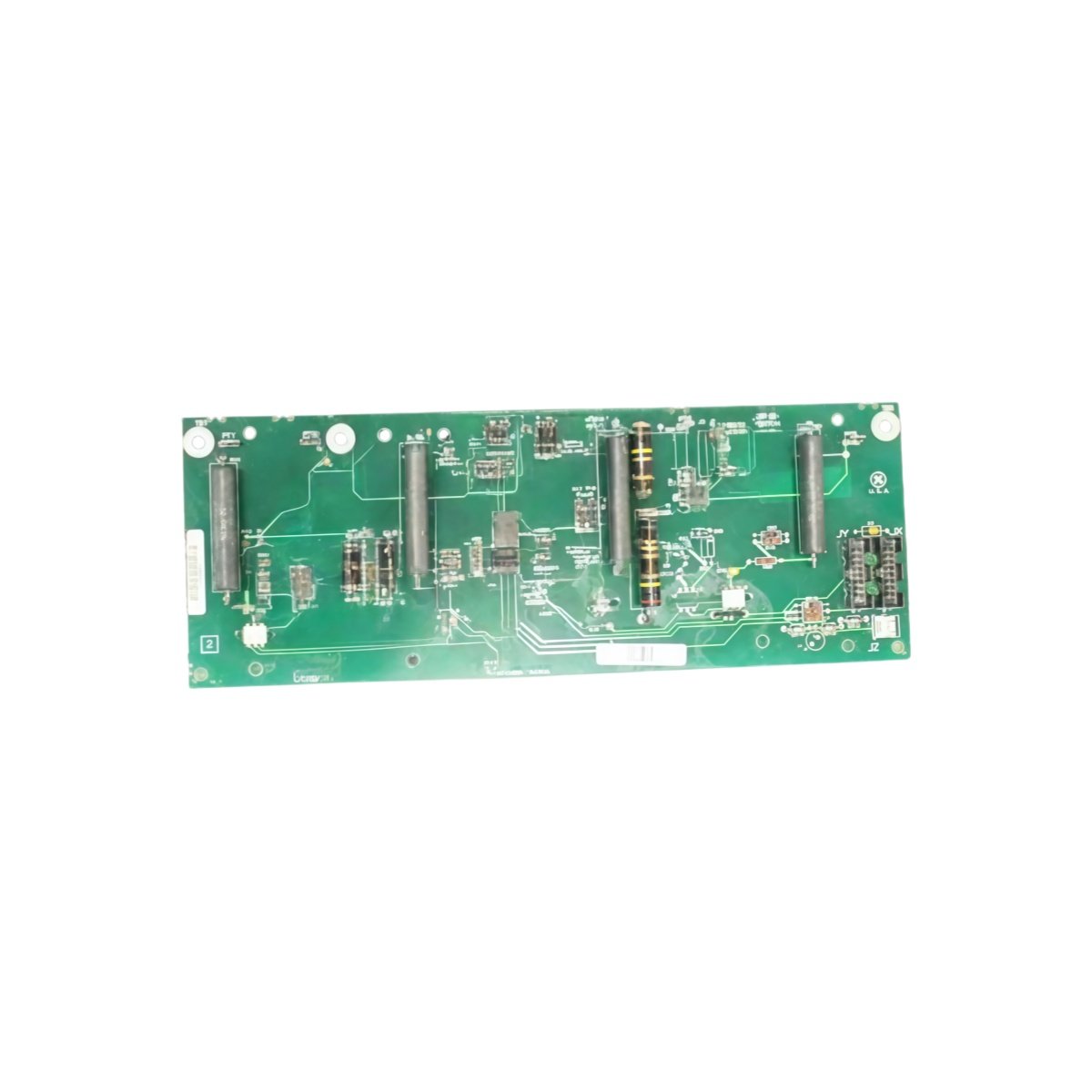

The DS200CVMAG1A DS200CVMAG1AEB handles generator voltage regulation and speed control tasks. This board executes turbine protection algorithms with 16-bit processing precision. It fits directly into Mark V series VME racks.

Key Technical Specifications

Physical Dimensions and Component Layout

This board measures 23.0 cm in length and 14.5 cm in width. Its total height reaches 3.8 cm including all surface components. DS200CVMAG1A DS200CVMAG1AEB weighs just 0.89 kg for straightforward installation. You will find 142 discrete components on a six-layer PCB design.

Additionally, the board integrates a 1500 µF backup capacitor bank. This bank stores enough energy for 20 seconds of data retention. It also filters noise on critical analog power supply rails.

Connector Interfaces and Signal Routing

The front panel provides two 37-pin D-sub connectors for field wiring. A separate 50-pin header links to the VME backplane for data transfer. Three LED indicators show run status, fault conditions, and heartbeat activity. A 10-pin JTAG port sits near the top edge for firmware updates.

Thermal Management and Processing Power

The main processor runs at 32 MHz with a passive heat spreader. This design removes heat without needing any active cooling fans. Therefore, the board runs silently in sealed turbine control cabinets. The six-layer PCB minimizes cross-talk between analog and digital signal paths.

Typical Application Scenarios

You can deploy DS200CVMAG1A DS200CVMAG1AEB in gas turbine generator control panels. It also works well for steam turbine synchronization and load sharing tasks. This board manages excitation control and protective relaying functions. Its 512KB flash stores critical tuning parameters and operating setpoints.
