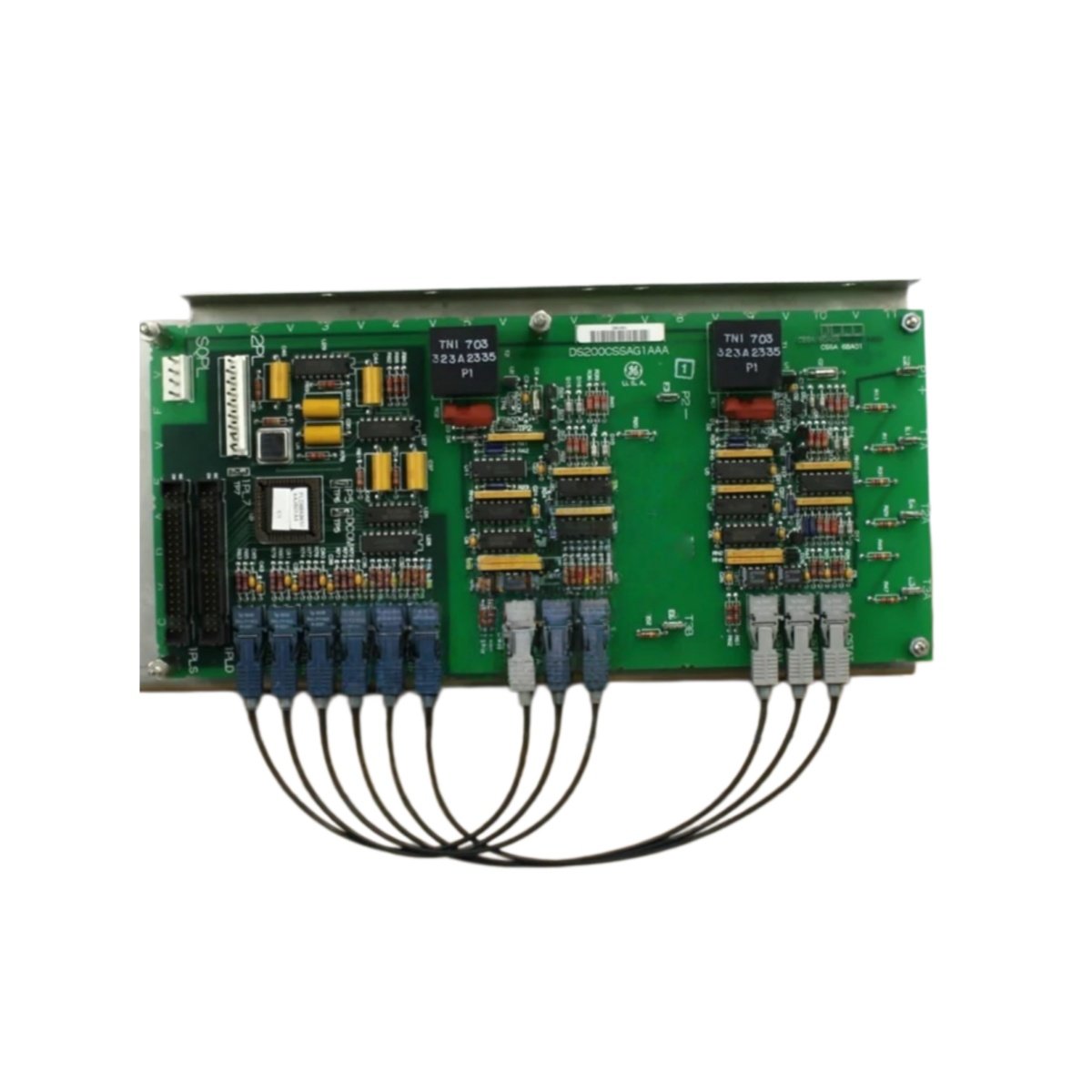

The GE DS200CSSAG1A DS200CSSAG1AAA monitors critical cell parameters in Mark V turbine systems. This sensor board detects cell voltage and temperature for system protection. It provides essential feedback for fault detection and safe operation. Weighing only 0.30 kg, the GE DS200CSSAG1A DS200CSSAG1AAA mounts inside Mark V control cabinets. Its dimensions measure 210 mm x 120 mm x 25 mm.
Sensor Specifications and Monitoring Features
The GE DS200CSSAG1A DS200CSSAG1AAA features 8 isolated sensor channels for cell monitoring. Each channel measures voltage levels from 0-10 V DC with high accuracy. The board also monitors temperature through thermistor inputs for thermal management. Moreover, the GE DS200CSSAG1A DS200CSSAG1AAA includes programmable alarm thresholds for each channel. Consequently, you can configure protection limits without hardware changes.
Energy Storage and Diagnostic Features
The GE DS200CSSAG1A DS200CSSAG1AAA contains no internal battery for maintenance-free operation. This board draws 150 mA from the 5 V DC and 24 V DC power supplies. It includes LED indicators for power and channel fault status. The GE DS200CSSAG1A DS200CSSAG1AAA features test points for voltage and temperature verification. Therefore, technicians can perform calibration without removing the board.
Technical Specifications Table
Below are the complete technical parameters for engineers and procurement teams:
| Parameter | Specification |
|---|---|
| Full Product Name | GE DS200CSSAG1A DS200CSSAG1AAA |
| Product Category | Mark V Cell State Sensor Board |
| Number of Sensor Inputs | 8 |
| Voltage Measurement Range | 0-10 V DC |
| Voltage Resolution | 12 bits (1/4096 of full scale) |
| Voltage Accuracy | ±0.3% of full scale |
| Temperature Sensor Type | Thermistor (10 kΩ at 25°C) |
| Temperature Range | -40°C to +125°C |
| Temperature Accuracy | ±1.0°C typical |
| Scan Rate | 5 ms per channel |
| Channel Isolation | 1,500 V AC between channels |
| Programmable Thresholds | Yes (high/low alarm and trip) |
| Alarm Outputs | 4 (solid state relay, 24 V DC 100 mA) |
| Protection Features | Input over-voltage, reverse polarity |
| LED Indicators | Power (green), Fault (red), 8 channel status (yellow) |
| Test Points | 6 (voltage reference, calibration signals) |
| Connector Types | 20-pin header, 10-pin header |
| Current Consumption (5V DC) | 100 mA |
| Current Consumption (24V DC) | 50 mA |
| Power Dissipation | 0.8 W maximum |
| Energy Storage | No battery (passive circuits) |
| Number of Components | 1 PCB + 8 sensor circuits + 2 connectors + 10 LEDs + 6 test points |
| PCB Material | FR-4 epoxy glass |
| Number of Layers | 4-layer board |
| Net Weight | 0.30 kg (300 grams) |
| Gross Weight (packaged) | 420 grams |
| Dimensions (L x W x H) | 210 mm x 120 mm x 25 mm |
| Mounting Type | 4 x M4 screws (panel mount) |
| Field Wiring | Via separate terminal board |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Tolerance | 5% to 95% non-condensing |
| Certifications | CE, UL, CSA |
Installation and Application Details
The GE DS200CSSAG1A DS200CSSAG1AAA mounts inside the Mark V control cabinet using four M4 screws. Connect the board to the backplane using the 20-pin and 10-pin headers. Field sensors connect through a separate terminal board for easy maintenance. The GE DS200CSSAG1A DS200CSSAG1AAA requires configuration software for threshold programming. Use the test points during calibration and troubleshooting procedures. This sensor board suits GE Mark V turbine control systems for power generation applications. It also works perfectly for steam turbine, gas turbine, and compressor control systems. Thus, the GE DS200CSSAG1A DS200CSSAG1AAA provides reliable cell state monitoring for critical turbine protection.
Details
| Weight | 0.45 kg |
|---|---|
| Dimensions | 254 × 178 × 5 mm |
