Board Functionality

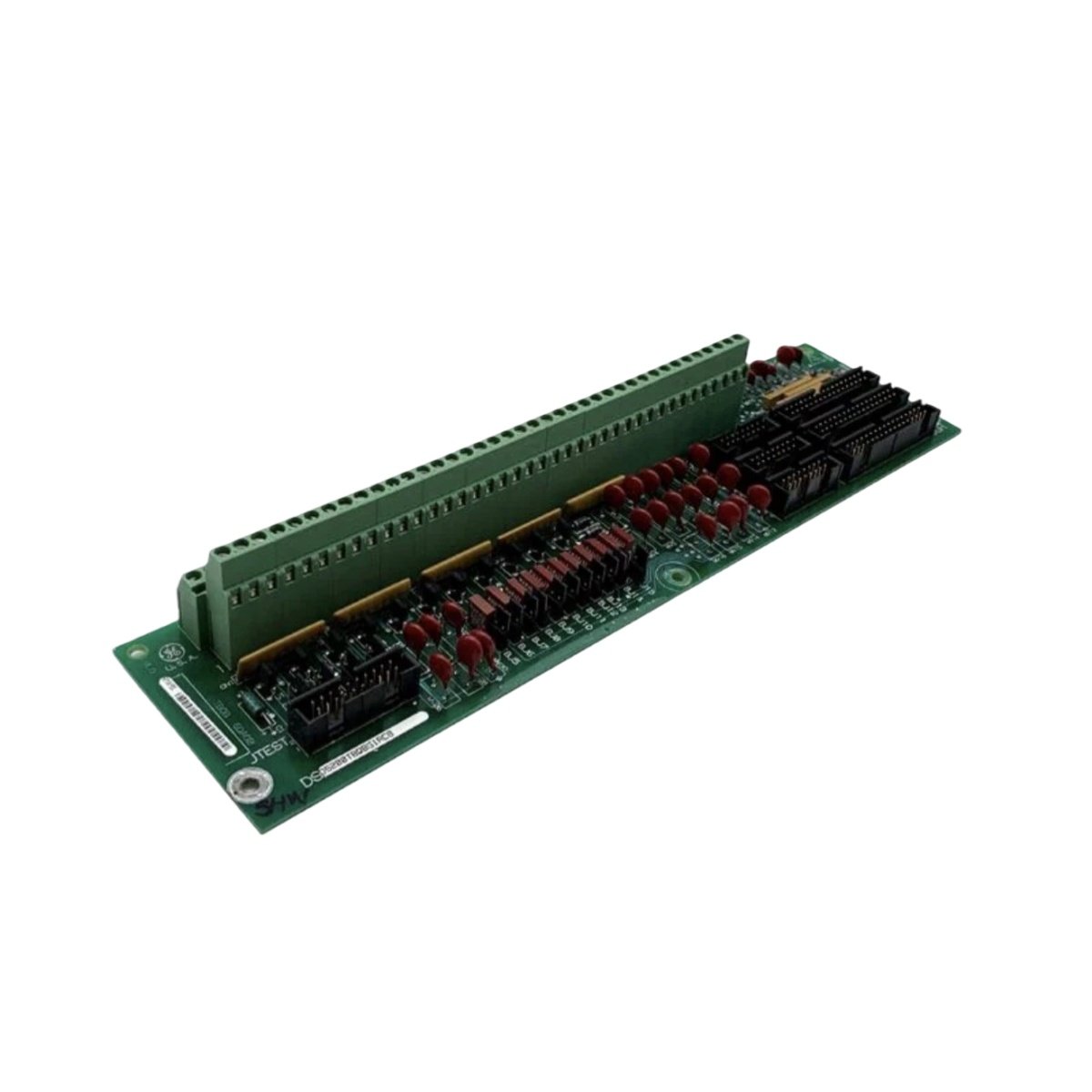

The GE DS200CDBAG1ACA contactor driver board manages high-current switching for excitation and starter systems. This printed circuit board assembly belongs to the Speedtronic Mark V turbine control family. It interfaces between the main control processor and heavy-duty contactors. Field service engineers rely on this board for reliable contactor coil energization.

Output Drive Capabilities

The GE DS200CDBAG1ACA provides 8 independent contactor driver channels on a single board. Each channel delivers 2 amperes at 125 V DC for coil excitation. The outputs handle continuous duty cycles without derating. Short-circuit protection limits each channel to 3 amperes maximum. These ratings suit most turbine and generator applications.

Input Interface and Logic Levels

The board accepts 24 V DC logic signals from the main control processor. Each input presents a 10-kilohm impedance for noise immunity. Optoisolators provide 2500 V AC isolation between logic and power sections. The board translates logic signals into high-current drive outputs. This level shifting protects sensitive control electronics effectively.

Communication with Mark V Controller

The GE DS200CDBAG1ACA connects to the main processor through a ribbon cable interface. It receives contactor command words via the parallel data bus. The board returns status information through dedicated feedback lines. Diagnostic messages indicate open or shorted coil conditions. This bidirectional communication ensures proper contactor sequencing.

Physical Dimensions and Mounting

The PCB measures 280 millimeters in width, 200 millimeters in height, and 25 millimeters in depth. The board weighs 0.55 kilograms for straightforward installation. It mounts vertically inside the Mark V cabinet using four standoffs. The assembly occupies one full slot in the rack structure.

Component Configuration and Quality

The GE DS200CDBAG1ACA uses 8 discrete power MOSFETs as switching elements. Each output includes a flyback diode for inductive kickback suppression. The PCB features gold-plated edge connectors for reliable signal transfer. All resistors meet 1% tolerance specifications for precision. The assembly undergoes 100% functional testing before shipment.

Edge Connector and Wiring Interface

A 64-pin gold-edge connector mates with the backplane for power distribution. Separate terminal blocks provide field wiring access for contactor leads. The terminal blocks accept wire sizes from 0.5 to 2.5 square millimeters. Strain relief brackets secure cables against vibration damage. This dual-interface design simplifies board replacement procedures.

Diagnostic LED Indication

Eight red LEDs display the active status of each output channel. A green POWER LED confirms proper 5 V DC supply voltage. A yellow COMMUNICATION LED blinks during data exchange with the processor. The board also provides test points for oscilloscope measurements. These indicators aid rapid troubleshooting in the field.

Environmental Ratings and Durability

The board operates between -30°C and 65°C ambient temperature. It withstands 10% to 95% non-condensing humidity conditions. The assembly meets GE industrial standards for turbine control equipment. All components feature conformal coating for moisture protection. The robust design handles high vibration environments.
