Why This Driver Board Controls Your Contactors Reliably

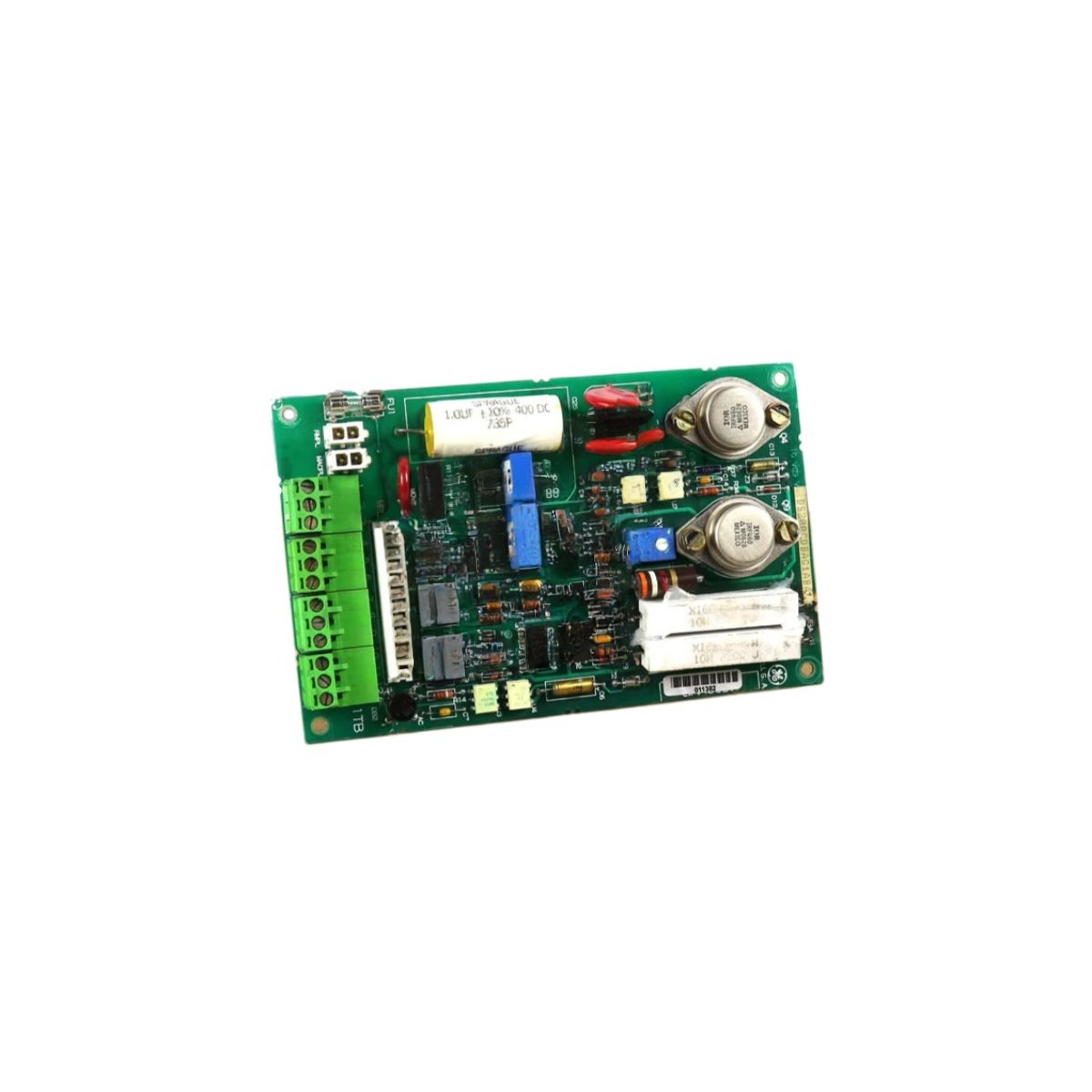

This contactor driver board energizes and de-energizes DC contactor coils. You get a dependable GE DS200CDBAG1A DS200CDBAG1ABA for industrial drive systems. It receives low-power signals from the main control board. Therefore, your system switches high-current contactors without placing load on the processor.
Technical Specifications and Physical Details
The GE DS200CDBAG1A DS200CDBAG1ABA features four independent contactor driver channels. Each channel supplies up to 3 amps of coil current at 24V DC. This board mounts onto the drive chassis near the contactor bank. Its dimensions measure approximately 240 mm in width and 170 mm in height. The unit weighs around 0.44 kg for straightforward installation. This driver board stores no configuration data internally. Instead, the main controller sends all on-off commands in real time. Consequently, you lose no settings during a board replacement.
Below is the detailed breakdown of the hardware specifications.
| Parameter | Specification |
|---|---|
| Product Model | DS200CDBAG1A DS200CDBAG1ABA |
| Product Type | Contactor Driver Board |
| Brand | GE (General Electric) |
| Number of Channels | 4 independent drivers |
| Coil Voltage | 24V DC |
| Max Coil Current | 3 A per channel |
| Input Interface | Low-level logic signals |
| Mounting Type | Chassis mount |
| Dimensions (W x H) | Approx. 240 x 170 mm |
| Approx. Weight | 0.44 kg |
| Energy Storage | None (real-time switching) |
| Component Count | Single populated PCB |
Installation and Wiring Notes
This board mounts close to the contactors for short wire runs. You must connect a flyback diode across each contactor coil. The GE DS200CDBAG1A DS200CDBAG1ABA requires proper heat sinking for continuous operation. Therefore, ensure adequate airflow around the driver transistors. Always verify coil current matches the driver rating before commissioning. Overload will overheat and destroy the output stage.
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 25 × 108 × 127 mm |
