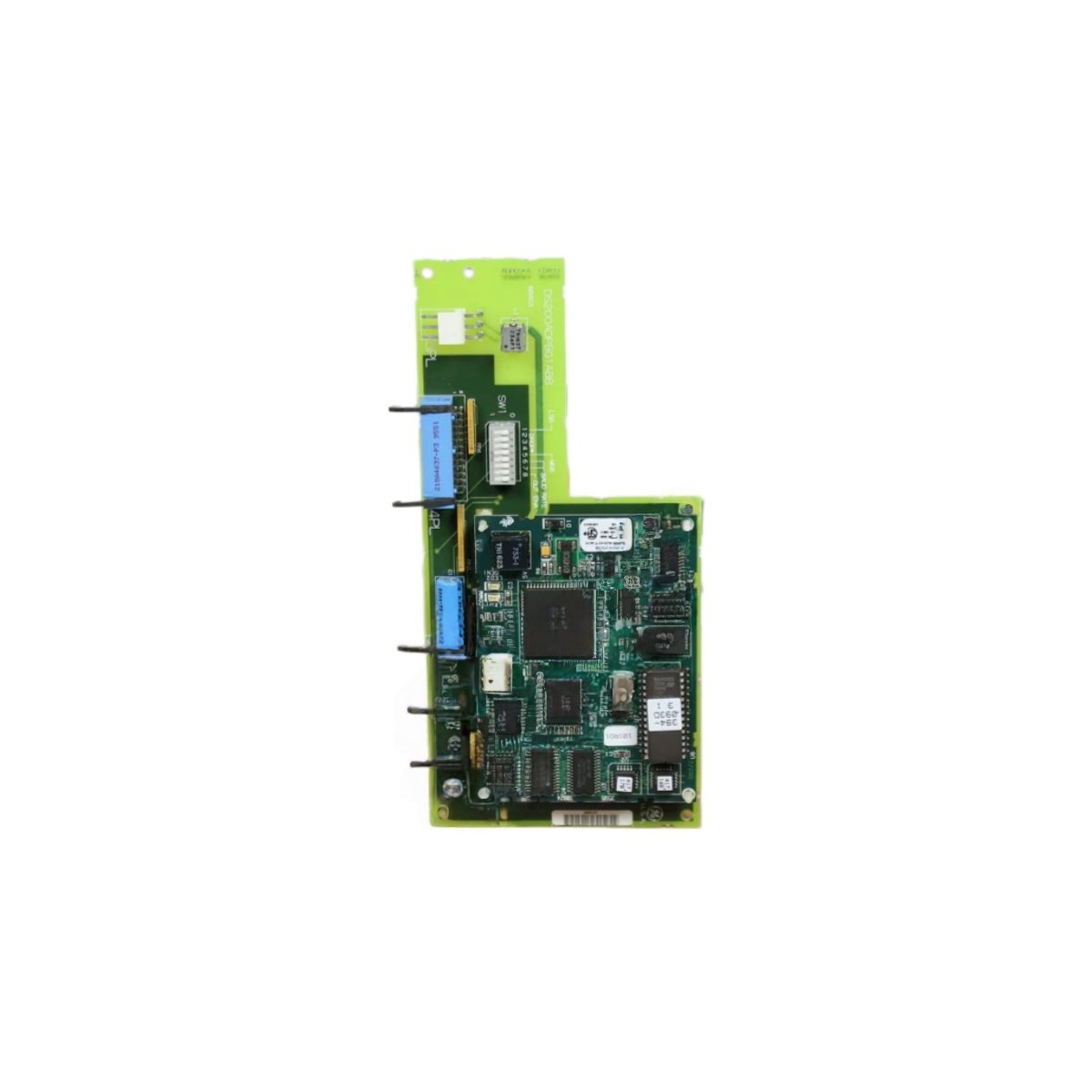

The GE DS200ADPBG1A DS200ADPBG1ABB connect Mark V turbine controllers to Genius I/O networks. These Genius I/O adapter boards handle data exchange with remote I/O blocks. You can use either board to monitor field devices without long wiring runs. The units provide seamless integration with GE Genius distributed I/O systems.

Network and Communication Specifications

The GE DS200ADPBG1A DS200ADPBG1ABB communicate with Genius I/O blocks at 153.6 kbps. These Genius I/O adapter boards support up to 31 devices on a single network. You can place I/O blocks up to 2,500 meters away using repeaters. The units provide 2500 VAC isolation between the bus and controller.

Physical Dimensions and Weight

Each Genius I/O adapter board weighs 0.35 kg for secure chassis mounting. The unit measures 235 mm long by 152 mm wide. Its PCB thickness reaches 1.6 mm with four internal copper layers. You can mount either board using four M4 screws through the designated holes.

Interface and Connection Points

A 5-pin female connector provides the Genius bus interface connection. A 50-pin ribbon cable header connects to the main turbine controller. The GE DS200ADPBG1A DS200ADPBG1ABB include a 4-pin power input for DC supplies. You will find six LED indicators showing bus status and communication activity. Additionally, eight test points provide access for diagnostic measurements.

Energy Storage and Internal Circuitry

These Genius I/O adapter boards store minimal energy for bus signal buffering. Six electrolytic capacitors provide 110 µF of total bulk storage. These capacitors filter power supply noise for the bus controller. The boards do not contain any battery for configuration retention. An onboard EEPROM stores network address and configuration settings permanently.

Component Layout and Construction

A dedicated Genius bus controller ASIC handles all protocol management. The board includes a line driver and receiver for twisted pair cable. You will find 68 resistors, 48 capacitors, and 8 integrated circuits on the board. The GE DS200ADPBG1A DS200ADPBG1ABB include transient suppression on the bus interface. A metal shield covers the transceiver section for electromagnetic interference reduction.

Variant Equivalence and Use

The GE DS200ADPBG1ABB represents a functional equivalent or later revision. Both versions share identical dimensions, connectors, and mounting hole locations. You can substitute one for the other without hardware modifications. Transitioning to these boards adds Genius I/O capability to Mark V systems. Use GE DS200ADPBG1A DS200ADPBG1ABB for remote monitoring in power generation applications. For best results, terminate the Genius bus with 100-ohm resistors at both ends.
