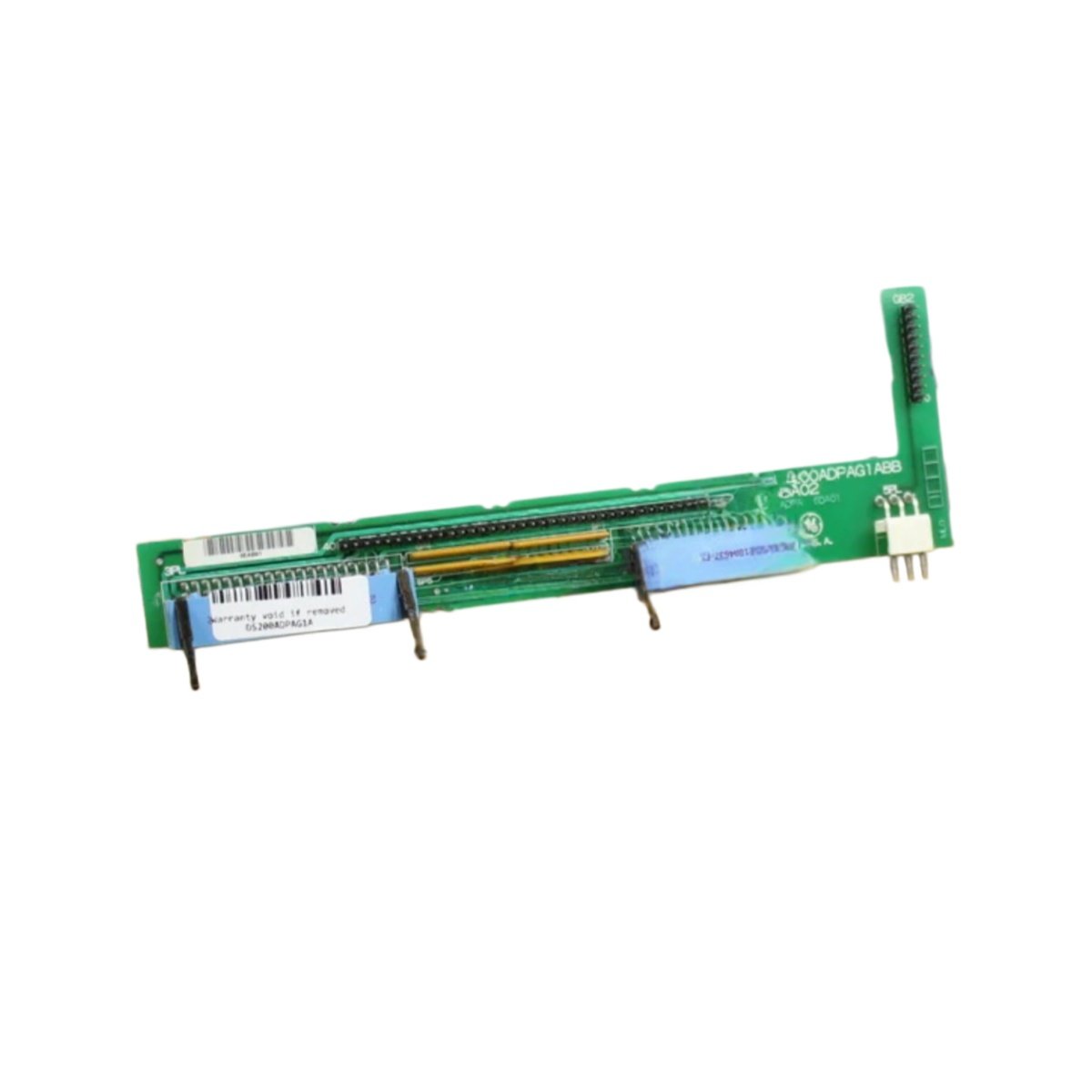

This adapter board connects external Genius devices to turbine controls. The DS200ADPAG1A translates serial data for processing by the main CPU. Its counterpart, the DS200ADPAG1ABB, uses identical communication protocols and circuitry. Both units belong to the Mark V series platform. Each board measures 10.5 inches in length. The width reaches 7.0 inches. Weight sits at approximately 0.9 kilograms.

Technical Specifications for DS200ADPAG1A DS200ADPAG1ABB

The DS200ADPAG1A provides one dedicated Genius communication channel. The DS200ADPAG1ABB shares the same transceiver and isolation barrier design. Each board contains two optical couplers for signal isolation. Energy storage relies on a 1000µF capacitor bank. This bank filters noise from incoming serial signals. The module operates with a nominal 24V DC supply. Baud rate reaches up to 153.6 kbps for data transfer. Two terminal blocks accept field wiring connections. Six diagnostic LED indicators show communication status and errors.

Key Features Table

The circuit board uses high-grade FR4 material for noise reduction. Moreover, it withstands ambient temperatures from -25°C to 60°C. You can mount this adapter vertically inside the drive cabinet. Furthermore, the optical couplers prevent ground loops between devices. Replacement requires no special configuration software for installation. Always verify termination settings before swapping either board. This component enables reliable Genius network integration. Consequently, it expands turbine control system I/O capabilities.
