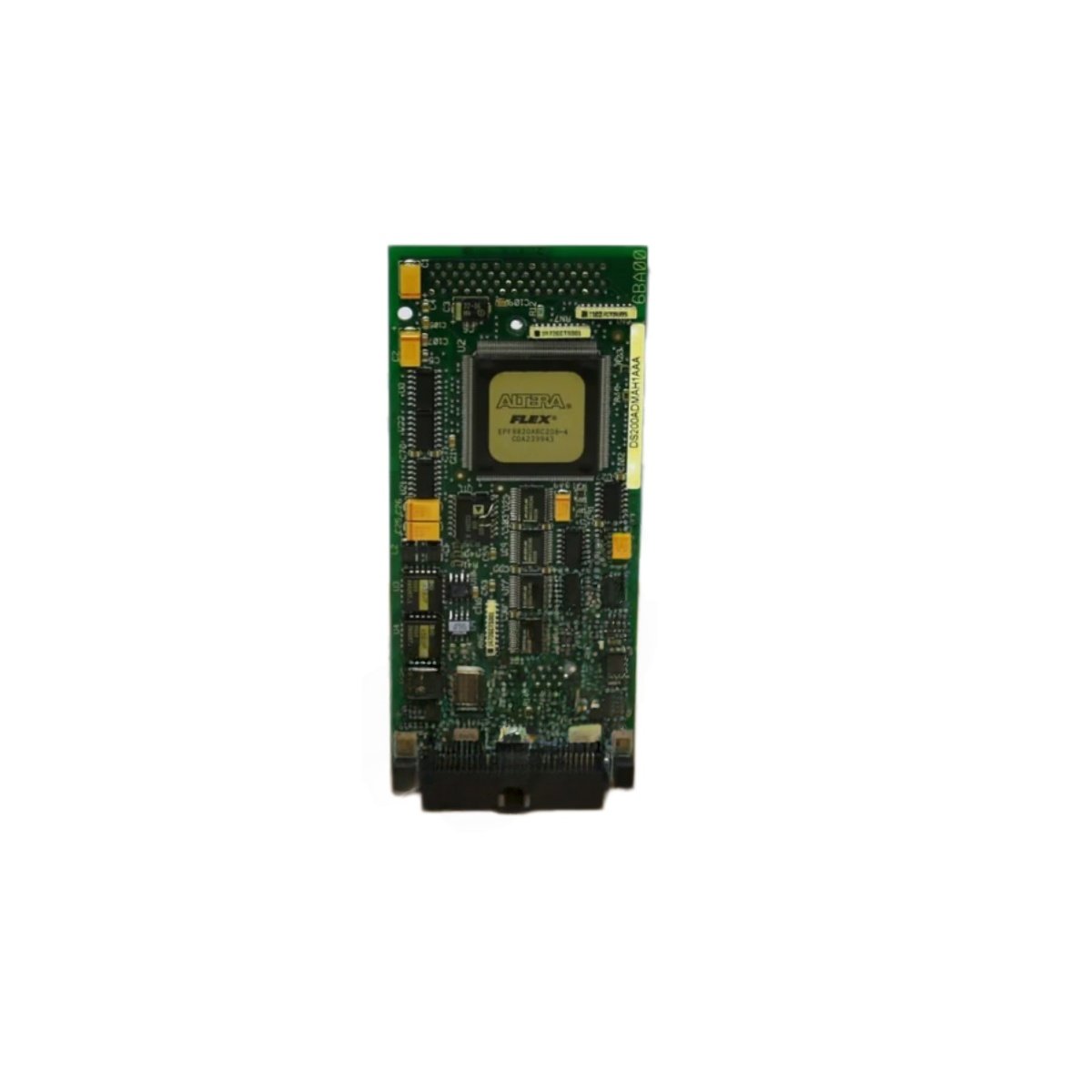

This digital analog daughterboard expands I/O capabilities in GE drive systems. It plugs directly into a main control board to add mixed I/O channels. The unit mounts as a secondary board on top of the main processor card.
Technical specifications
| Parameter | Specification |
|---|---|
| Brand | GE Energy |
| Model 1 | DS200ADMAH1A |
| Model 2 | DS200ADMAH1AAA |
| Product Family | Mark V / Drive Control |
| Category | Digital Analog Daughterboard |
| PCB Layer Count | 4 layers |
| Base Material | FR-4 flame retardant |
| Analog Inputs | 2 (two) channels |
| Analog Input Range | 0-10V or 4-20mA (selectable) |
| Analog Input Resolution | 12 bits |
| Analog Outputs | 2 (two) channels |
| Analog Output Range | 0-10V or 4-20mA |
| Analog Output Resolution | 12 bits |
| Digital Inputs | 4 (four) 24V DC |
| Digital Outputs | 4 (four) transistor, 0.1A |
| Connector Type | 2 x 50-pin stacking headers |
| Component Count | Approximately 85 components |
| Integrated Circuits | 10 ICs (ADC, DAC, optocouplers) |
| Power Supply | 5V DC from main board |
| Current Consumption | 100 mA typical |
| Status Indicators | None (no LEDs) |
| Energy Storage | None (no battery or capacitor) |
| Dimensions (L x W) | Approx. 15 cm x 10 cm |
| Thickness | Approx. 1.6 mm |
| Weight | Approx. 0.22 kg |
| Operating Temperature | 0°C to 55°C |
| Mounting | Stacking header (plugs into main board) |
Detailed Technical Analysis
This daughterboard adds two analog inputs and two analog outputs to the main control board. It also provides four digital inputs and four digital outputs for mixed I/O needs. The analog channels use 12-bit resolution for accurate signal conversion. You select voltage or current mode using jumper blocks on the board.
Now let us examine its integration features. The GE DS200ADMAH1A DS200ADMAH1AAA plugs directly into stacking headers on the main processor. It draws all its power from the 5V supply of the main board. Approximately 85 components populate both sides of this 4-layer PCB. Ten integrated circuits include analog-to-digital and digital-to-analog converters.
This daughterboard contains no batteries or capacitors for energy storage. The digital outputs drive small loads up to 0.1 amps at 24V DC. The digital inputs accept 24V DC signals from field sensors. The board requires no separate power connection or mounting hardware.
Installation and Connection Guidelines
You insert this daughterboard onto the main board’s stacking headers. Align the 50-pin connectors carefully before pressing firmly into place. The board sits parallel to the main board with standoffs for support. Connect field wiring to the main board’s terminal blocks that map to this daughterboard.
Configure the analog input and output ranges using the jumper blocks. The main board automatically detects the presence of this daughterboard upon power-up. Test all I/O channels before placing the drive into service. Always power down the system before inserting or removing this daughterboard.
Practical Applications
Engineers use this daughterboard for GE drive I/O expansion and enhancement. It adds analog and digital capability without occupying another rack slot. This component also works in legacy drive upgrade projects. Its compact stacking design saves valuable cabinet space.
Summary of Features
To conclude, this daughterboard provides 2 analog inputs, 2 analog outputs, and 8 digital I/O. It weighs 0.22 kilograms and draws power from the main board. Choose DS200ADMAH1A DS200ADMAH1AAA for reliable I/O expansion in drive systems.
