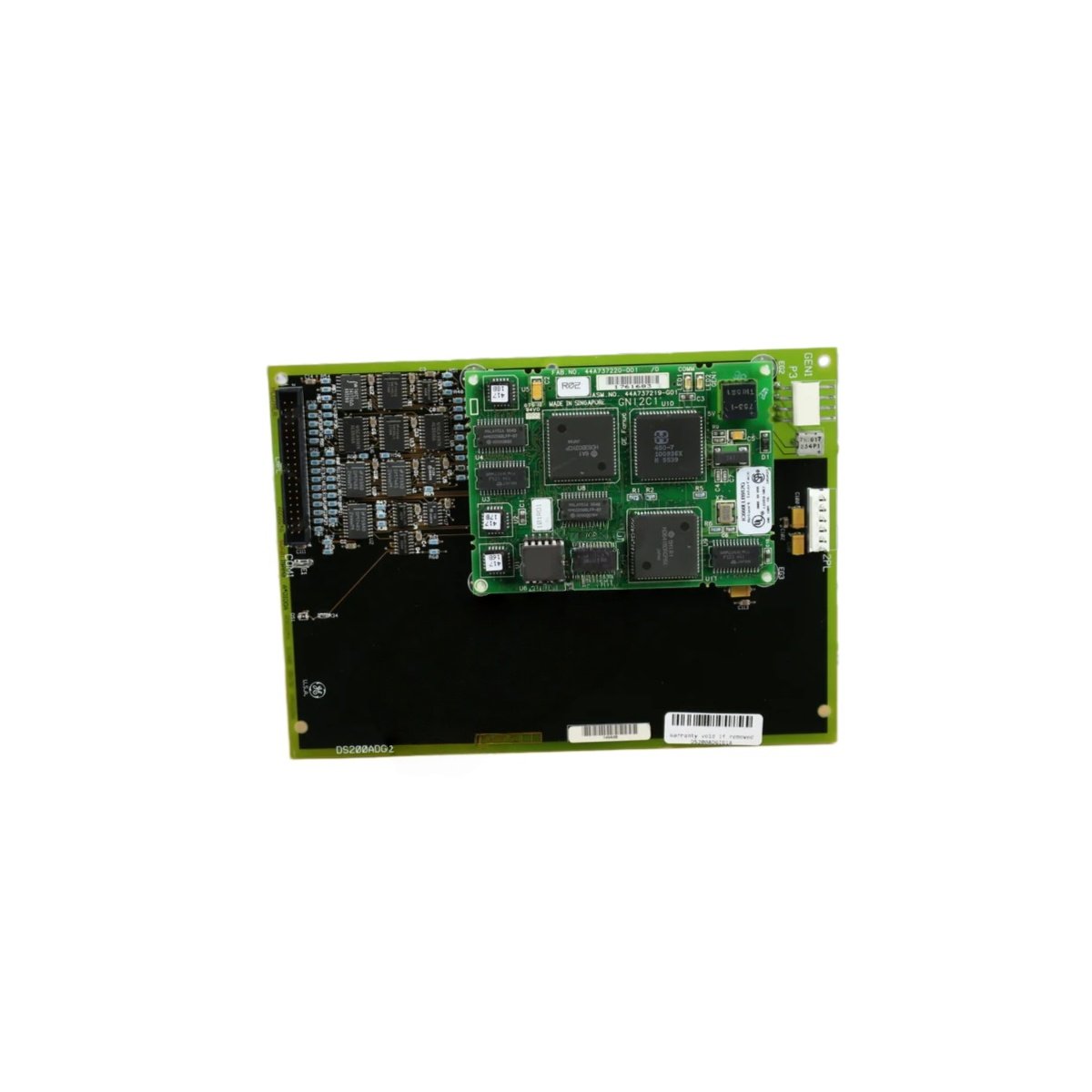

This board handles analog signal conversion for turbine control systems. The DS200ADGIG1A processes input from multiple field devices simultaneously. Its counterpart, the DS200ADGIG1AAA, shares the same circuit layout and components. Both units belong to the Mark V series platform. Each board measures 11.4 inches in length. The width reaches 7.2 inches. Weight sits at approximately 1.1 kilograms.

Technical Specifications for DS200ADGIG1A DS200ADGIG1AAA

The DS200ADGIG1A integrates eight analog input channels. The DS200ADGIG1AAA uses identical signal conditioning pathways. Each board contains four operational amplifiers for signal filtering. Energy storage relies on a 1000µF capacitor bank. This bank reduces electrical noise on the power rail. The module operates with a nominal 15V DC supply. Input signals range from 0 to 10 volts. Three terminal blocks provide secure field wiring connections. Six diagnostic LED indicators sit along the top edge. These lights show channel activity and power status.

Key Features Table

The circuit board uses high-grade FR4 material for excellent insulation. Moreover, it withstands ambient temperatures from -25°C to 65°C. You can mount this board directly into the drive rack. Furthermore, the PCB layout minimizes signal interference between adjacent channels. Replacement requires no special calibration tools for installation. Always verify jumper settings before swapping either board. This component improves analog measurement accuracy significantly. Consequently, it ensures reliable data acquisition for turbine control.
