Technical Specifications and Board Design

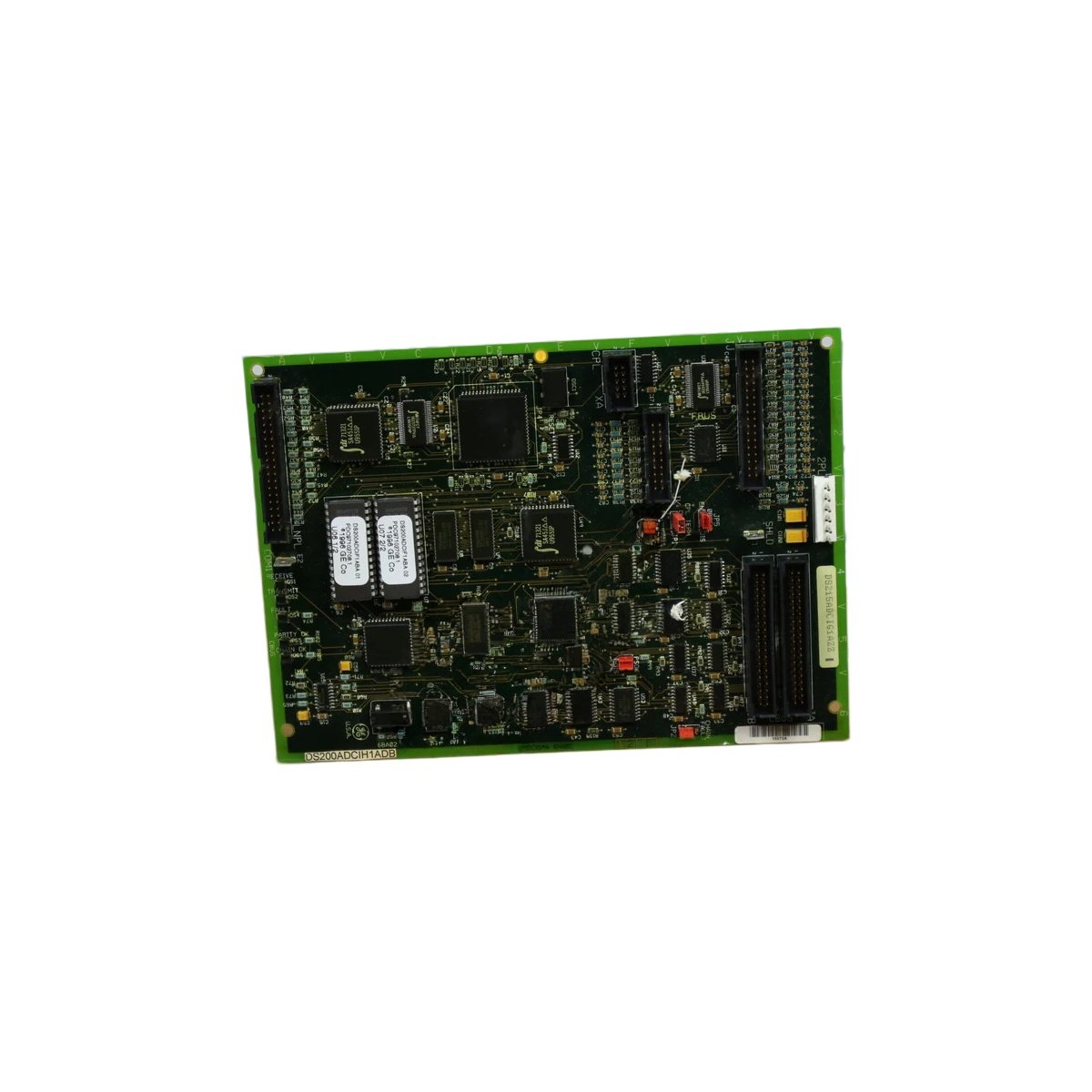

This Genius adapter board connects Mark V turbine controls to Genius I/O networks. The GE DS200ADCIH1A DS200ADCIH1ADB translates between backplane signals and Genius bus protocols. You can install this board into any standard Mark V rack slot position. Its compact design enables seamless integration with distributed I/O blocks. The board weighs approximately 0.52 kilograms. Its dimensions measure 28 cm in height, 18 cm in width, and 2.5 cm in depth.
| Parameter | Specification |
|---|---|
| Brand | GE Energy / General Electric |
| Model | DS200ADCIH1A DS200ADCIH1ADB |
| Category | Genius Adapter Board / Network Interface Card |
| Weight | 0.52 kg |
| Height | 28 cm |
| Length | 18 cm |
| Thickness | 2.5 cm |
| Network Protocol | Genius I/O (GE proprietary) |
| Communication Speed | 153.6 Kbps |
| Maximum Cable Length | 750 meters (shielded twisted pair) |
| Number of Genius Devices Supported | Up to 32 blocks per bus |
| Bus Topology | Bus or redundant bus (dual cable) |
| Backplane Interface | 32-bit parallel bus |
| Scan Rate | 10 milliseconds typical |
| Isolation Voltage | 1500V DC between bus and backplane |
| Energy Storage | None (no battery) |
| Component Count | Single PCB with Genius controller, bus drivers, and optocouplers |
Genius Network Communication and Protocol
The board manages all Genius bus communication for the Mark V controller. It polls I/O blocks and collects process data automatically. The GE DS200ADCIH1A DS200ADCIH1ADB detects network faults and initiates retries. It supports both simplex and redundant bus configurations for high availability. The board handles global data exchange between multiple Genius devices. A front-panel LED indicates bus activity and communication status. The board automatically recovers from temporary network interruptions without user intervention.
Redundancy and Fault Tolerance Features
The board supports dual Genius bus cables for critical turbine applications. It monitors both bus paths simultaneously for continuous operation. The GE DS200ADCIH1A DS200ADCIH1ADB switches to the secondary bus instantly upon primary failure. It reports all network diagnostics back to the turbine controller. The board maintains I/O data integrity through checksum verification on every message. A yellow LED illuminates when operating on the redundant backup bus. The board stores no configuration data independently.
Installation and Operational Guidelines
You must insert this board into a dedicated slot in the Mark V rack. The backplane supplies 5V DC power to the board automatically. The GE DS200ADCIH1A DS200ADCIH1ADB draws approximately 300 mA from the 5V supply rail. You must use shielded twisted-pair cable for all Genius bus connections. This cable must terminate at both ends with 120-ohm resistors. The board requires no external battery for normal network operation. You should verify the bus cable does not exceed 750 meters. Exceeding this length will cause communication timeouts and data loss.
