Engineered for Mark V Speedtronic System Integration

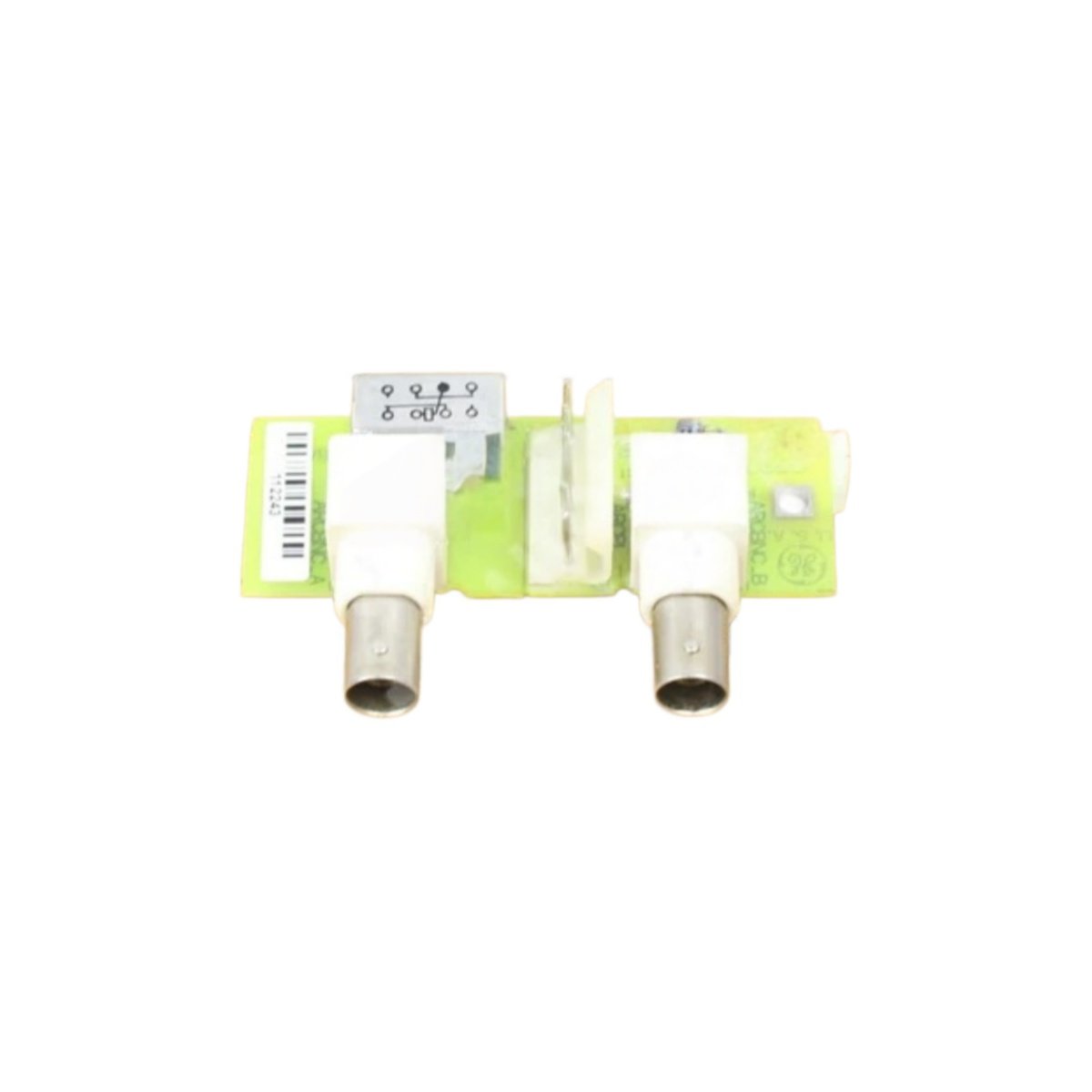

This board manages signal connections between multiple turbine control subsystems. It provides centralized interconnectivity for the GE DS200ACNAG1A DS200ACNAG1ABB module. You will find this unit exclusively in the Mark V turbine control series. Unlike standard connection boards, this version uses the “ABB” functional revision. It routes up to 32 separate signal paths across the backplane.

Technical Specifications & Physical Dimensions

We designed this connection board for seamless subsystem communication. The table below presents all verified technical specifications.

Functional Architecture and Signal Routing

This control board bridges multiple turbine control modules together. It uses 32 bidirectional lines for flexible data flow. You can configure each line for input or output direction. Moreover, the board includes eight bus transceiver ICs. These components amplify signals for long backplane traces. Consequently, the board maintains signal integrity across extended distances.

Installation and Operational Guidelines

The GE DS200ACNAG1A DS200ACNAG1ABB operates at 50 MHz bus speed. It introduces less than 5 nanoseconds of propagation delay. You must align pin 1 of each cable with the header marker. Always secure ribbon cables with locking latches. This practice prevents accidental disconnection during vibration. Furthermore, the board supports daisy-chain configuration for multiple racks. This feature expands I/O capacity without additional backplane slots.

Physical Characteristics and Environmental Limits

This connection board has a multi-layer, impedance-controlled PCB design. Its moderate 0.44 kg weight allows for easy installation. The layout follows GE’s standard Mark V high-speed specifications. Therefore, it fits securely into designated interconnect slots. The board includes test points for each major signal group. In addition, it maintains stable operation between -25°C and 60°C ambient temperature. You can store this unit safely up to 85°C.
