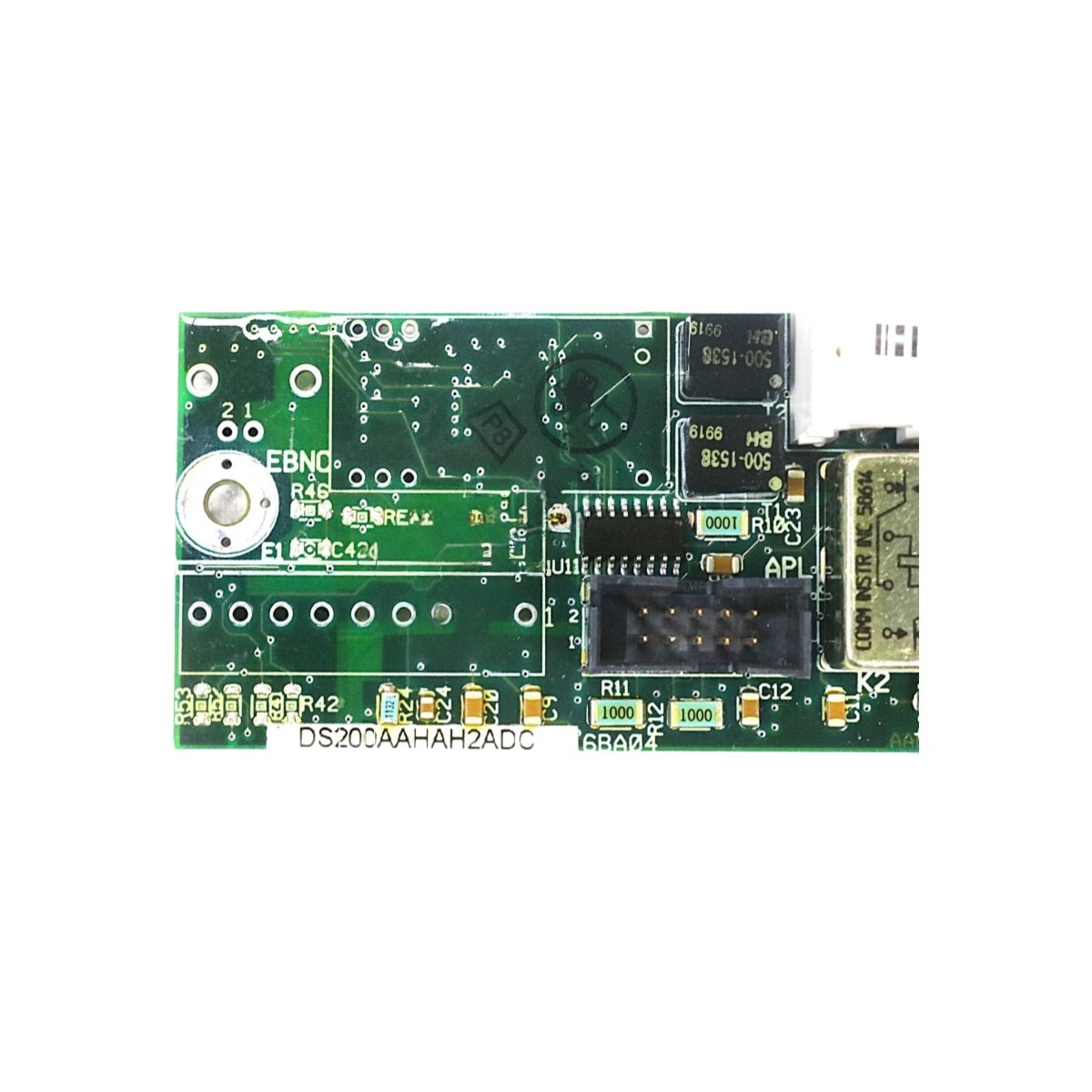

The complete model DS200AAHAH2A DS200AAHAH2ADC drives ARCNET communication for Mark V turbine systems. This board manages local area network traffic between control components. It ensures reliable data exchange for LM6000 and similar gas turbine applications.

Technical Specifications

Network Communication Features

DS200AAHAH2A DS200AAHAH2ADC connects four ARCNET nodes simultaneously. Its two driver chips boost LAN signal integrity across distances. Eight capacitors stabilize voltage during high data transfers. The board resides in R1 Core location 3. This placement minimizes signal reflection in the network.

Four ports handle bi-directional data flow efficiently.  regenerates incoming packets before retransmission. It also isolates faulty nodes from the main network. This driver board reduces collision errors on the ARCNET bus. The hub design ensures continuous communication even with partial failures.

Operational Integration

This LAN driver board works with the main turbine controller seamlessly. It prioritizes time-critical data for fuel and speed controls. DS200AAHAH2A DS200AAHAH2ADC monitors network health continuously. Only three ports see active use in typical configurations. The fourth port remains available for future node additions.

Physical and Installation Notes

Manufacturers reference manual GEH-6188 for all installation steps. Each DS200AAHAH2A DS200AAHAH2ADC unit undergoes full functional testing. We clean every board before final shipment. The secondary code DS200AAHAH2ADC appears on the factory label. This board weighs approximately 0.95 pounds for easy handling.
