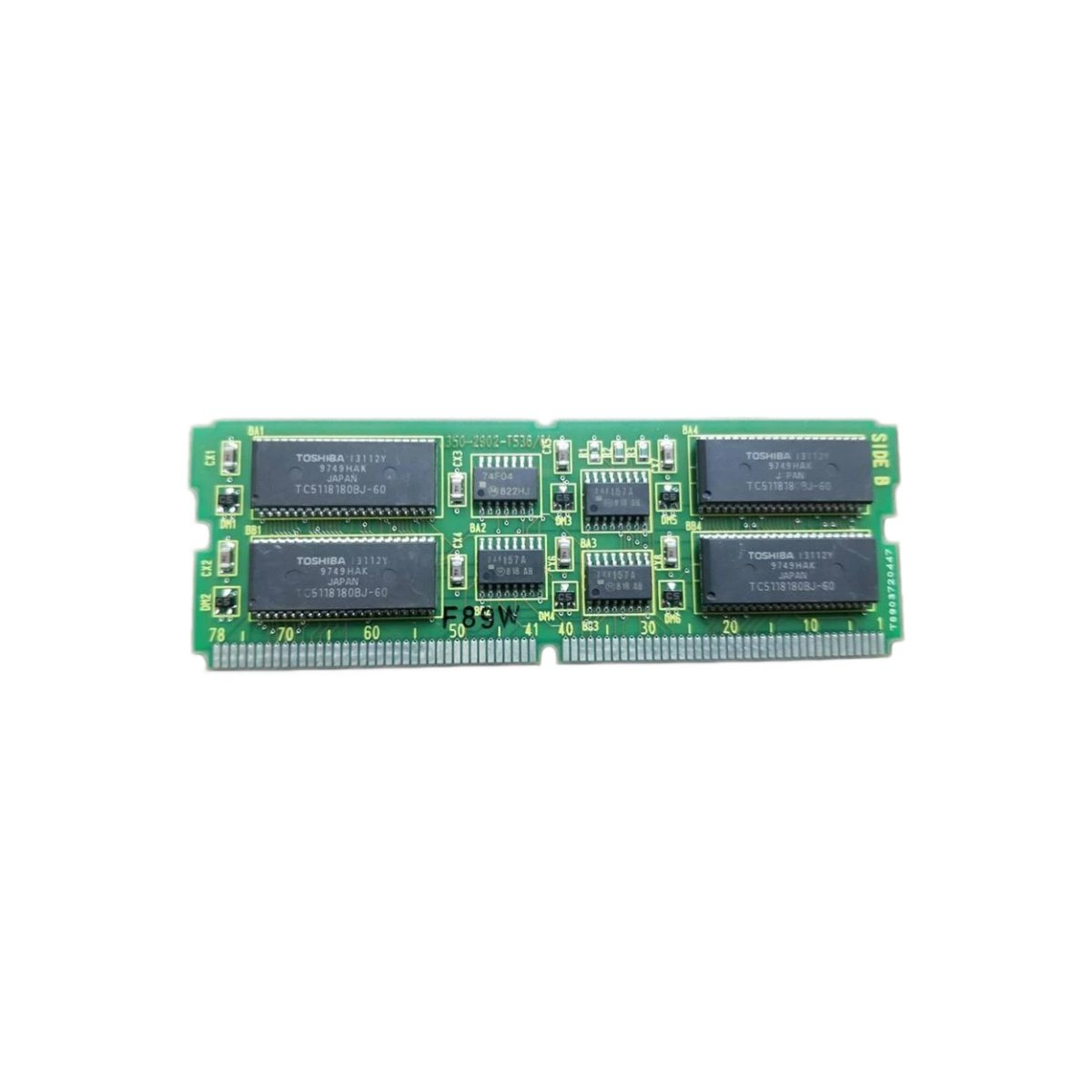

The GE A20B-2902-053 DRAM memory module expands working memory within GE Fanuc CNC control platforms. Engineers install this board to support larger part programs and faster data processing. Consequently, it serves machine tools, turning centers, and machining operations.

Technical Specifications and Hardware Details

This module occupies a dedicated socket on a compatible GE Fanuc control board. It measures roughly 130 mm long, 40 mm wide, and 10 mm thick, while it weighs about 0.08 kg. Moreover, the board carries a standard pin connector for direct socket mounting.

Functional Capabilities and System Integration

The module provides working memory while it supports real-time program execution. Meanwhile, the pin interface links it directly to the host CPU board. Expanded capacity handles larger programs, therefore machinists run complex parts without memory limits.

Additionally, the design allows memory upgrades through simple module replacement. As a result, technicians boost capacity without replacing the entire control board. Clear labeling helps maintenance crews confirm capacity and compatibility quickly. The compact board also fits existing sockets for straightforward field installation.

Installation and Maintenance Guidelines

Technicians should ground themselves before they handle the A20B-2902-053 module. Afterward, aligning the pin connector carefully prevents bent pins and contact faults. Verifying system memory recognition confirms successful installation. Finally, consult GE documentation for compatible control boards and memory configuration limits.
