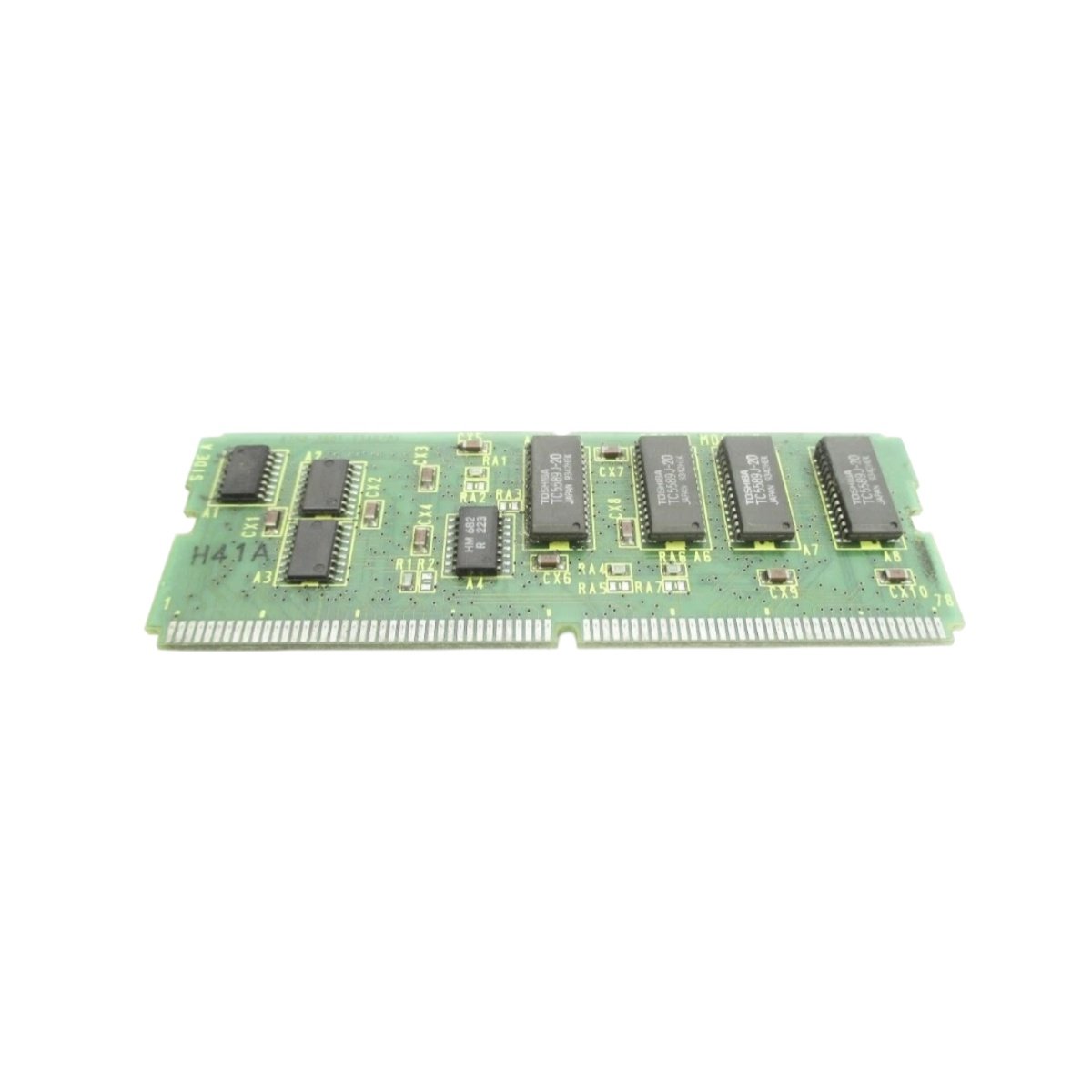

The A20B-2901-0340/01A manages servo axis control within GE Fanuc CNC and drive assemblies. This module measures roughly 10.2 inches long, 1.2 inches wide, and 6.3 inches high. Moreover, it weighs about 1.4 pounds, which suits rack-based mounting. Engineers rely on the A20B-2901-0340/01A for precise motion commands in machining centers.
Technical Specifications and Interface Details
The unit controls multiple servo axes and processes feedback from encoders and resolvers. Specifically, it supports pulse-width modulation output for smooth motor drive. Additionally, the module handles position, velocity, and torque control loops. A high-density backplane connector links it to the CNC controller.
| Parameter | Specification |
|---|---|
| Module Type | Servo Control |
| Axes | Multi-axis control |
| Feedback | Encoder and resolver inputs |
| Output | PWM drive signals |
| Dimensions | 10.2 x 1.2 x 6.3 in |
| Weight | ~1.4 lbs |
| Interface | Backplane connector |
| Control Loops | Position, velocity, torque |
Energy Storage and Motion Stability
Internal capacitors on the A20B-2901-0340/01A provide local energy storage for stable control voltages. Consequently, the module suppresses ripple that could disturb servo positioning accuracy. This buffering supports smooth acceleration and deceleration profiles. The design therefore maintains consistent motion quality during demanding cutting cycles.
Installation and Compatibility Notes
Because the A20B-2901-0340/01A fits standard GE Fanuc racks, technicians complete swaps quickly. They should verify connector alignment before applying power to the system. Furthermore, diagnostic LEDs reveal fault codes during commissioning and troubleshooting. Always store spare modules in anti-static packaging to protect delicate circuitry.
