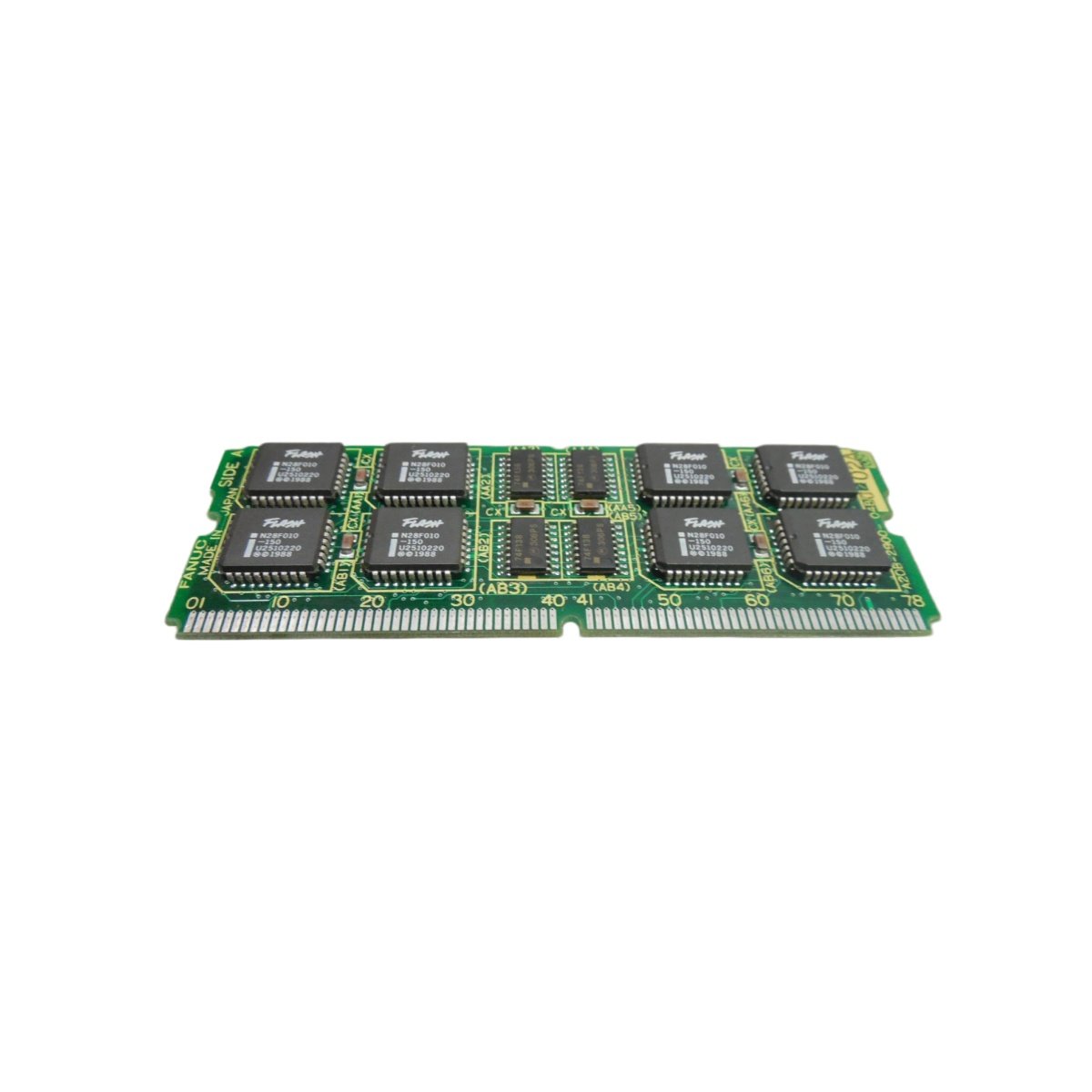

The GE A20B-2900-0480/02A flash ROM memory module stores firmware and system parameters within GE Fanuc CNC control platforms. Engineers install this board to preserve critical program data and machine configuration settings. Consequently, it serves machine tools, robotics cells, and factory automation operations.

Technical Specifications and Hardware Details

This module occupies a dedicated slot on a compatible GE Fanuc control board. It measures roughly 120 mm long, 80 mm wide, and 15 mm thick, while it weighs about 0.1 kg. Moreover, the board carries a standard pin connector for direct socket mounting.

Functional Capabilities and System Integration

The module holds firmware code while it stores machine parameters and configuration data. Meanwhile, the pin interface links it directly to the host CPU board. Non-volatile flash technology retains data, therefore content survives complete power loss.

Additionally, the design allows firmware upgrades through standard programming tools. As a result, technicians update machine software without replacing hardware. The compact board also fits existing sockets for straightforward field replacement. Stable data retention supports long-term operation in harsh plant environments.

Installation and Maintenance Guidelines

Technicians should ground themselves before they handle the A20B-2900-0480/02A module. Afterward, aligning the pin connector carefully prevents bent pins and contact faults. Verifying stored parameters confirms successful installation and data integrity. Finally, consult GE documentation for firmware versions and compatible control boards.
