Motion Control PCB for GE Fanuc CNC and Drive Systems

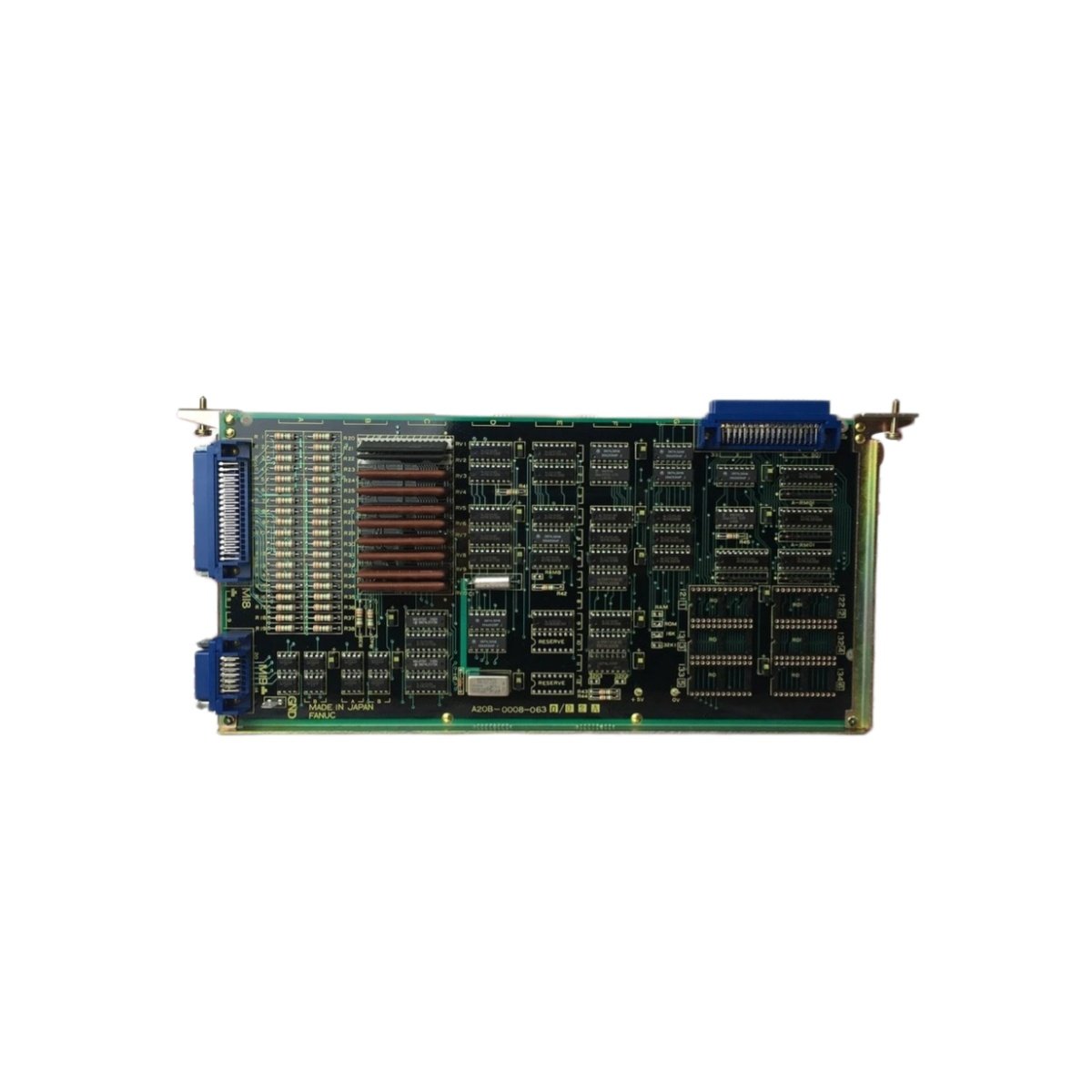

The A20B-0008-0630 serves as a programmable controller board within GE Fanuc’s CNC and drive hardware family. Engineers deploy this printed circuit board to manage axis logic and machine sequencing tasks. Consequently, the board delivers dependable control processing for legacy machine tools and automation equipment. Its robust design also supports continuous operation in harsh shop-floor conditions.

Technical Specifications

Board Function and Architecture

This controller board processes machine logic and axis command signals within the host CNC system. It communicates with other boards through the backplane edge connector. Therefore, the A20B-0008-0630 coordinates motion commands with spindle and feed operations. Onboard logic circuits also handle interrupt requests and timing signals for synchronized axis movement.

System Integration

Engineers install this board into designated slots within GE Fanuc control cabinets. The backplane interface carries both signal and power connections. Additionally, the board supports integration with servo amplifiers and I/O modules from the same hardware family. Careful alignment during insertion prevents damage to the edge connector pins.

Compatibility and Service Notes

Operators use this board across CNC machining centers, lathes, and milling machines. Engineers must verify the exact model number against system documentation before ordering. Furthermore, the A20B-0008-0630 suits repair and replacement projects where original boards have failed. Qualified technicians should handle all installation work with proper ESD precautions. Periodic inspection of connector contacts also helps maintain reliable long-term performance.
