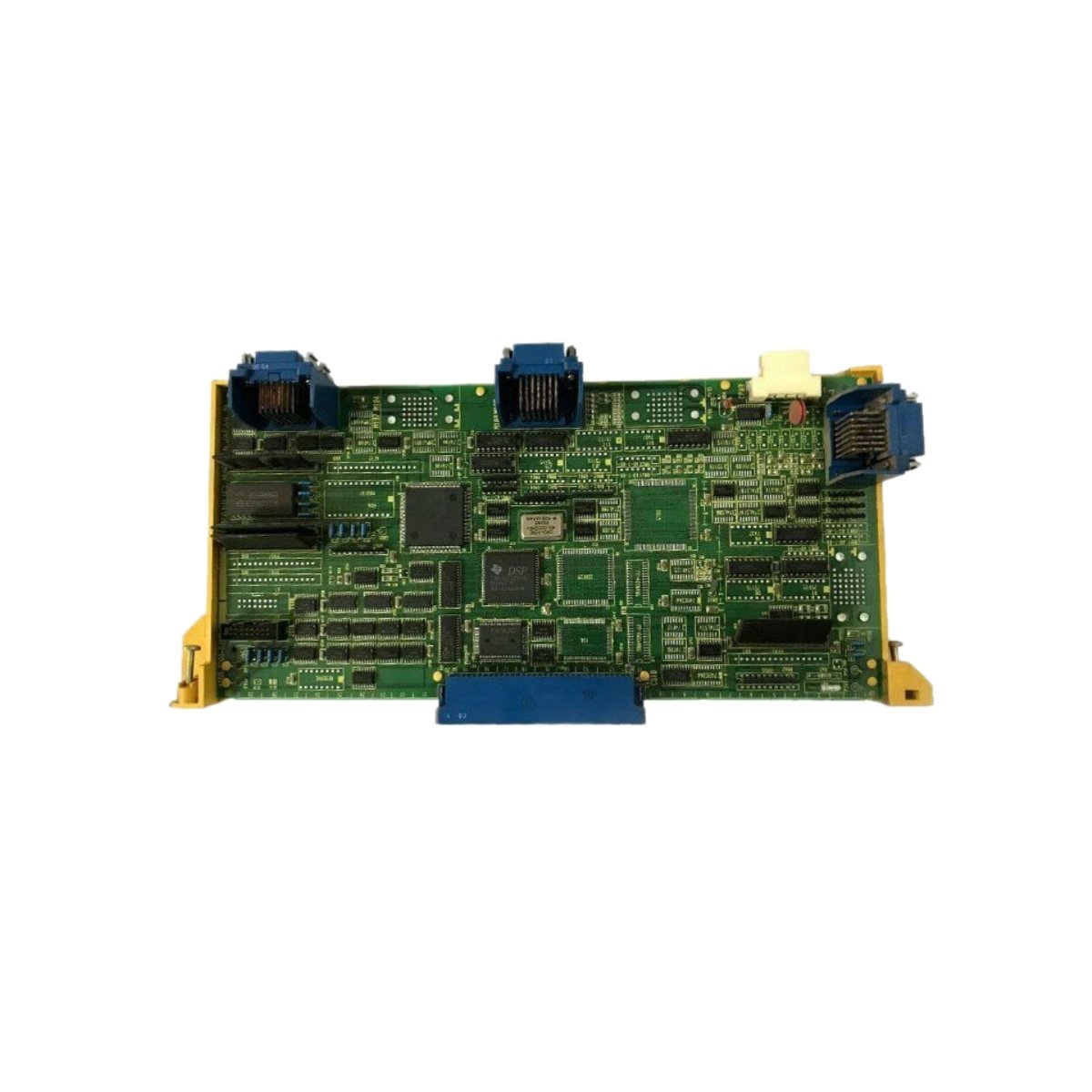

The GE A16B-2200-0390/11B axis control module manages motion commands for up to four servo axes within GE Fanuc CNC platforms. Engineers install this board to coordinate positioning, feed rates, and interpolation tasks. Consequently, it serves machining centers, lathes, grinders, and robotics cells.

Technical Specifications and Hardware Details

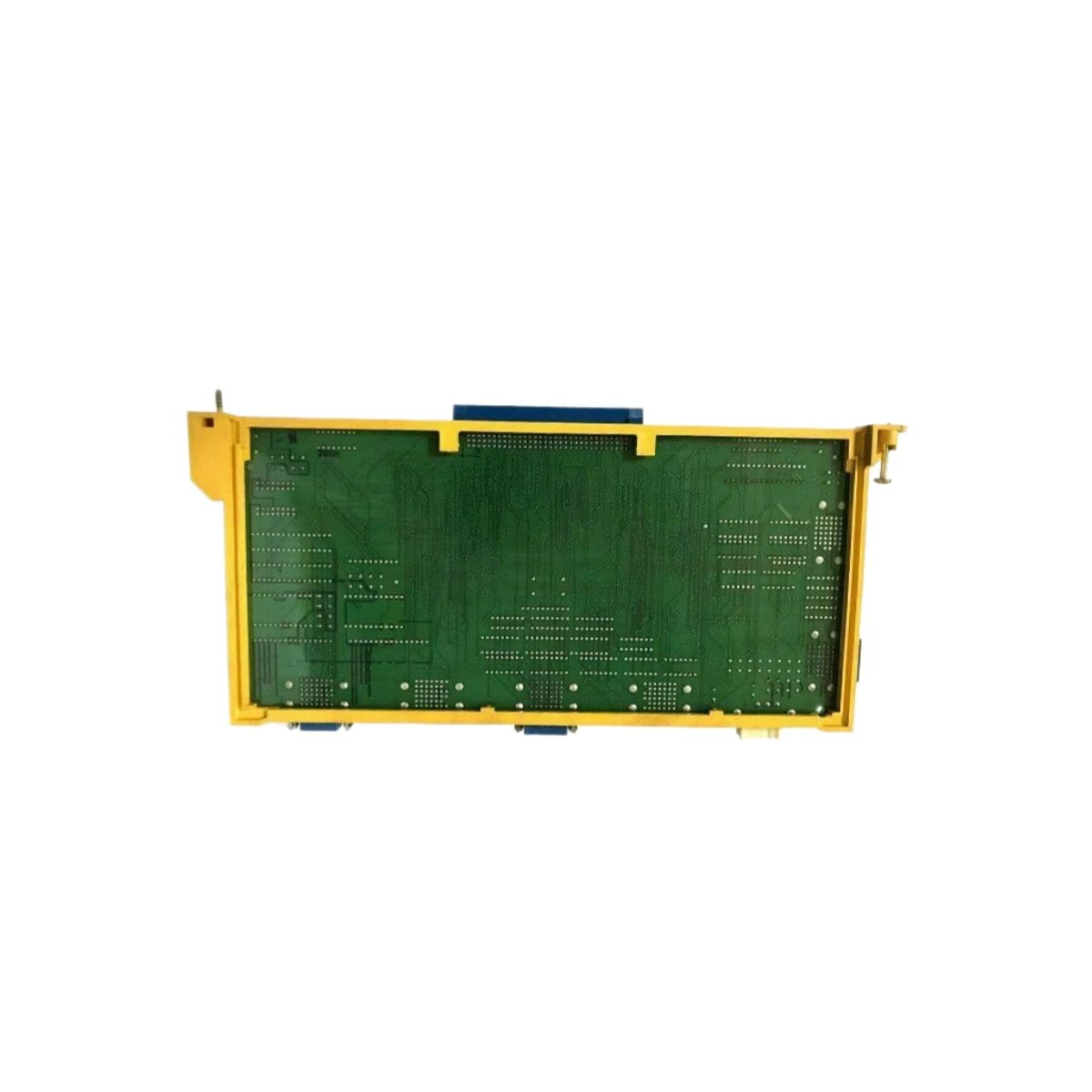

This module occupies a dedicated slot inside a compatible GE Fanuc control rack. It measures roughly 280 mm long, 180 mm wide, and 25 mm thick, while it weighs about 0.6 kg. Moreover, the board carries axis feedback connectors and a backplane interface.

Functional Capabilities and System Integration

The board processes motion commands while it reads position feedback from each servo axis. Meanwhile, the backplane connector links it to the main CPU and control bus. Dedicated feedback connectors accept encoder signals, therefore the system maintains precise positioning.

Additionally, the design supports linear and circular interpolation across multiple axes simultaneously. As a result, operators achieve smooth tool paths and accurate cutting performance. Clear connector labeling helps technicians trace axis wiring during setup. Forced air cooling keeps components within safe thermal limits.

Installation and Maintenance Guidelines

Technicians should power down the rack before they insert the A16B-2200-0390/11B module. Afterward, verifying feedback connections confirms reliable position data from each axis. Periodic inspection of encoder cables prevents signal loss and positioning errors. Finally, consult GE documentation for axis tuning and parameter configuration.
