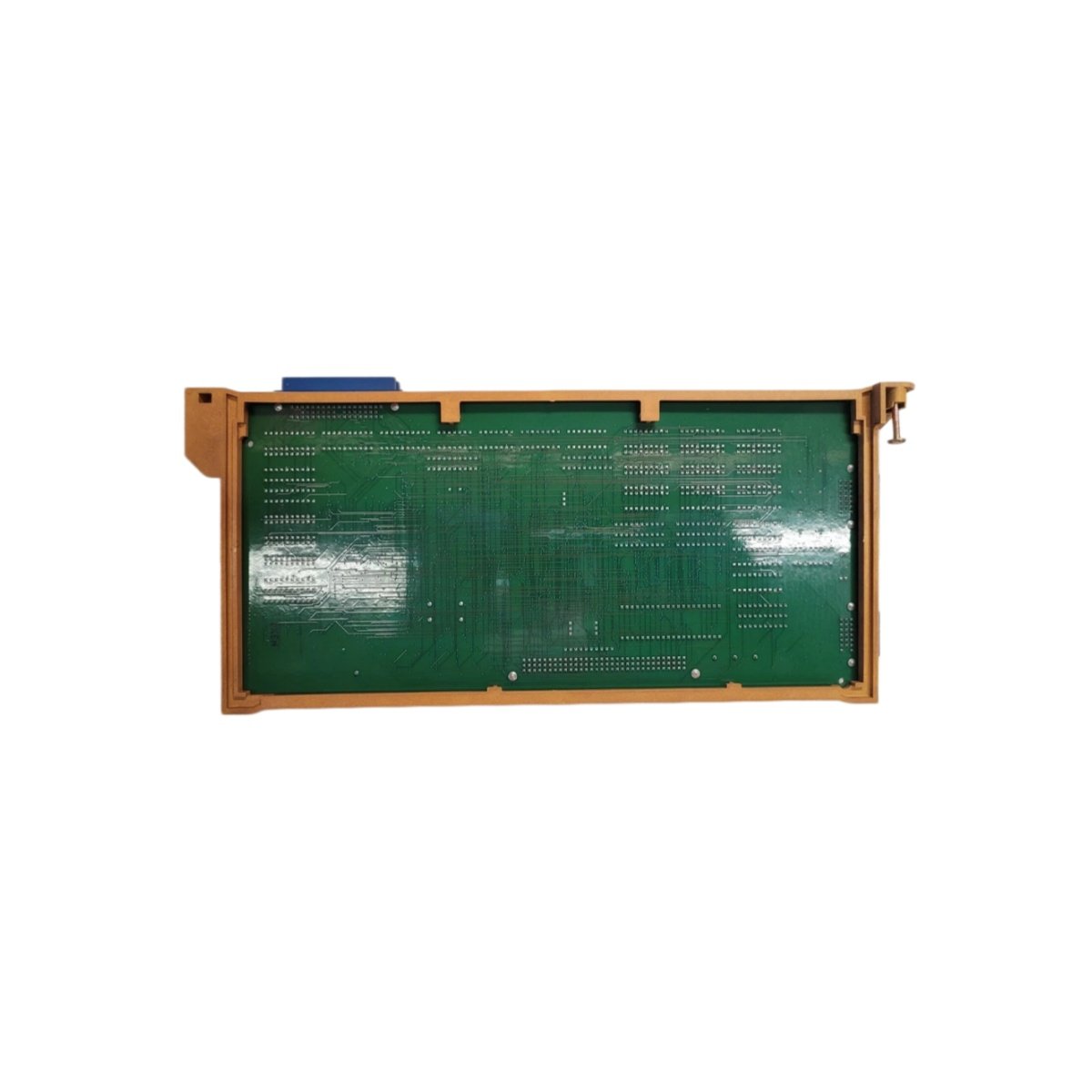

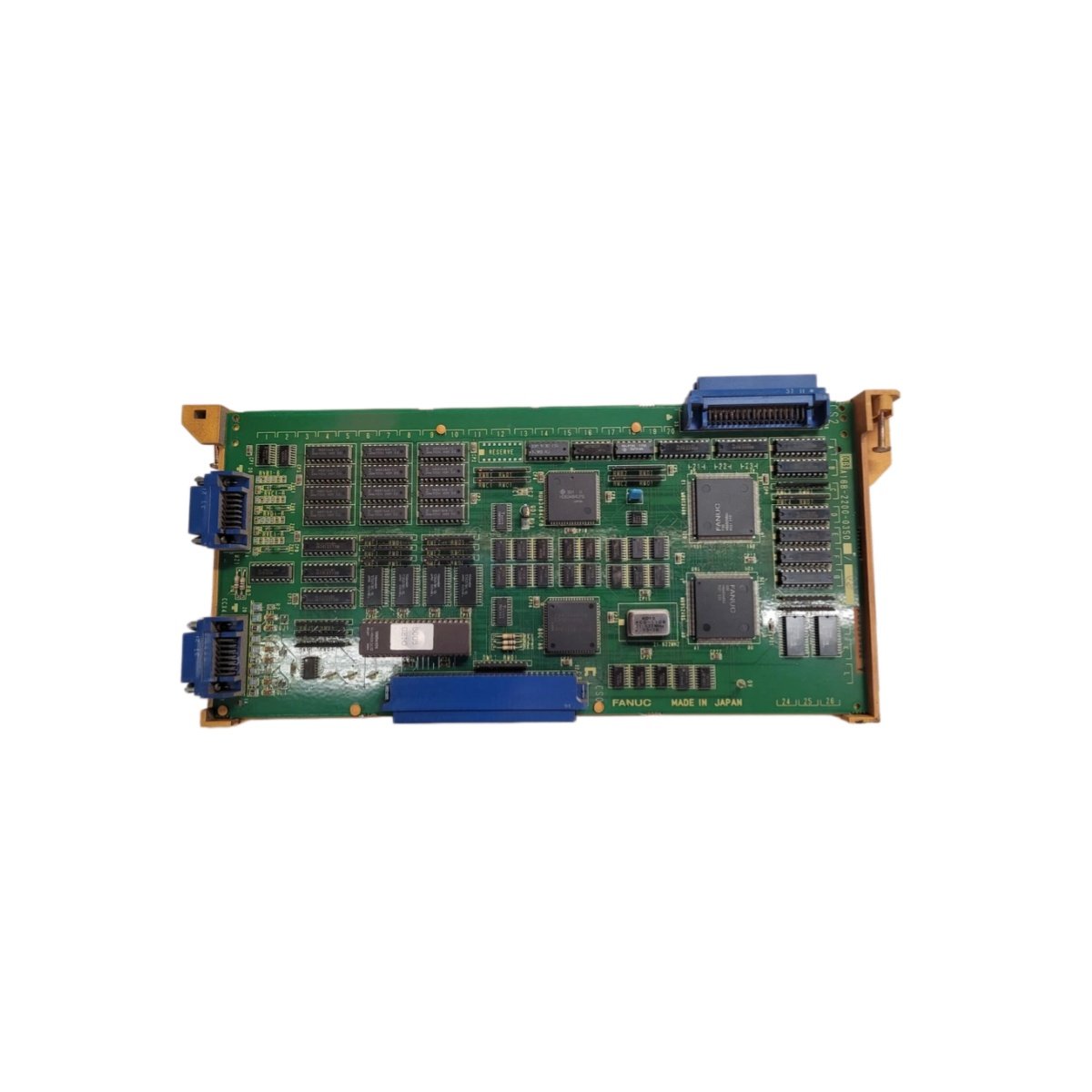

The A16B-2200-0350/06A generates display output inside GE Fanuc CNC control assemblies as a dedicated graphic module. This board measures roughly 11.8 inches long, 1.0 inch wide, and 6.7 inches high. Moreover, it weighs about 1.3 pounds, which suits standard rack installation. Engineers specify the A16B-2200-0350/06A when they need dependable screen rendering on the machine operator panel.
Technical Specifications and Interface Details
The board processes graphic data and therefore drives the CNC display with position, program, and alarm screens. Specifically, it carries dedicated video circuitry and display memory. Additionally, multiple connector headers link the board to the host backplane. Front-panel LEDs reveal run and fault status during service.
| Parameter | Specification |
|---|---|
| Module Type | CNC Graphic Module |
| Function | Display rendering and video output |
| Dimensions | 11.8 x 1.0 x 6.7 in |
| Weight | ~1.3 lbs |
| Connectors | Backplane headers and video output |
| Indicators | Run and fault LEDs |
| Mounting | FANUC CNC rack |
| Application | Operator panel display |
Energy Storage and Display Stability
Internal capacitors on the A16B-2200-0350/06A provide local energy storage for stable video voltages. Consequently, the board suppresses ripple that could disturb screen clarity. This buffering supports flicker-free rendering during demanding machining cycles. The design therefore maintains consistent display quality across long service intervals.
Installation and Compatibility Notes
Because the A16B-2200-0350/06A slides into standard GE Fanuc racks, technicians complete replacement quickly. They should verify connector alignment before they apply power to the system. Furthermore, routine inspection of edge contacts prevents intermittent display faults. Always store spare boards in anti-static packaging to protect sensitive components.
Details
| Weight | 1.5 kg |
|---|---|
| Dimensions | 278 × 194 × 42 mm |
