The A16B-1212-0731 operates as an EMG control PCB board within GE Fanuc CNC control systems. This board manages emergency stop signals, safety interlocks, and drive shutdown commands. Consequently, maintenance teams gain a dependable safety component for aging machining equipment.

Technical Specifications Overview

The A16B-1212-0731 combines a compact PCB footprint with rugged industrial construction. Moreover, its parameter set helps engineers plan slot placement and cable routing accurately.

Interface and Connection Details

The A16B-1212-0731 connects through a backplane connector and edge contacts. Therefore, it exchanges safety signals quickly with the host CNC unit. The single-board layout reduces connector count and simplifies replacement work. In addition, the board draws 5 V DC directly from the card cage power rail.

Physical Characteristics and Installation

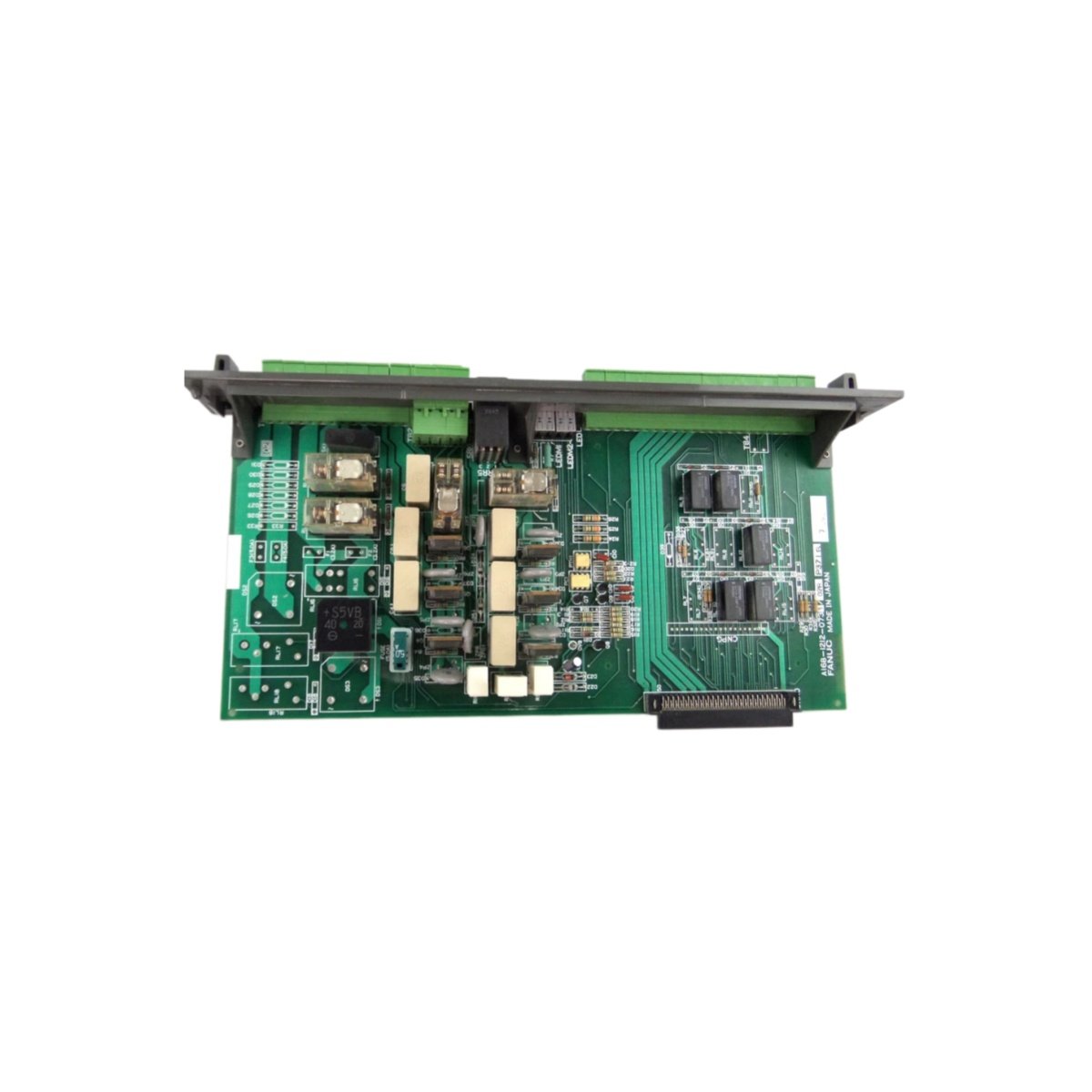

This circuit board measures roughly 200 mm wide and 150 mm high. Furthermore, its 20 mm depth fits standard card cage slots. The A16B-1212-0731 weighs about 0.3 kg. Consequently, installation requires no lifting tools or special fixtures. Technicians align the edge contacts, then press the board firmly into the slot.

Operational Role and Maintenance

Engineers apply the A16B-1212-0731 for emergency stop handling, interlock monitoring, and drive protection tasks. Meanwhile, front-panel LEDs show live board status during troubleshooting. The board holds no battery or capacitor for energy storage. Thus, it avoids periodic cell replacement work. Instead, it relies entirely on the backplane for power.
