Overview

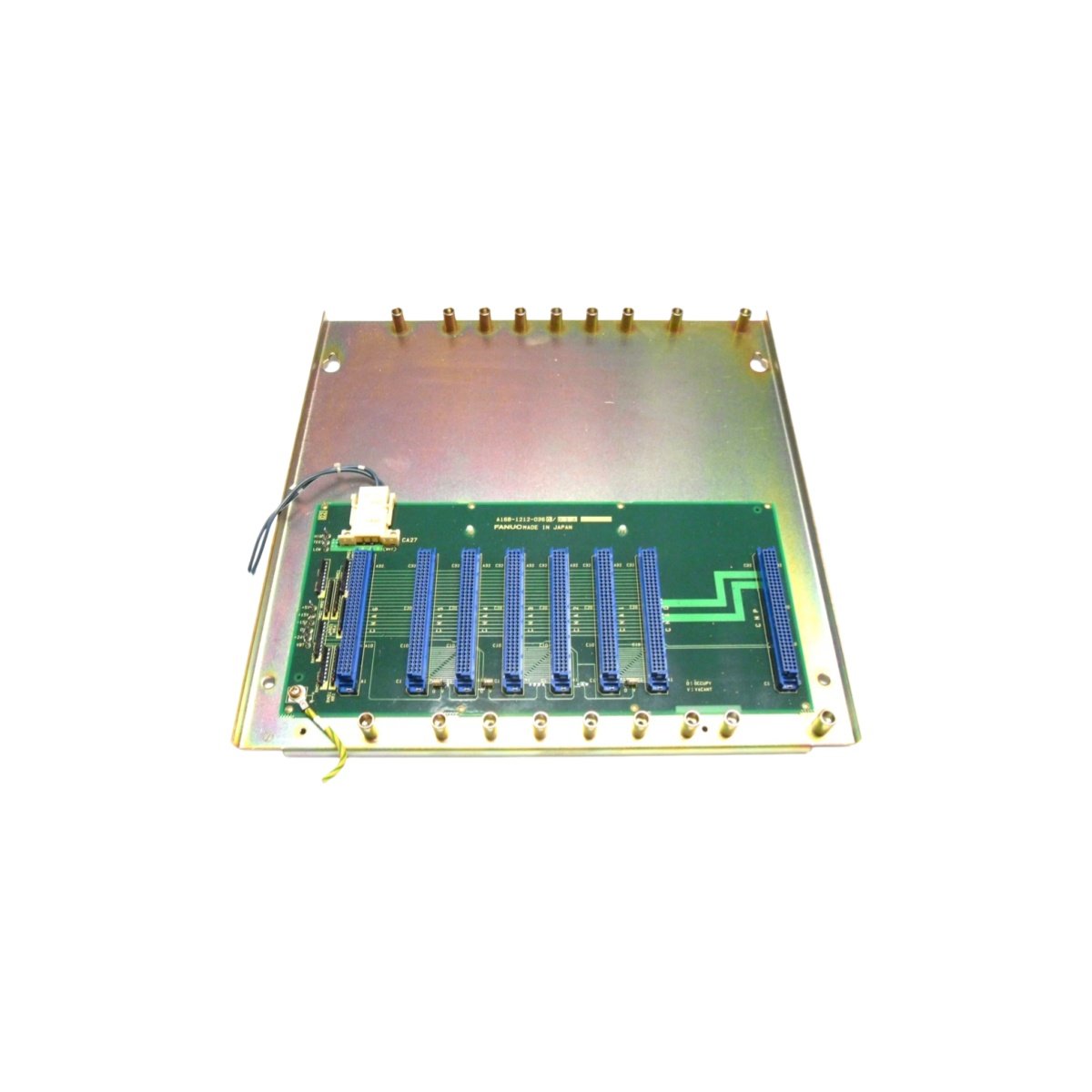

The A16B-1212-0360/01A belongs to the GE Fanuc family of robot control rack bases. Engineers deploy this base unit to house and interconnect up to eight I/O modules inside a robot controller. Consequently, it provides the physical backbone and backplane connections for the control station.
Key Technical Specifications
The A16B-1212-0360/01A offers eight module slots with integrated backplane connections. Moreover, it supports I/O and interface modules used in robot control systems. The table below lists the core parameters.
| Parameter | Specification |
|---|---|
| Product Type | 8-slot I/O robot rack base |
| Series | GE Fanuc robot control |
| Module Slots | 8 slots |
| Backplane Voltage | 5 VDC and 24 VDC |
| Bus Type | Parallel backplane bus |
| Module Compatibility | GE Fanuc I/O and interface modules |
| Mounting | Panel or rack mount |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | –20 °C to +65 °C |
| Humidity | 5–95%, non-condensing |
| Dimensions | 420 mm × 130 mm × 145 mm |
| Weight | Approximately 2.0 kg (4.4 lb) |
| Terminal Type | Screw-type field terminals |
| Compliance | CE, UL |
Installation and Interface Details
The base unit mounts on a panel or inside a robot controller cabinet. Modules then slide into the eight slots and engage the parallel backplane bus. Furthermore, screw-type field terminals accept wiring from sensors and actuators. As a result, technicians build or expand a robot I/O station without custom wiring harnesses.
Power Distribution and Backplane
The backplane delivers 5 VDC and 24 VDC to every installed module. Meanwhile, the power supply module occupies one slot and feeds the entire rack. Additionally, the parallel bus handles high-speed data exchange between the controller and I/O modules. Therefore, the base unit supports fast scan times in demanding robot applications.
Environmental and Mechanical Ratings
The base unit operates from 0 °C to +55 °C in typical factory conditions. Moreover, the rigid frame resists vibration and mechanical stress. The compact footprint of 420 mm × 130 mm × 145 mm fits standard enclosures. Consequently, the unit suits robotic welding cells, assembly lines, and material handling systems.
Why Engineers Choose This Base Unit
This base unit offers several practical advantages. First, it holds eight modules in a single rack. Second, its backplane simplifies power and data distribution. Third, the screw terminals speed up field wiring. Therefore, maintenance teams reduce cabinet space and installation time.
Details
| Weight | 1.5 kg |
|---|---|
| Dimensions | 278 × 194 × 42 mm |
