Digital Input/Output PCB for GE Fanuc CNC Control Systems

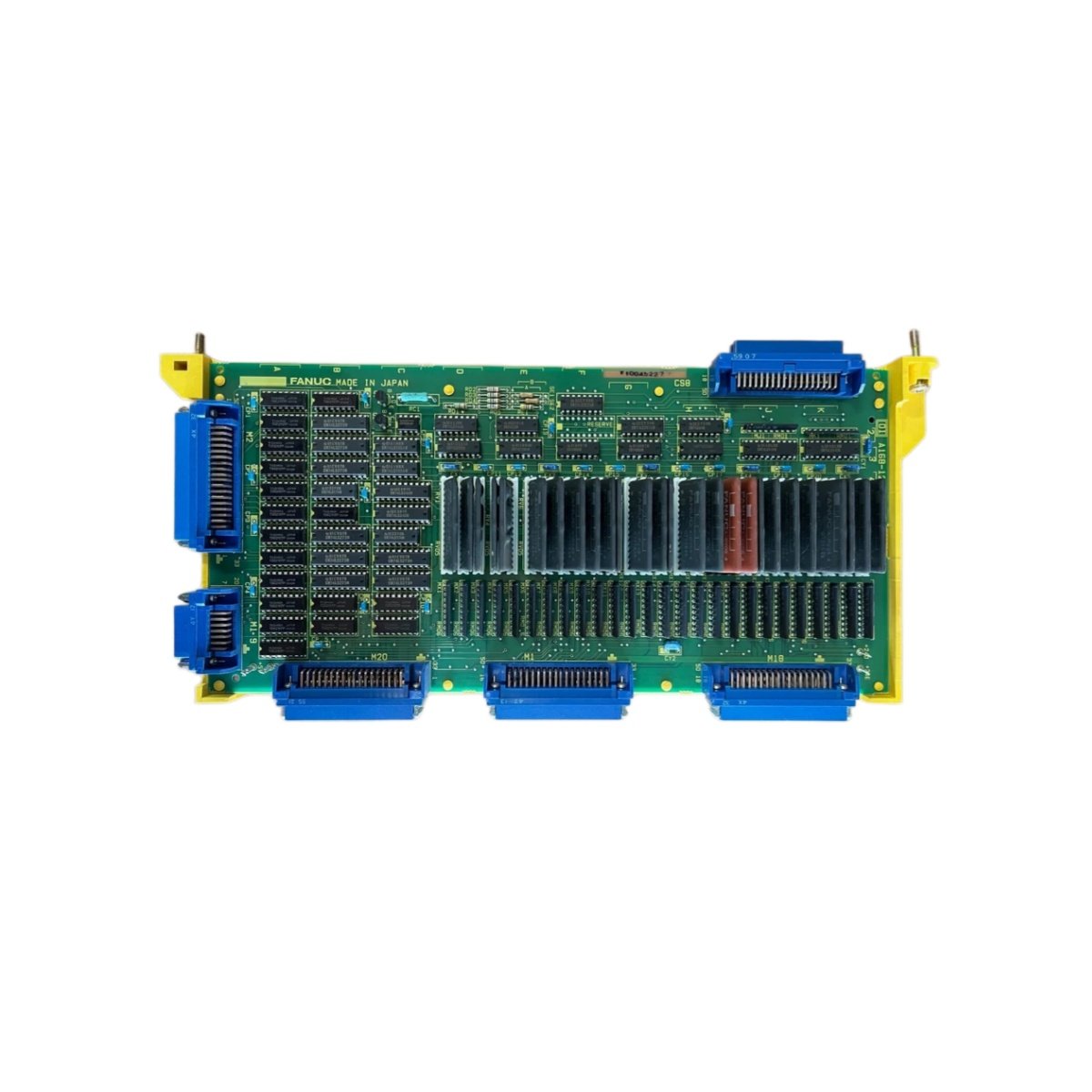

The A16B-1212-0220/02A serves as a digital I/O board within GE Fanuc’s CNC control hardware family. Engineers deploy this printed circuit board to handle discrete signal exchange between the controller and machine devices. Consequently, the board delivers dependable input and output processing for legacy machine tools and automation equipment.

Technical Specifications

Board Function and Architecture

This I/O board manages discrete signal paths between the CNC controller and field devices. It routes digital commands to relays, solenoids, and indicator circuits. Therefore, the A16B-1212-0220/02A coordinates machine functions such as clamping, tool changes, and coolant control. Onboard buffer circuits also protect the controller from voltage spikes on field wiring.

System Integration

Engineers install this board into designated slots within GE Fanuc control cabinets. The backplane edge connector carries both signal and power connections. Additionally, the board pairs with motion control and CPU boards from the same hardware family. Careful alignment during insertion prevents damage to the connector pins.

Compatibility and Service Notes

Operators use this board across CNC machining centers, lathes, and milling machines. Engineers must verify the exact model number against system documentation before ordering. Furthermore, the A16B-1212-0220/02A suits repair and replacement projects where original boards have failed. Qualified technicians should handle all installation work with proper ESD precautions.
