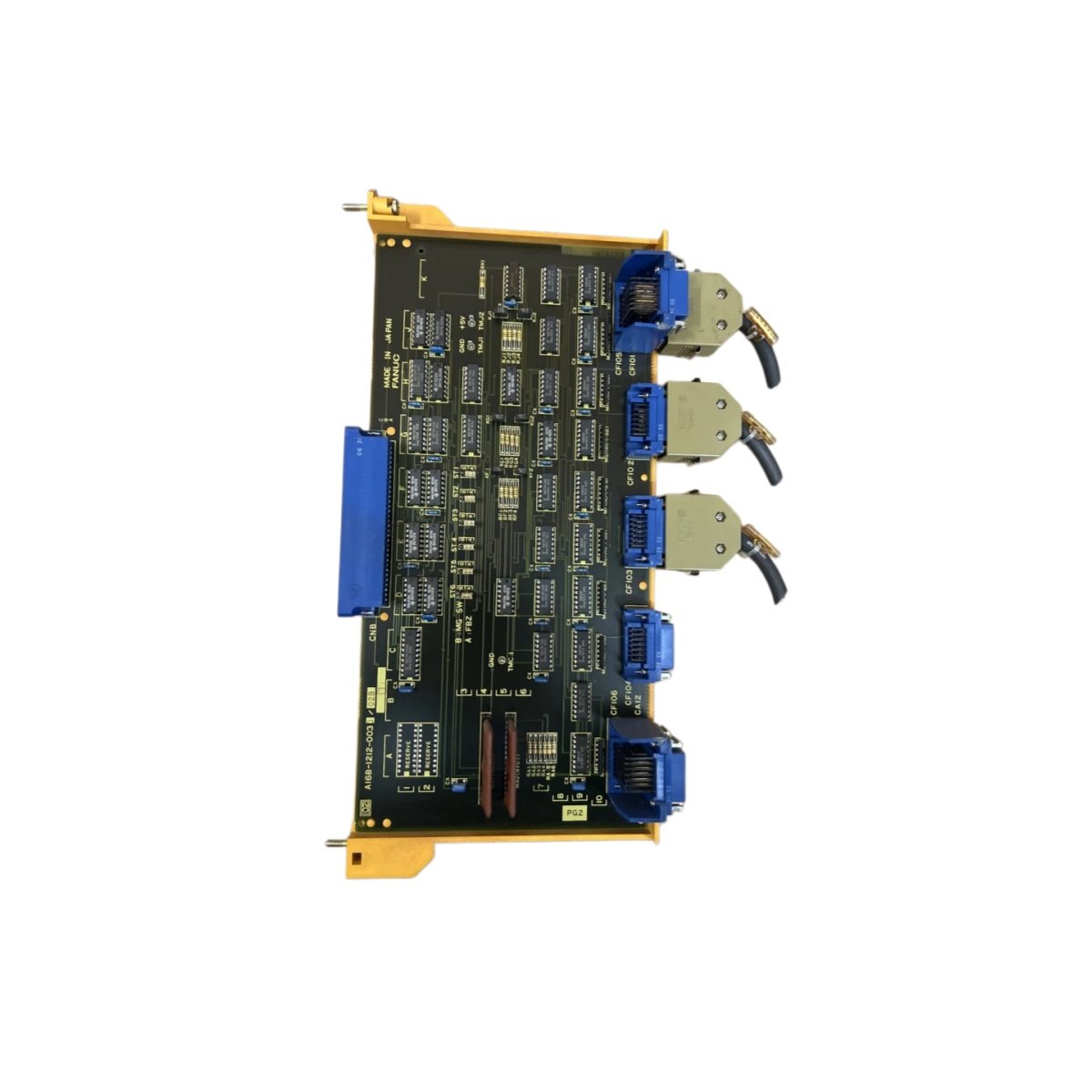

The A16B-1212-0030 serves as a printed circuit board inside GE Fanuc CNC and drive assemblies. This board measures roughly 11.8 inches long, 6.7 inches wide, and 0.8 inches thick. Moreover, it weighs about 1.2 pounds, which keeps handling simple during service. Technicians recognize the A16B-1212-0030 for its dependable role in signal processing and axis control.
Technical Specifications and Hardware Details
Engineers appreciate the A16B-1212-0030 because it combines dense component placement with stable backplane connectivity. The board carries multiple integrated circuits, resistors, and capacitors across its surface. Additionally, it uses a standard edge connector for slot-based installation. Gold-plated contacts resist corrosion and therefore extend service life.
| Parameter | Specification |
|---|---|
| Board Type | CNC Control PCB |
| Dimensions | 11.8 x 6.7 x 0.8 in |
| Weight | ~1.2 lbs |
| Connector | Edge connector, gold-plated |
| Mounting | Rack or slot-based |
| Component Count | 100+ discrete parts |
| Operating Voltage | 5 VDC logic level |
| Compatibility | GE Fanuc CNC series |
Energy Storage and Signal Integrity
Several capacitors on the provide local energy storage for stable voltage delivery. Consequently, the board smooths power fluctuations that could disturb sensitive logic circuits. This buffering supports consistent performance during rapid axis movements. The layout also minimizes signal noise across high-speed data lines.
Installation and Maintenance Guidance
Because the A16B-1212-0030 fits standard GE Fanuc racks, replacement takes only minutes. Service teams should verify slot alignment before applying power. Furthermore, periodic inspection of edge contacts prevents intermittent faults. Always store spare boards in anti-static packaging to protect components.
