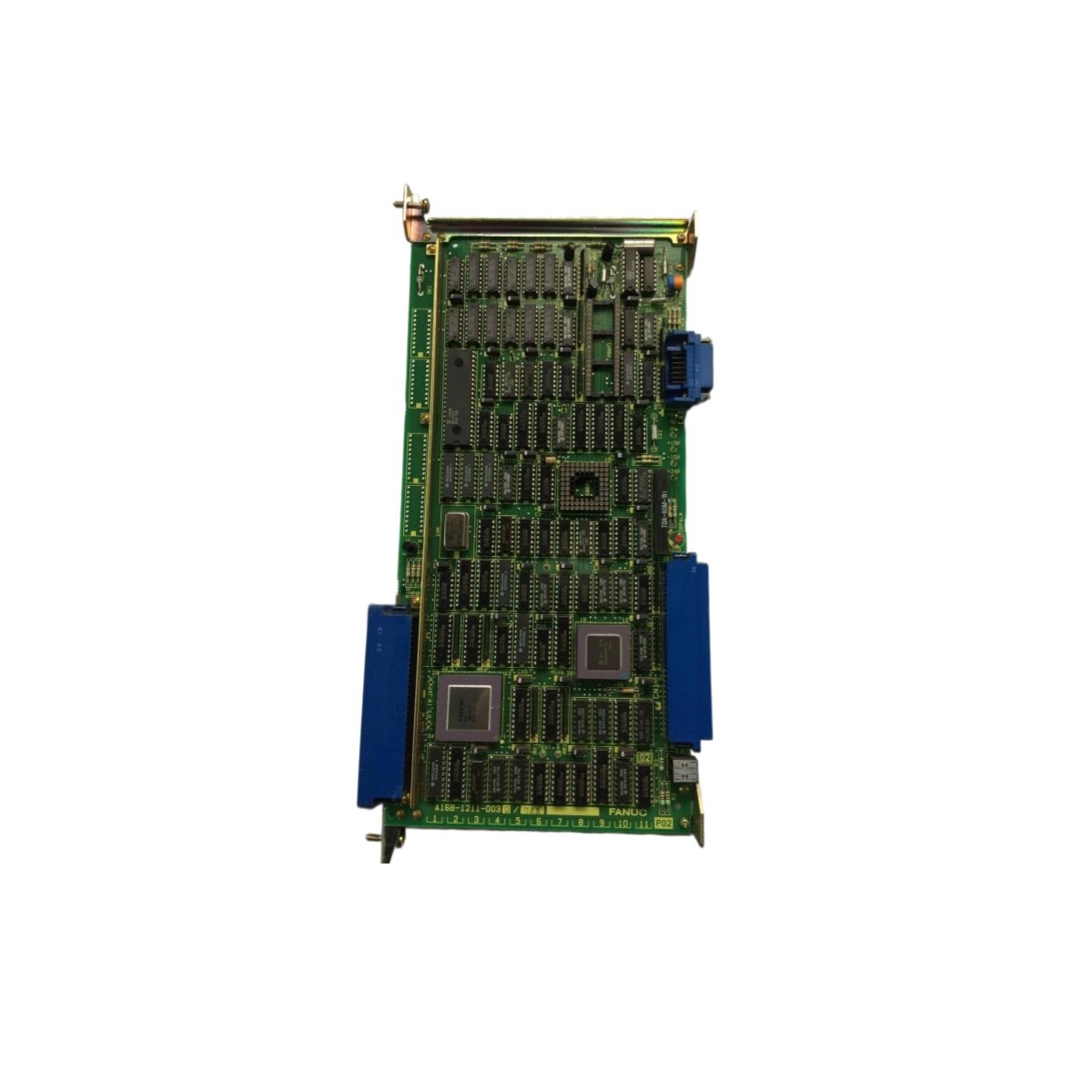

The A16B-1211-0030/04A circuit board handles signal processing and interface control within GE Fanuc CNC systems. This printed circuit assembly links the main processor to peripheral and drive stages. Engineers rely on it for stable data flow in machining and automation equipment.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Circuit Board |
| Compatibility | GE Fanuc CNC Systems |
| Board Function | Signal Processing and Interface Control |
| Layer Count | Multi-Layer PCB |
| Interface | Backplane Connector, Ribbon Headers, Terminal Blocks |
| Dimensions | 280 mm x 180 mm x 25 mm |
| Weight | Approximately 0.56 kg |
| Component Count | 128 Active Electronic Components |
| Energy Storage | 3.0 V Lithium Backup Battery |
| Power Consumption | 5 VDC at 1.1 A |
| Operating Temperature | 0°C to 55°C |
| Relative Humidity | 5% to 95%, Non-Condensing |
Board Architecture and Function
The assembly uses a multi-layer PCB to route dense signal and control traces. Therefore, it processes command and feedback data with minimal interference. Furthermore, 128 active components manage logic, timing, and interface duties. Consequently, one board supports complex CNC control sequences.
Interface and Connectivity
Backplane connectors and ribbon headers link the A16B-1211-0030/04A to host racks and peripherals. As a result, data moves through short, shielded paths for signal integrity. Additionally, terminal blocks simplify field wiring during service work.
Power and Backup
The board draws 5 VDC at 1.1 A from the system supply rail. Moreover, a 3.0 V lithium battery preserves calibration data during outages. Consequently, technicians avoid recalibration after brief power interruptions.
Installation Notes
Operators secure the board with standoffs inside the CNC control enclosure. The compact footprint fits standard GE Fanuc card cages without modification. However, users should follow anti-static precautions before handling the assembly.
Details
| Weight | 1.5 kg |
|---|---|
| Dimensions | 278 × 194 × 42 mm |
