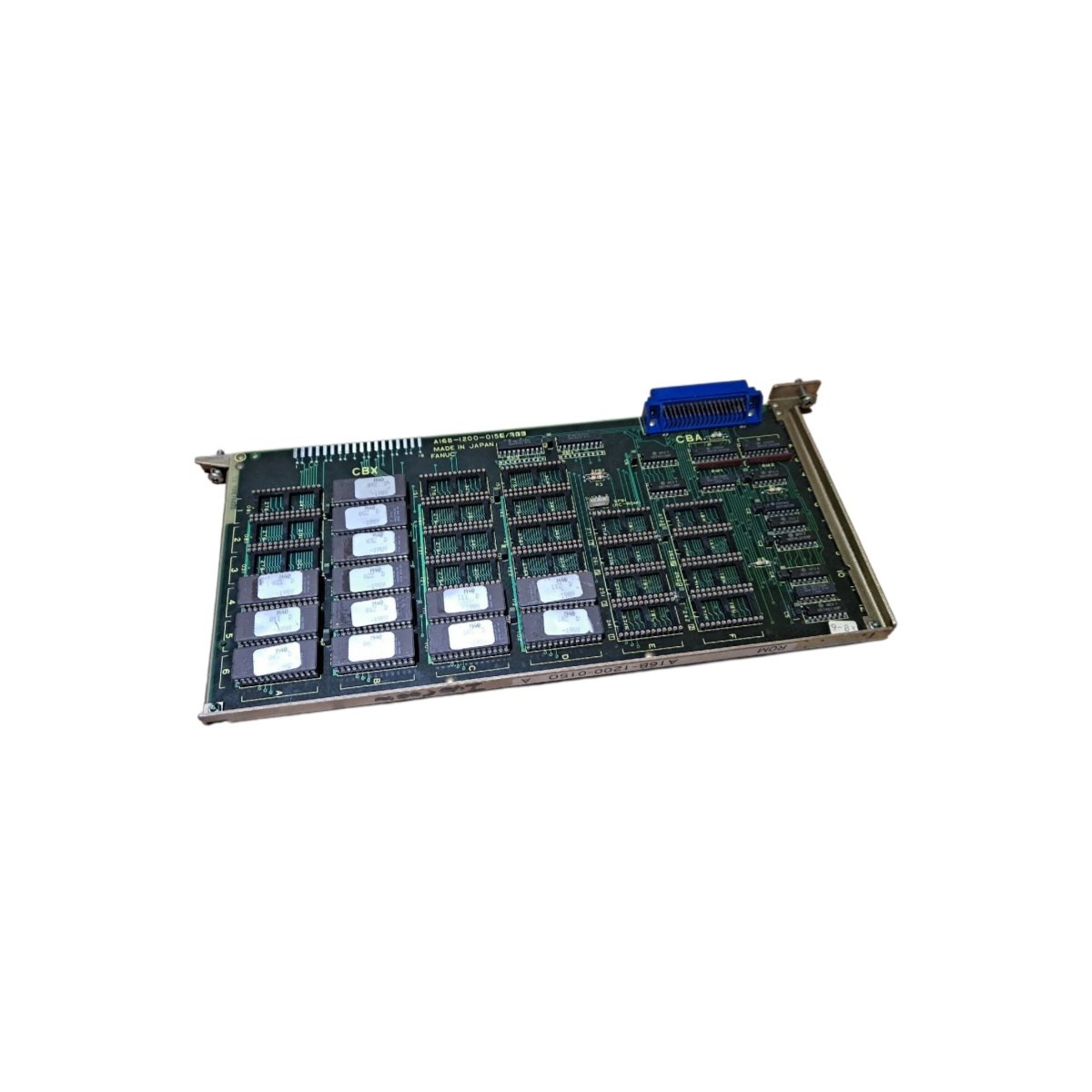

The A16B-1200-0150/01A functions as a memory module circuit board within GE Fanuc CNC control systems. This board stores program data, parameters, and diagnostic information for the host controller. Consequently, maintenance teams gain a dependable replacement for aging control cabinets.

Technical Specifications Overview

The A16B-1200-0150/01A combines a compact PCB footprint with rugged industrial construction. Moreover, its parameter set helps engineers plan slot placement and cable routing accurately.

Interface and Connection Details

The A16B-1200-0150/01A connects through a backplane connector and edge contacts. Therefore, it exchanges program data quickly with the host controller. The single-board layout reduces connector count and simplifies replacement work. In addition, the board draws 5 V DC directly from the card cage power rail.

Physical Characteristics and Installation

This circuit board measures roughly 200 mm wide and 150 mm high. Furthermore, its 20 mm depth fits standard card cage slots. The A16B-1200-0150/01A weighs about 0.3 kg. Consequently, installation requires no lifting tools or special fixtures. Technicians align the edge contacts, then press the board firmly into the slot.

Operational Role and Maintenance

Engineers apply the for program storage and parameter backup tasks. Meanwhile, front-panel LEDs show live board status during troubleshooting. A buffer battery preserves RAM contents during power interruptions. Accordingly, maintenance teams should track cell voltage during routine inspections.
