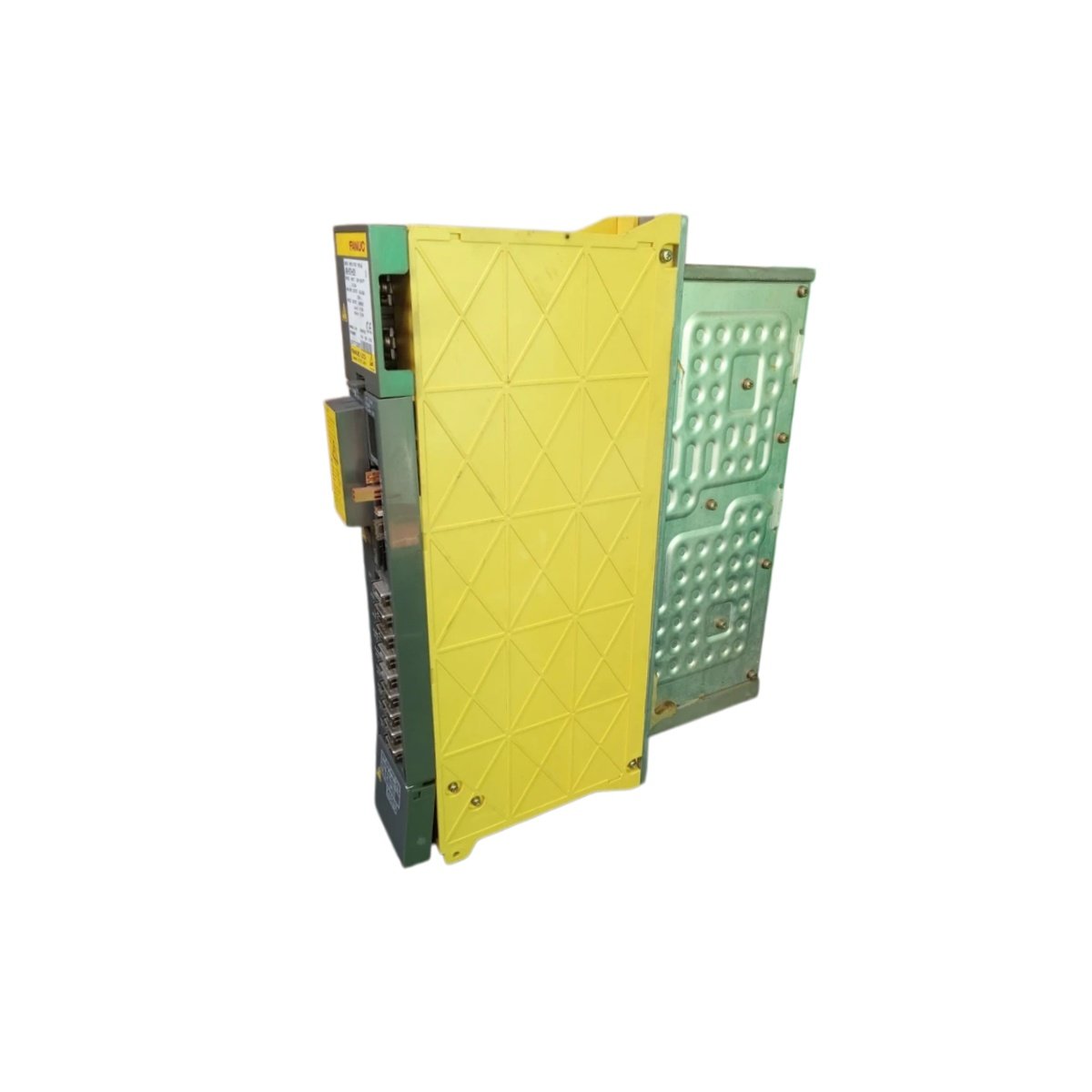

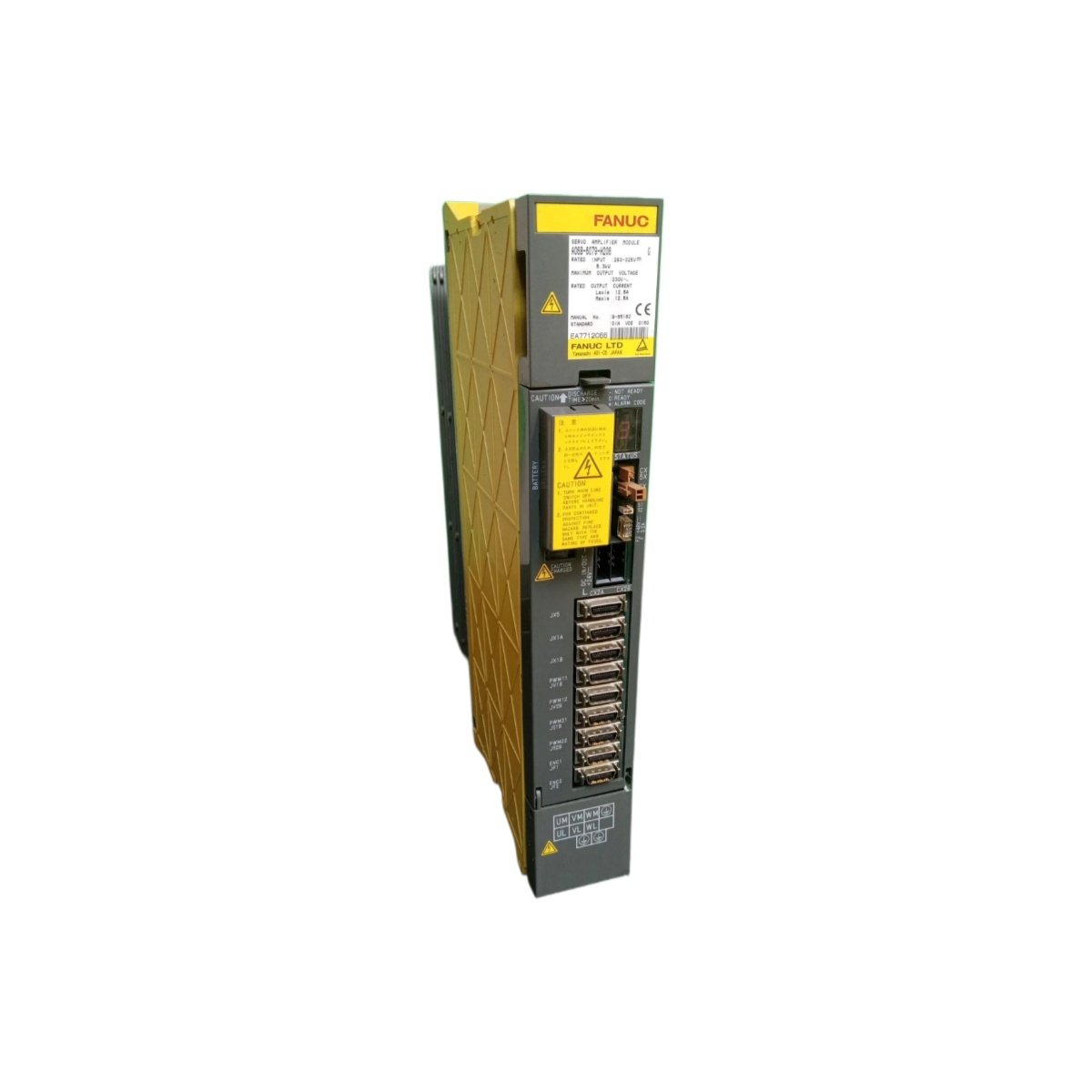

This dual-axis servo amplifier module provides precise motion control for FANUC CNC platforms. It drives Alpha series AC servo motors in demanding machining and automation applications. Engineers choose this module for its coordinated two-axis control and robust power delivery. Its design ensures stable torque generation and accurate motor response during continuous operations.
Power Architecture and Output Performance
The GE A06B-6079-H206 operates with a rated input voltage of 283–325 V and delivers 5.3 kW of power . Its maximum output voltage reaches 230 V, while the rated output current stands at 12.5 A . The module converts incoming AC power to precise pulse-width modulated outputs for Alpha 40/40 servo motor pairs . It provides position, speed, and torque control modes for flexible application deployment . Furthermore, the module effectively monitors overcurrent, overvoltage, and overload conditions for system protection .
Mechanical Design and Physical Specifications
The GE A06B-6079-H206 weighs approximately 22.16 lbs (10.05 kg) and features the standard Alpha Series dual-axis frame form factor . Its compact design facilitates efficient installation within drive cabinets. The unit requires vertical or wall-mounted orientation for proper cooling . It requires a minimum 100 mm clearance above and below the rear cooling heat sink to ensure natural convection . Consequently, proper mounting ensures reliable thermal management during high-demand operations.
Key Technical Specifications
The table below summarizes the critical parameters for the GE A06B-6079-H206.
| Parameter | Specification |
|---|---|
| Model Number | A06B-6079-H206 |
| Manufacturer | GE Fanuc |
| Product Category | Dual-Axis Servo Amplifier |
| Axis Configuration | 2 Axes (SVM2-40X2) |
| Rated Input Voltage | 283–325 V |
| Maximum Output Voltage | 230 V |
| Rated Output Current | 12.5 A |
| Rated Power | 5.3 kW |
| System Compatibility | FANUC Alpha Series, 0M, OT, 15, 16, 18, 21 Series |
| Operating Temperature | 0°C to 55°C |
| Cooling Method | Air cooled |
| Control Modes | Position, Speed, and Torque |
| Protection Features | Overload, Overcurrent, Overvoltage |
| Weight | 22.16 lbs (10.05 kg) |
| Mounting | Vertical/Wall-mounted |
| Frequency | 50/60 Hz |
| Application | CNC Motion Control |
Safety and Installation Guidelines
The GE A06B-6079-H206 does not support hot-swapping during live operation . Technicians must completely disconnect and isolate 230 VAC input power before removal . Internal DC bus capacitors require sufficient time to discharge after power isolation . Verify the voltage drops below 50 VDC using a calibrated multimeter before servicing . Therefore, following these safety procedures prevents damage to power semiconductors and control interfaces.
Details
| Weight | 0.65 kg |
|---|---|
| Dimensions | 140 × 110 × 75 mm |
