High-Performance Motion Control for Servo Systems

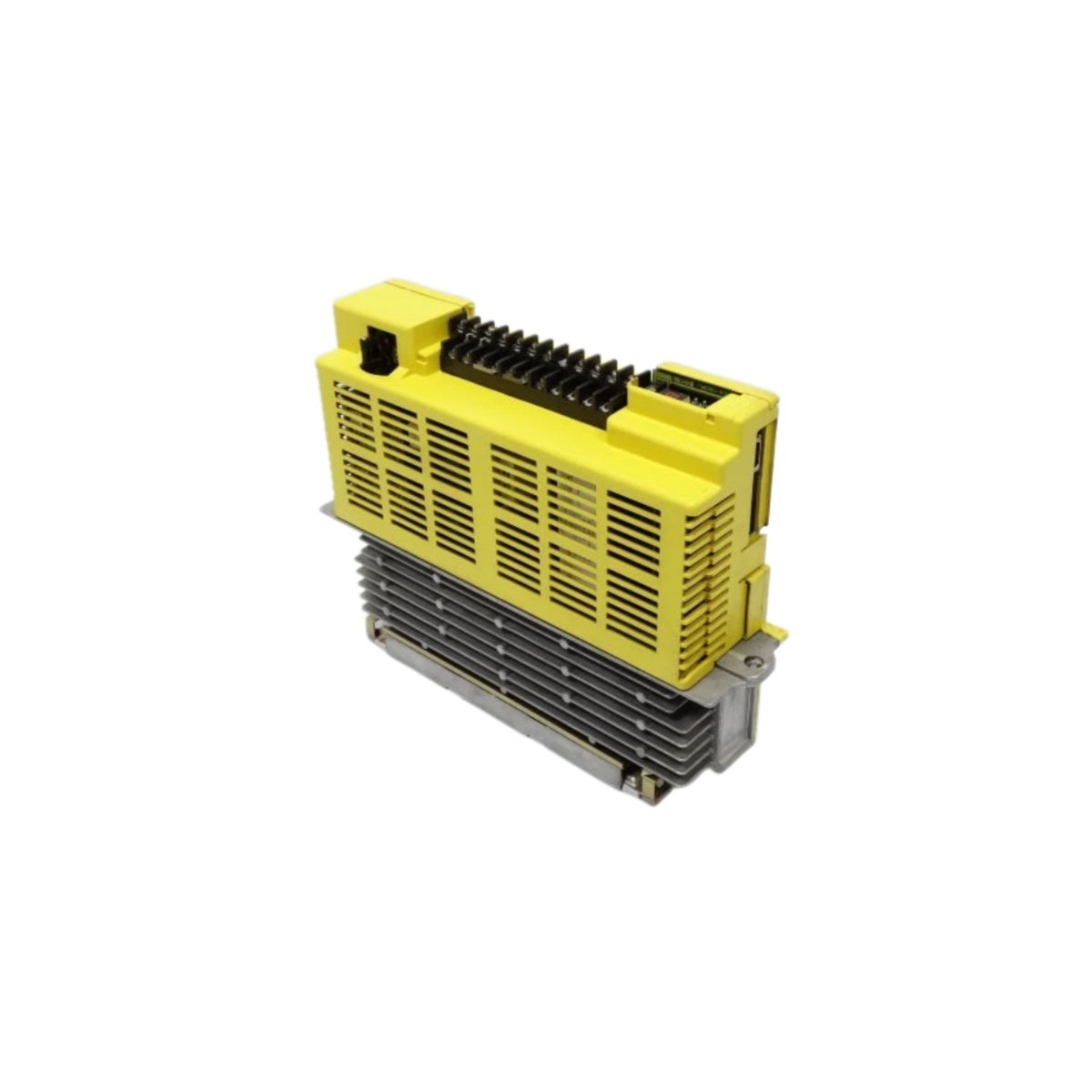

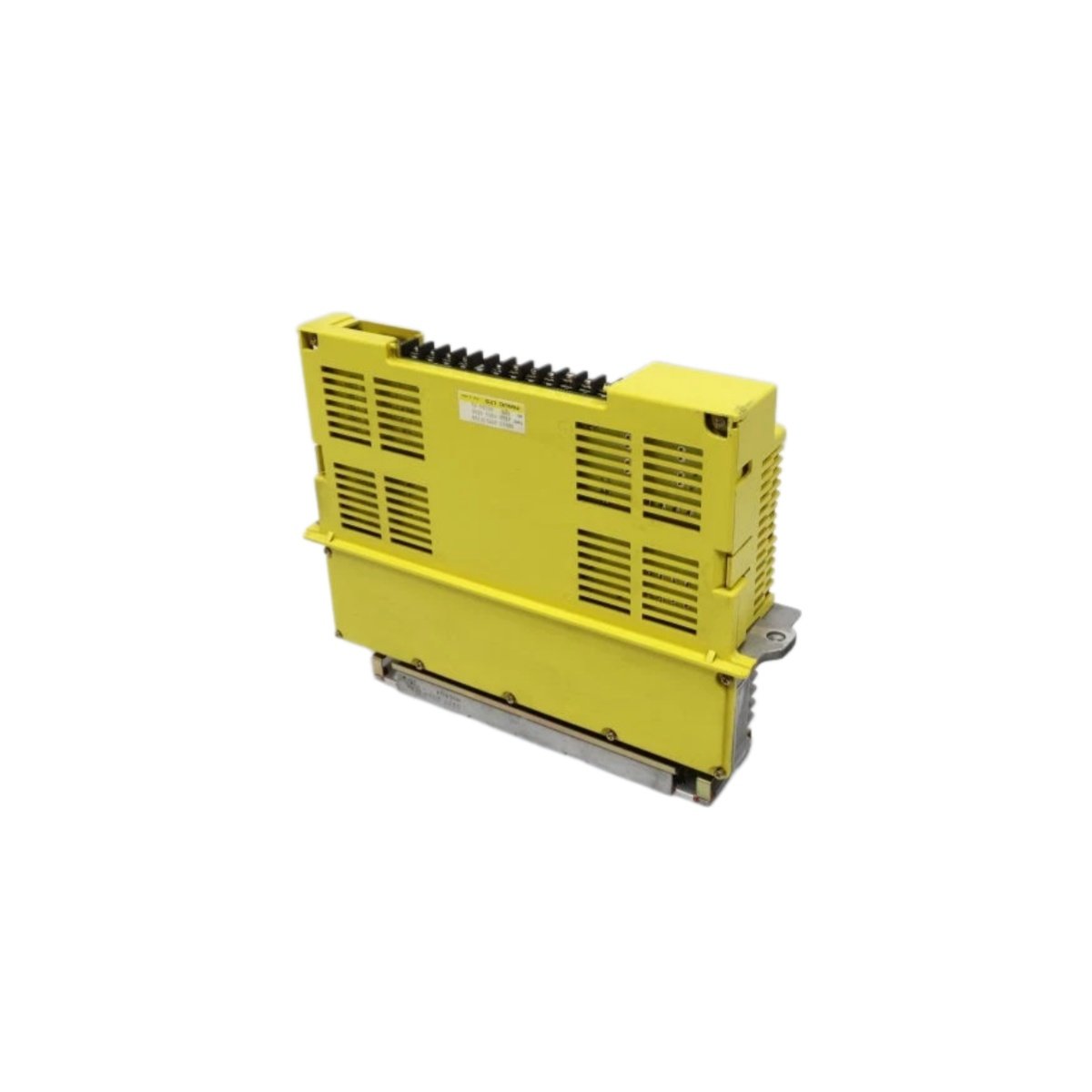

This AC servo drive amplifier provides precise motion control for demanding automation applications. The A06B-6066-H006 delivers reliable power amplification for servo motors in CNC and robotics. It handles high-speed, high-torque operations with exceptional accuracy and repeatability. The amplifier’s robust design ensures stable operation under heavy loads and continuous cycles. Consequently, the unit is a trusted choice for precision motion-intensive manufacturing environments.

Technical Specifications and Physical Attributes

The operates on a three-phase AC input of 200-230 VAC at 50 or 60 Hz. It delivers a continuous output current of 6 A and a peak current of 18 A. The amplifier achieves a power rating of 0.75 kW for medium-range servo applications. It includes a built-in regenerative resistor for efficient energy dissipation. The unit measures approximately 65 mm in width, 170 mm in height, and 175 mm in depth. It weighs about 1.8 kg. Furthermore, the A06B-6066-H006 operates within a temperature range of 0 °C to 55 °C. Its protection features include overcurrent and overtemperature safeguards.

Integration and Application Guidance

This amplifier interfaces directly with compatible servo motors and CNC controllers. First, mount the A06B-6066-H006 securely onto the DIN rail or panel. Then, connect the three-phase AC power to the appropriate input terminals. For the motor, wire the output phases to the servo motor accordingly. Additionally, connect the encoder feedback cable to the controller for closed-loop operation. The A06B-6066-H006 excels in CNC machining centers, robotic arms, and precision material handling systems.
