Single-Axis S-Series Amplifier for CNC and Robotics
The A06B-6058-H006 serves as a single-axis AC digital servo amplifier within GE Fanuc’s S-Series drive platform. Engineers deploy this amplifier to drive 20S and 30S series servo motors in CNC machines and industrial robots. Consequently, the unit delivers precise motion control for demanding manufacturing applications.GE A06B-6058-H006 AC Servo Drive | S-Series Single-Axis Specs
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | A06B-6058-H006 |
| Manufacturer | GE Fanuc |
| Series | S-Series |
| Product Type | AC Digital Servo Amplifier |
| Axes | Single Axis |
| Compatible Motors | 20S, 30S |
| Input Voltage | 200–230V AC |
| Control Board | A20B-1003-0090 |
| Power Board | A20B-1003-008x |
| Interface | PWM Digital |
| Compatible Controls | Fanuc 0-B, 0-C, 15, 16, 18, 21 |
| Cooling | Forced Air |
| Operating Temperature | 0°C to +60°C |
| Weight | 5.4 kg |
| Dimensions (H×W×D) | 20 × 160 × 450 mm |
Control Architecture
The uses pulse-width modulation for high-bandwidth current loop control . The control board handles velocity and position regulation for a single motor axis. Therefore, the amplifier achieves smooth motion with fast torque response.
Safety and Protection

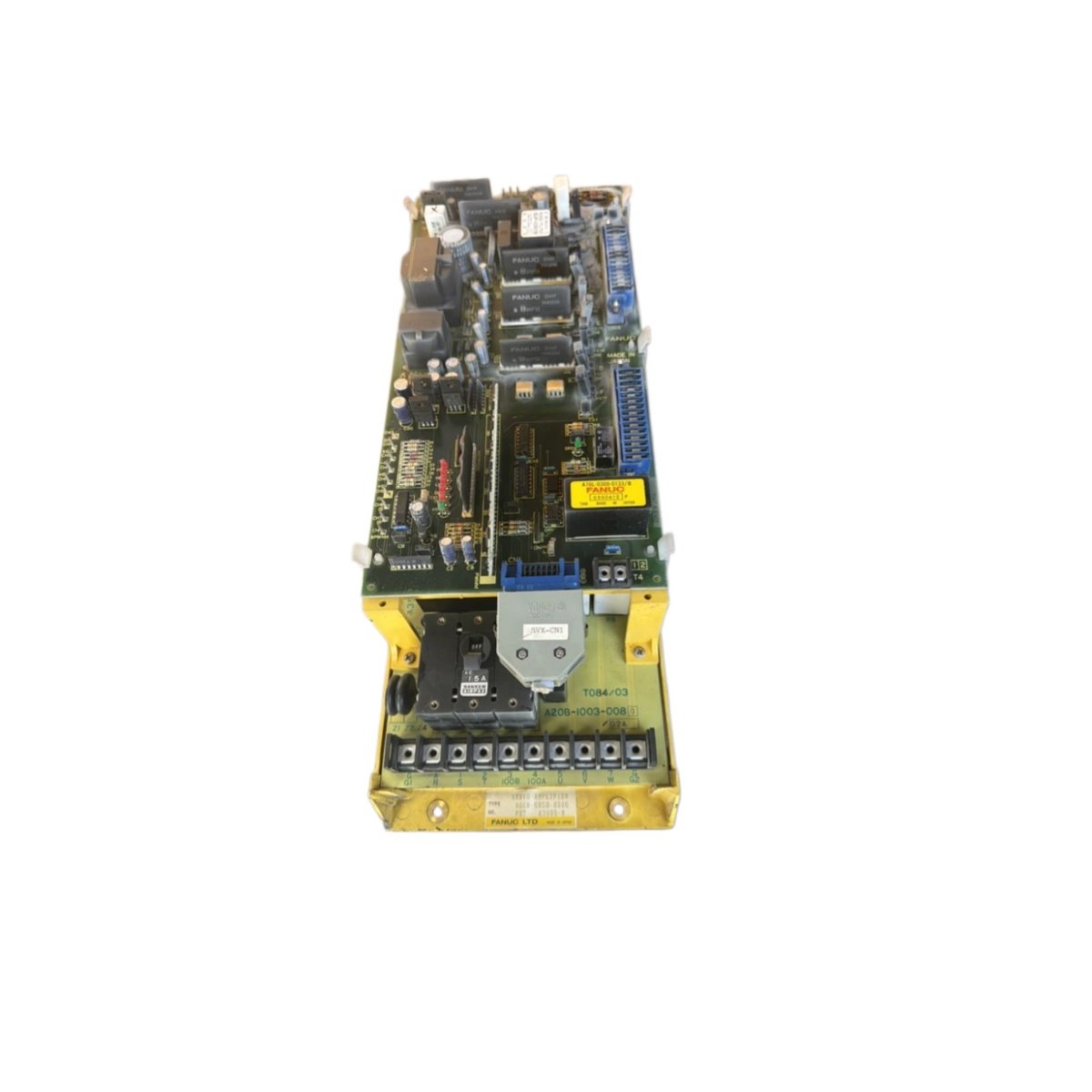

The module includes overcurrent and overvoltage protection circuits . Temperature monitoring prevents overheating during continuous operation. Additionally, the unit supports regenerative braking to manage energy during deceleration cycles.GE A06B-6058-H006 S-Series AC servo amplifier. Single-axis, 200-230V, drives 20S/30S motors, 5.4kg. CNC and robotics drive specifications.
Details
| Weight | 2.5 kg |
|---|---|
| Dimensions | 306 × 230 × 76 mm |
