Overview

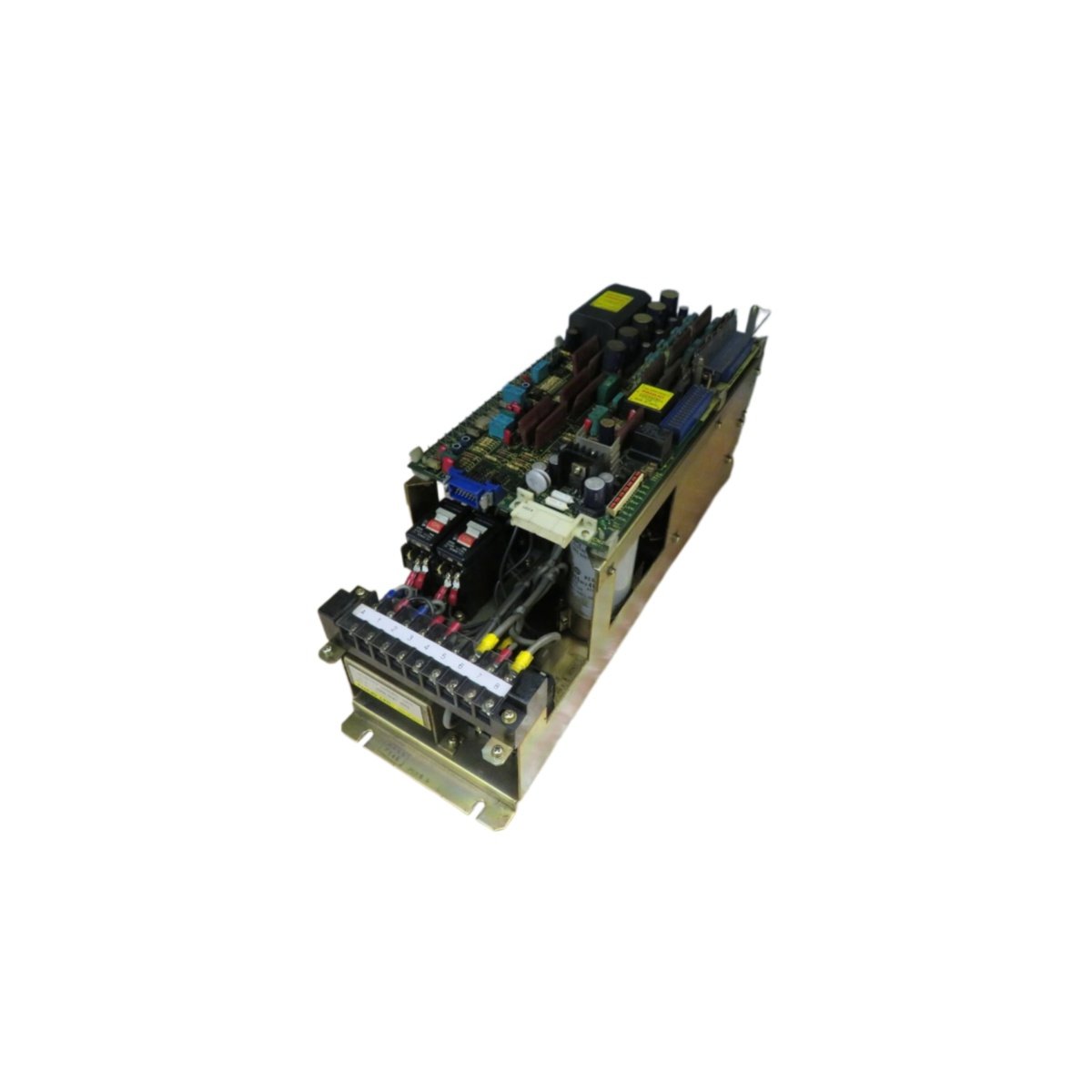

The A06B-6047-H002 belongs to the GE Fanuc servo drive family, a line of velocity control units for CNC and industrial motion systems. Engineers deploy this controller to regulate motor speed with closed-loop precision. Consequently, it delivers stable velocity control across machine tools, robots, and material handling equipment.
Key Technical Specifications
The A06B-6047-H002 pairs with GE Fanuc servo motors and receives commands from a CNC or motion controller. Moreover, it supports both velocity and torque control modes. The table below lists the core parameters.
| Parameter | Specification |
|---|---|
| Product Type | Velocity servo controller unit |
| Series | GE Fanuc servo drive family |
| Control Modes | Velocity and torque |
| Input Voltage | 200–230 VAC, 3-phase |
| Input Frequency | 50/60 Hz |
| Rated Output | 2 kW class |
| Speed Feedback | Encoder, closed-loop |
| Dynamic Braking | Integral, resistor-based |
| Cooling | Forced air, internal fan |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | –20 °C to +65 °C |
| Humidity | 5–95%, non-condensing |
| Dimensions | 300 mm × 180 mm × 250 mm |
| Weight | Approximately 8 kg (17.6 lb) |
| Mounting | Vertical panel mount |
| Compliance | CE, UL |
Installation and Interface Details
The unit mounts vertically inside a CNC control cabinet. Power cables land on heavy-duty terminal blocks, which handle servo currents safely. Furthermore, a dedicated encoder connector links the drive to the motor for closed-loop feedback. As a result, technicians achieve precise speed regulation without external tachometers.
Control Performance and Braking
The controller uses PWM sine-wave control to deliver smooth motor rotation. Meanwhile, integral dynamic braking dissipates energy during rapid deceleration. Additionally, the encoder interface tracks motor speed in real time. Therefore, the unit handles positioning, feed drives, and spindle orientation with consistent torque.
Environmental and Mechanical Ratings
The enclosure operates from 0 °C to +55 °C in typical machine shop conditions. Moreover, the internal fan maintains airflow across the power stage. The sealed housing tolerates 5–95% relative humidity without condensation. Consequently, the unit suits lathes, machining centers, and robotic cells.
Why Engineers Choose This Unit
This unit offers several practical advantages. First, it delivers 2 kW of servo power in a compact frame. Second, integral dynamic braking cuts energy consumption during frequent stops. Third, its encoder interface simplifies closed-loop setup. Therefore, maintenance teams reduce downtime and replacement costs.
Details
| Weight | 1.5 kg |
|---|---|
| Dimensions | 278 × 194 × 42 mm |
