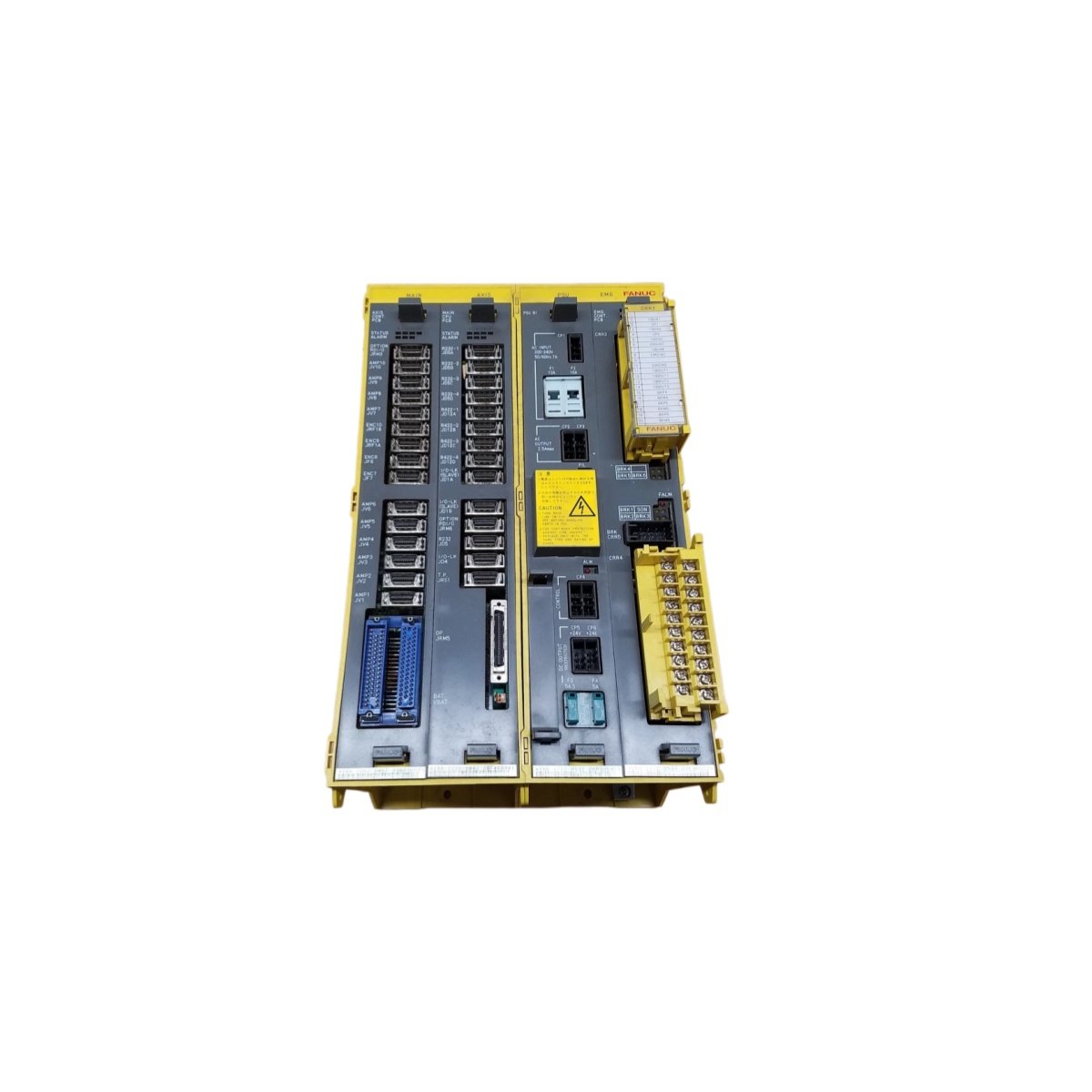

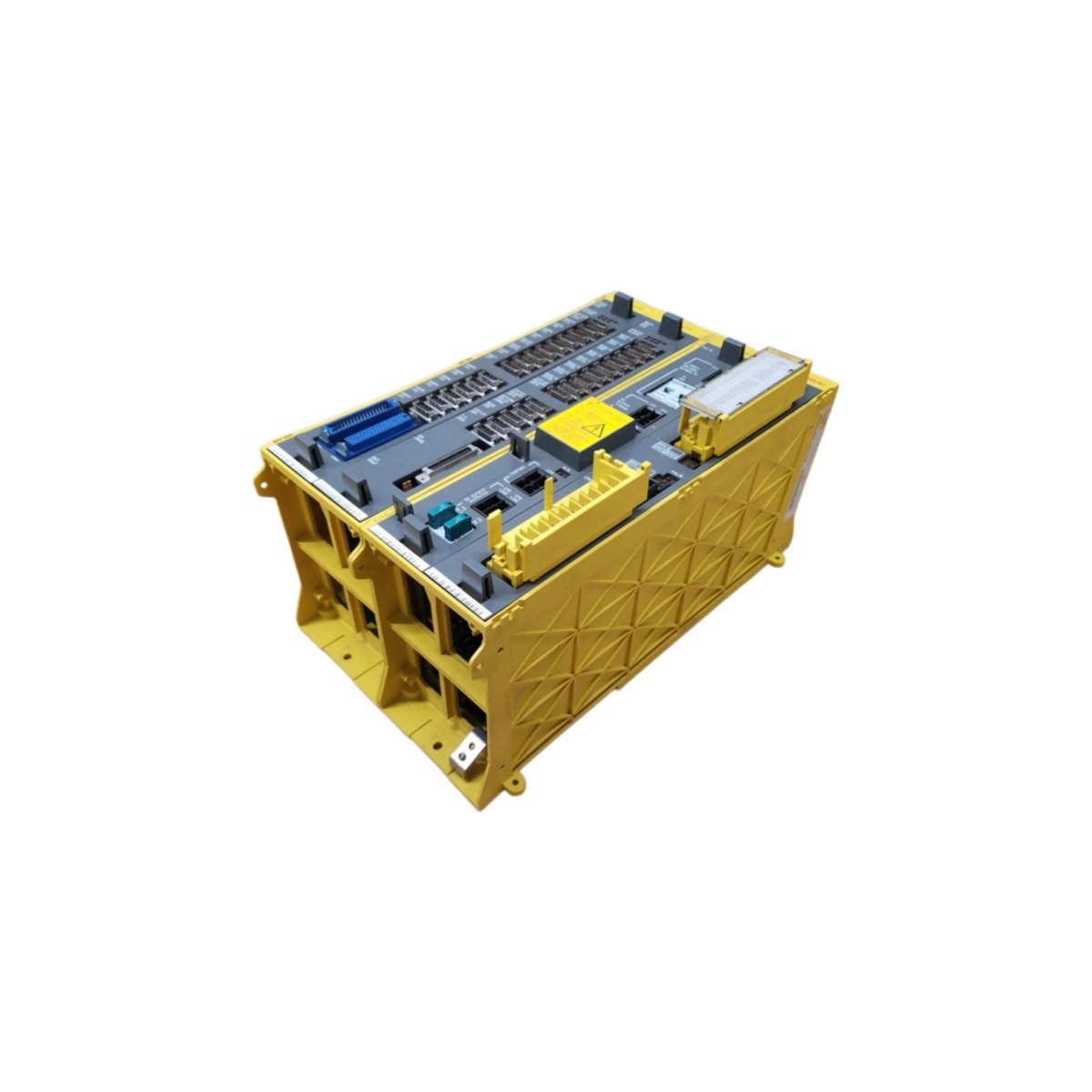

The A05B-2300-C002 provides mounting and interconnect support inside GE Fanuc CNC control assemblies. This backplane rack measures roughly 12.6 inches long, 3.9 inches wide, and 7.9 inches high. Moreover, it weighs about 3.5 pounds, which suits standard cabinet installation. Engineers specify the A05B-2300-C002 when they need a compact foundation for up to four control boards.
Technical Specifications and Interface Details
The rack carries four board slots and therefore accepts axis, spindle, and I/O cards. Specifically, it distributes power and data across every installed board through backplane traces. Additionally, keyed guides align each card correctly during insertion. Front rails secure boards against vibration in machining environments.
| Parameter | Specification |
|---|---|
| Module Type | 4 Slot Backplane Rack |
| Slots | Four board positions |
| Function | Power and data distribution |
| Dimensions | 12.6 x 3.9 x 7.9 in |
| Weight | ~3.5 lbs |
| Interface | Backplane slot connectors |
| Mounting | Cabinet or panel |
| Application | FANUC CNC control boards |
Energy Storage and Signal Integrity
Internal capacitors on the A05B-2300-C002 provide local energy storage for stable rail voltages. Consequently, the rack supplies clean power to every connected board. This buffering also limits crosstalk between high-speed data lines. The design therefore supports consistent operation across demanding machining cycles.
Installation and Compatibility Notes
Because the A05B-2300-C002 mounts directly inside standard cabinets, technicians complete installation quickly. They should confirm slot alignment before they seat control boards. Furthermore, routine inspection of backplane contacts prevents intermittent signal faults. Always store spare racks in anti-static packaging to protect sensitive components.
Details
| Weight | 1.5 kg |
|---|---|
| Dimensions | 278 × 194 × 42 mm |
