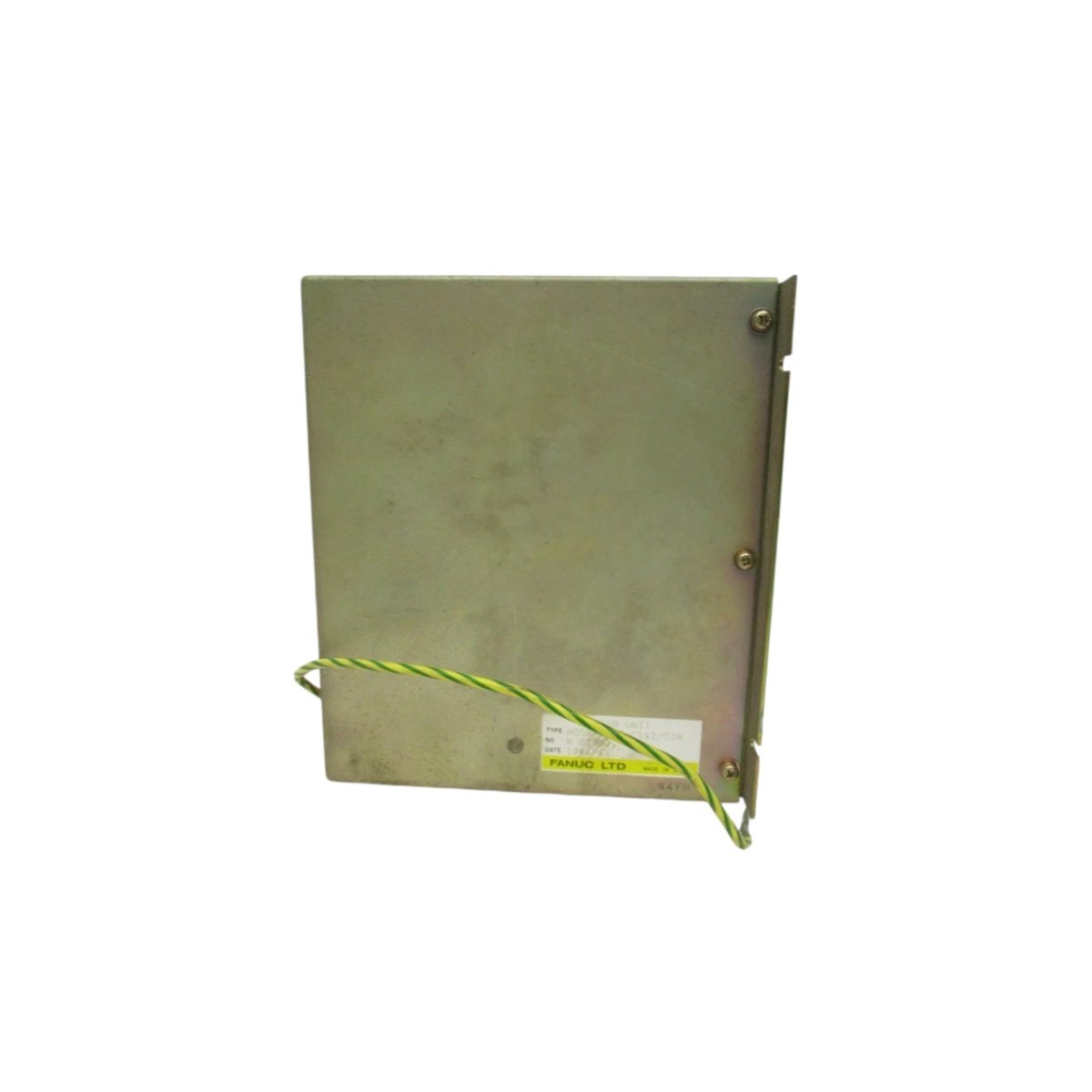

This GE Fanuc ISB unit module functions as a key interface within robot control cabinets. It manages signal distribution between the main controller and peripheral devices. Engineers can integrate this module into existing automation systems with minimal effort. Its robust construction ensures long-term reliability in continuous production environments. The module supports various I/O configurations for flexible application design.

Physical Dimensions and Mechanical Design

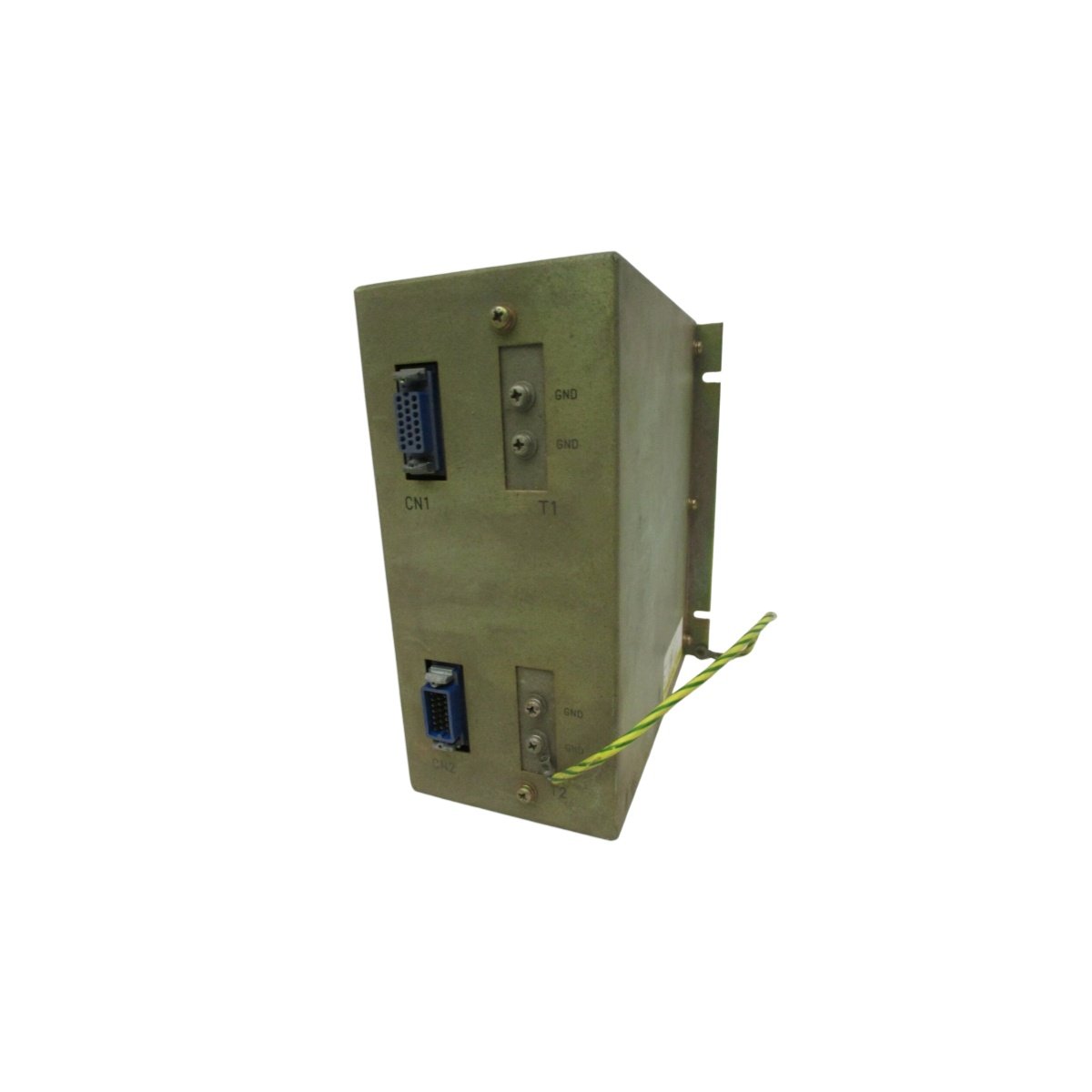

The module measures 9.8 inches in height and 1.6 inches in width. Its metal housing weighs approximately 2.2 pounds for durable installation. A high-density connector supplies all power and communication pathways to the unit. The chassis slides into standard racks and locks with a positive retention mechanism. This design facilitates quick replacement during scheduled maintenance intervals.

Internal Architecture and Component Count

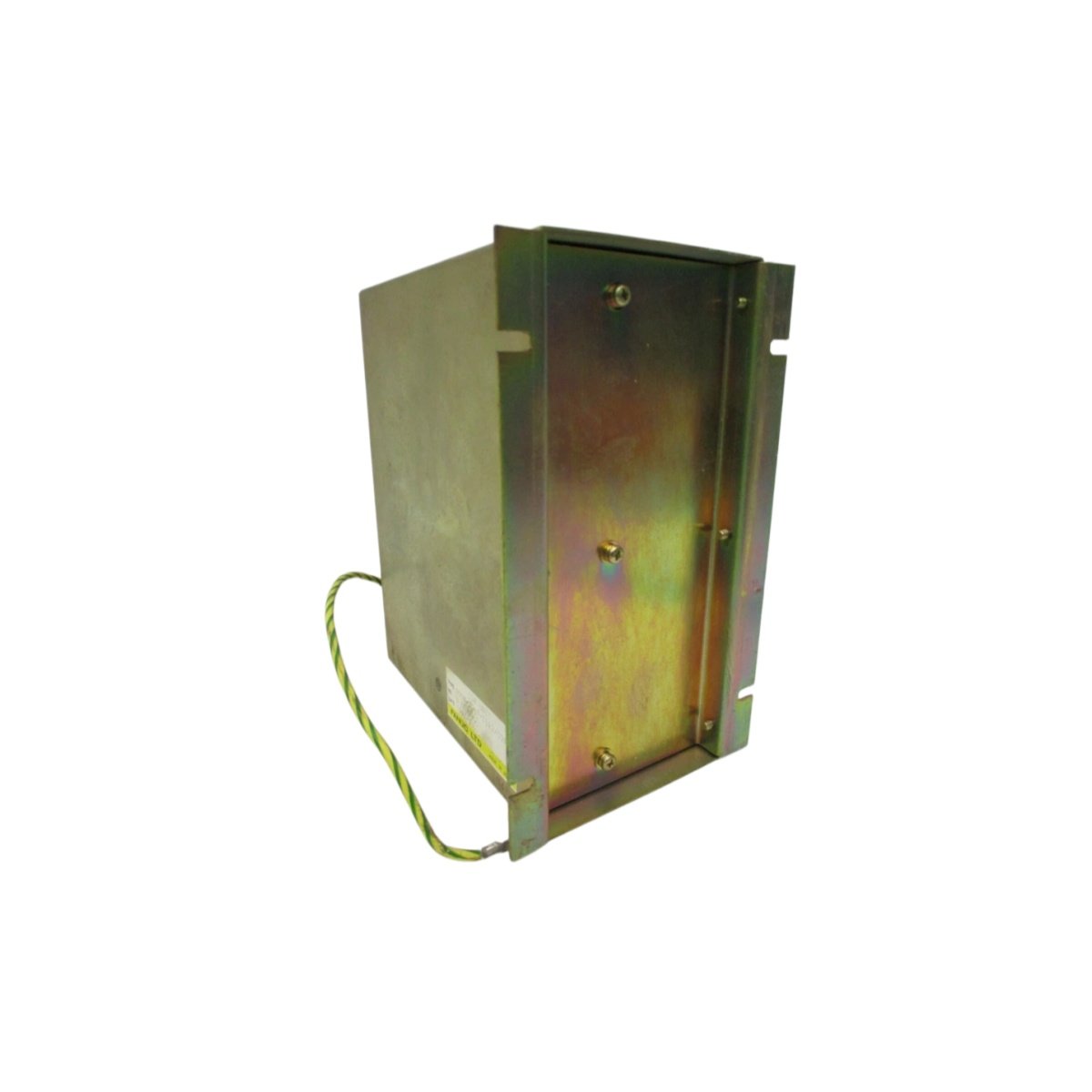

The unit incorporates a main processor board and a separate power regulation board. It also includes an interface board with 8 opto-isolated input channels. The module contains 4 relay output channels for controlling external contactors. A 512 KB flash memory stores firmware and configuration parameters persistently. This non-volatile storage retains all data during extended power outages.

Communication Protocols and Data Exchange

The module communicates via the proprietary ISB bus at 10 Mbps data rates. This bus handles cyclic data exchange with servo amplifiers and operator panels. The unit also supports RS-232 serial communication for diagnostic access. A dedicated programming port enables firmware updates without special hardware tools. These connectivity options ensure seamless integration with various automation components.

Power Requirements and Energy Management

The module draws 450 mA from the 24 VDC power supply input. It also requires 200 mA from the 5 VDC logic supply for internal operation. Total power dissipation reaches approximately 15 watts under full load conditions. An internal capacitor bank stores enough energy for 50 milliseconds during power dips. This energy reserve prevents unexpected shutdowns and protects ongoing processes.

Status Indicators and Diagnostic Features

The front panel features 8 LED indicators for real-time I/O status monitoring. Two additional LEDs display module power and communication health. The unit performs continuous self-checks on all internal subsystems. It reports any detected faults through the ISB bus to the main controller. This diagnostic capability reduces troubleshooting time and minimizes production downtime.

Environmental Tolerance and Operating Ranges

The module operates reliably across a temperature span from 0 to 55 degrees Celsius. Its conformal-coated PCB resists moisture and airborne contaminants in factory settings. The unit withstands non-condensing humidity levels up to 95% for versatile deployment. An internal heat sink dissipates thermal energy without requiring active cooling fans. This passive thermal design eliminates a common point of mechanical failure.
