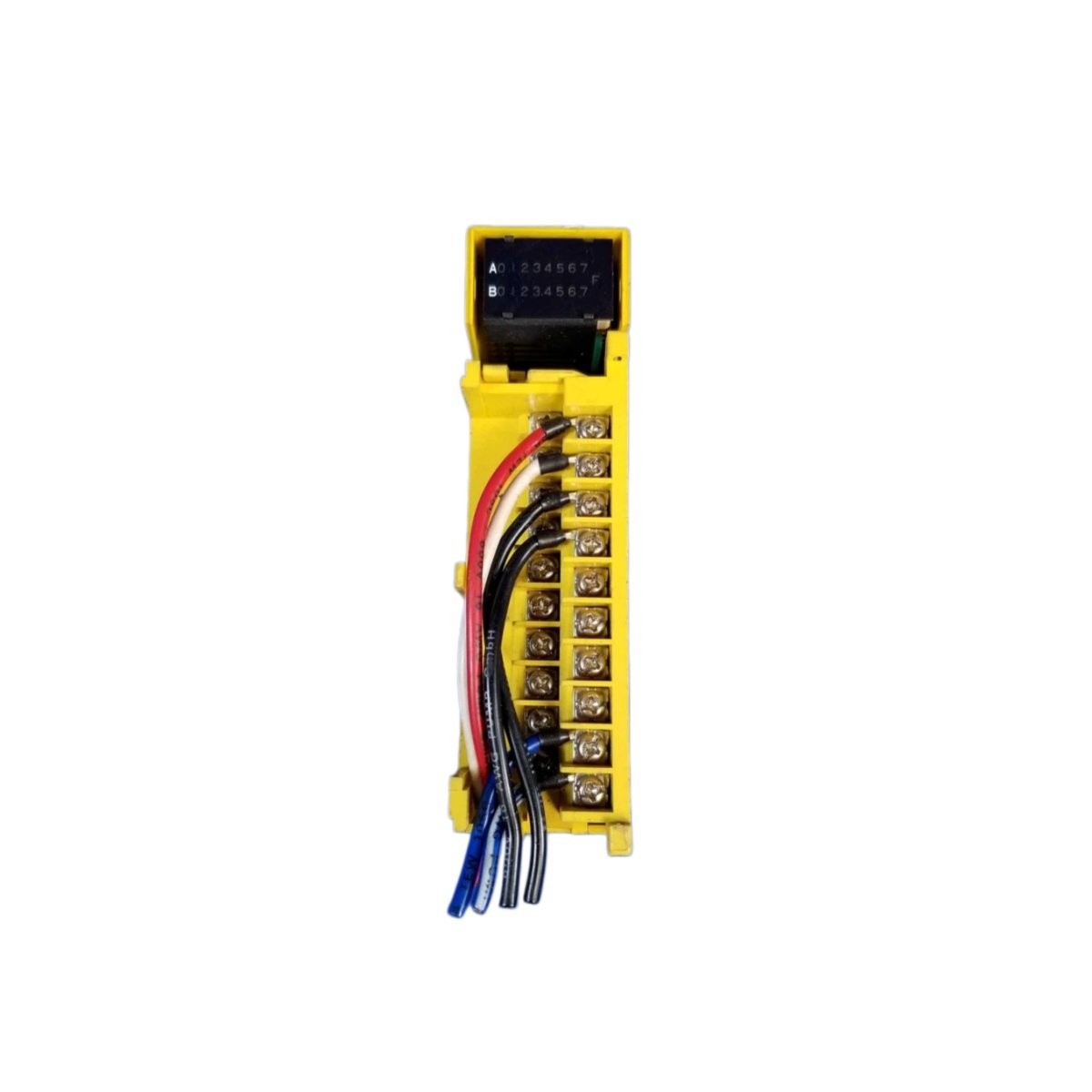

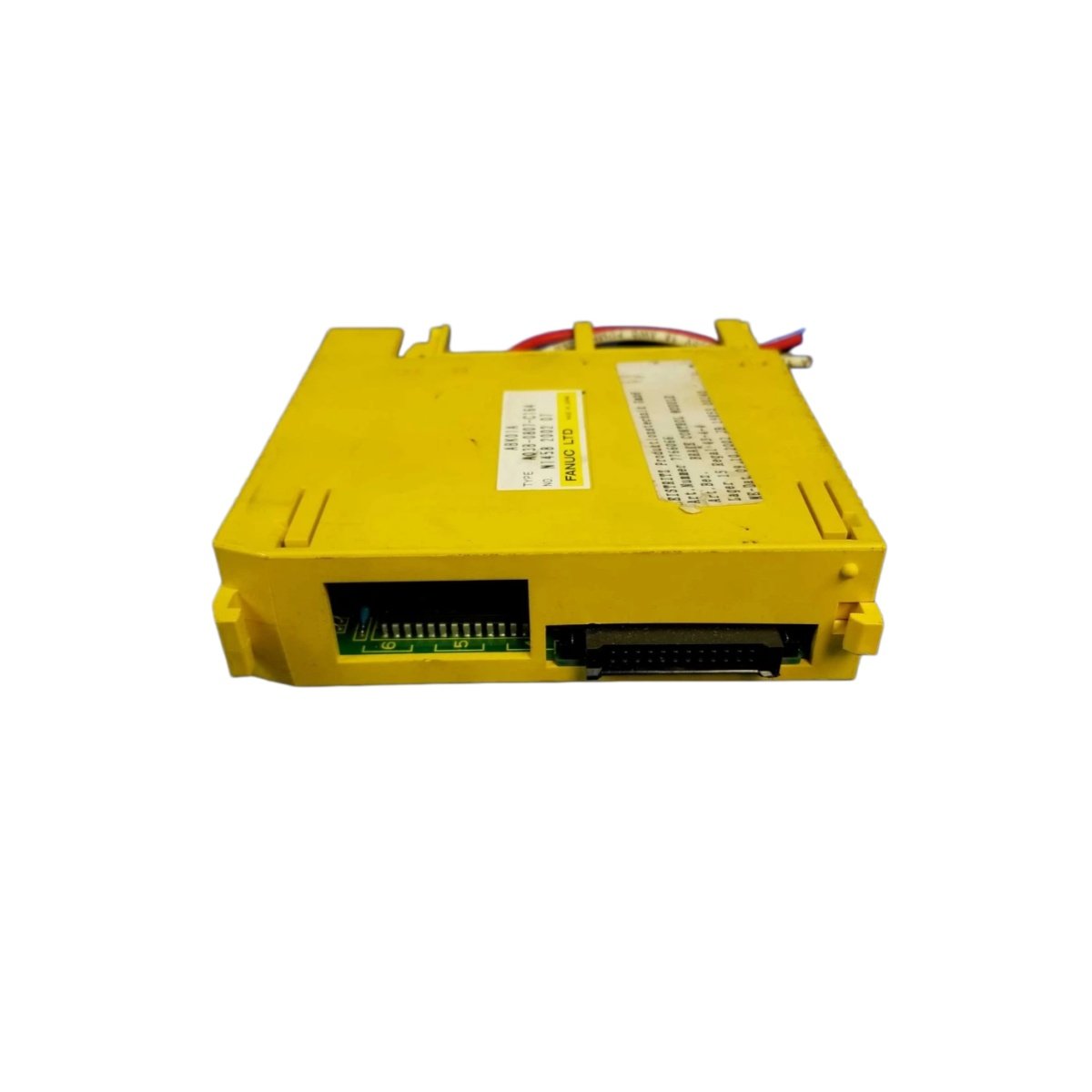

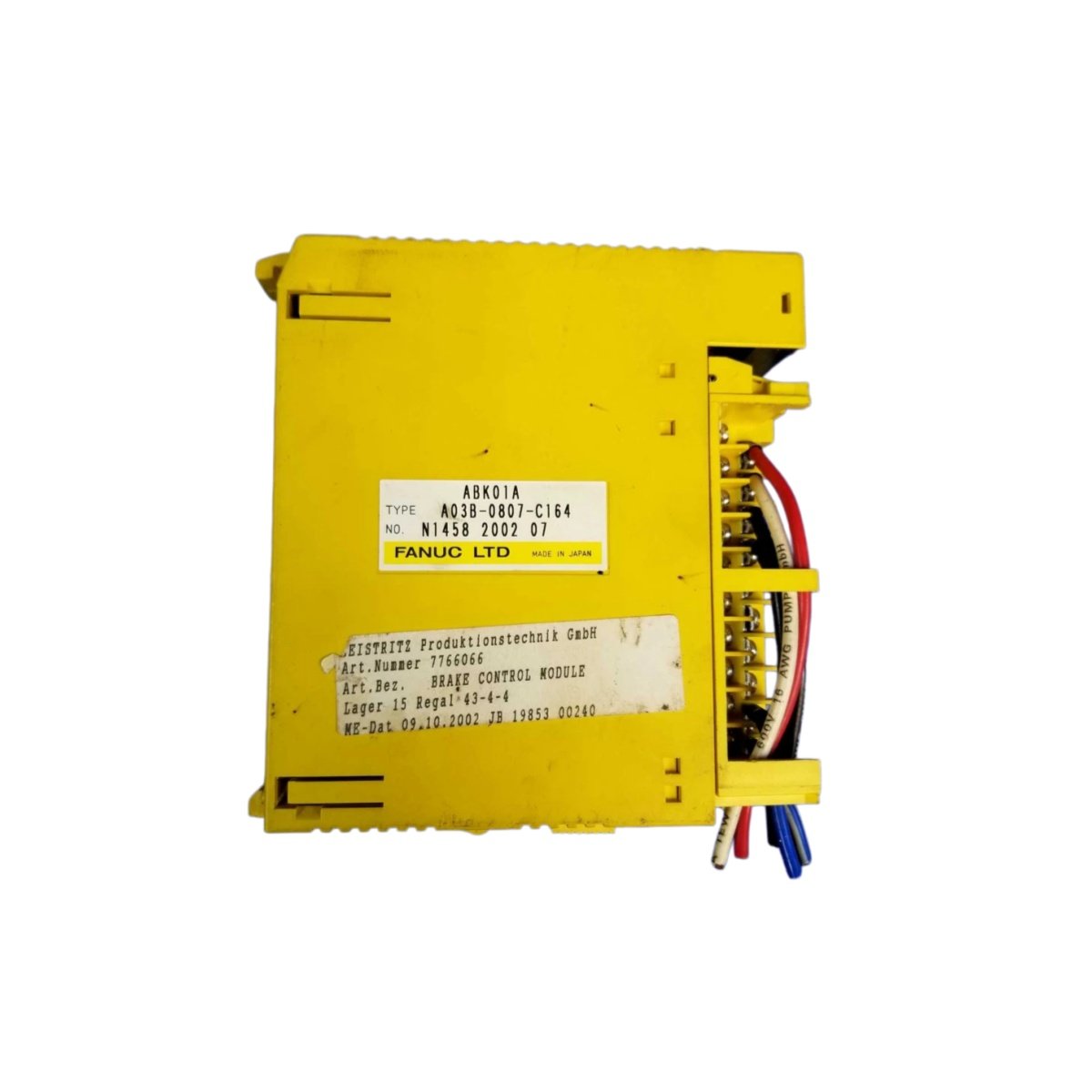

Product Overview
The GE Fanuc A03B-0807-C164 functions as a dedicated brake control module for industrial CNC machinery and automation systems. This module ensures precise stopping and holding of servo motors and other motion control components . Additionally, the A03B-0807-C164 integrates seamlessly with GE Fanuc CNC systems for reliable braking performance .
Technical Specifications
The A03B-0807-C164 operates on a 24 VDC power supply and mounts easily onto a standard DIN rail . This module features a compact footprint and withstands demanding industrial environments . Furthermore, the unit controls brake engagement and disengagement through digital control signals .
| Parameter | Specification |
|---|---|
| Manufacturer | GE Fanuc |
| Product Type | Brake Control Module |
| Module Type | Expansion ABK01A |
| Power Supply | 24 VDC |
| Brake Control | Integrated with ABK01A |
| Input Signal Type | Digital control signal |
| Output Control | Brake engagement and disengagement |
| Mounting Type | DIN Rail |
| Operating Temperature | -10°C to +60°C |
| Dimensions | 10.2 cm x 5.1 cm x 8.7 cm |
| Weight | 0.78 lbs (approx. 0.35 kg) |
| Compatibility | GE Fanuc CNC systems |
| Manufacturer Status | Discontinued (replaced by Expansion ABK01A) |
Key Design Features
The A03B-0807-C164 provides precise and reliable brake control for motion systems in CNC applications . Its compact design allows for straightforward integration into control cabinets and machinery enclosures . Moreover, the module’s rugged construction ensures stable operation across a wide temperature range . Engineers can rely on this module for accurate stopping and holding of machinery components .
Application and Integration
The integrates into GE Fanuc CNC machining centers, robotic systems, and automated assembly lines . Consequently, it plays a critical role in maintaining operational accuracy during high-precision manufacturing processes . Since this module has reached end-of-life status, users should consider the Expansion ABK01A as the recommended replacement .
Details
| Weight | 0.35 kg |
|---|---|
| Dimensions | 102 × 51 × 87 mm |
