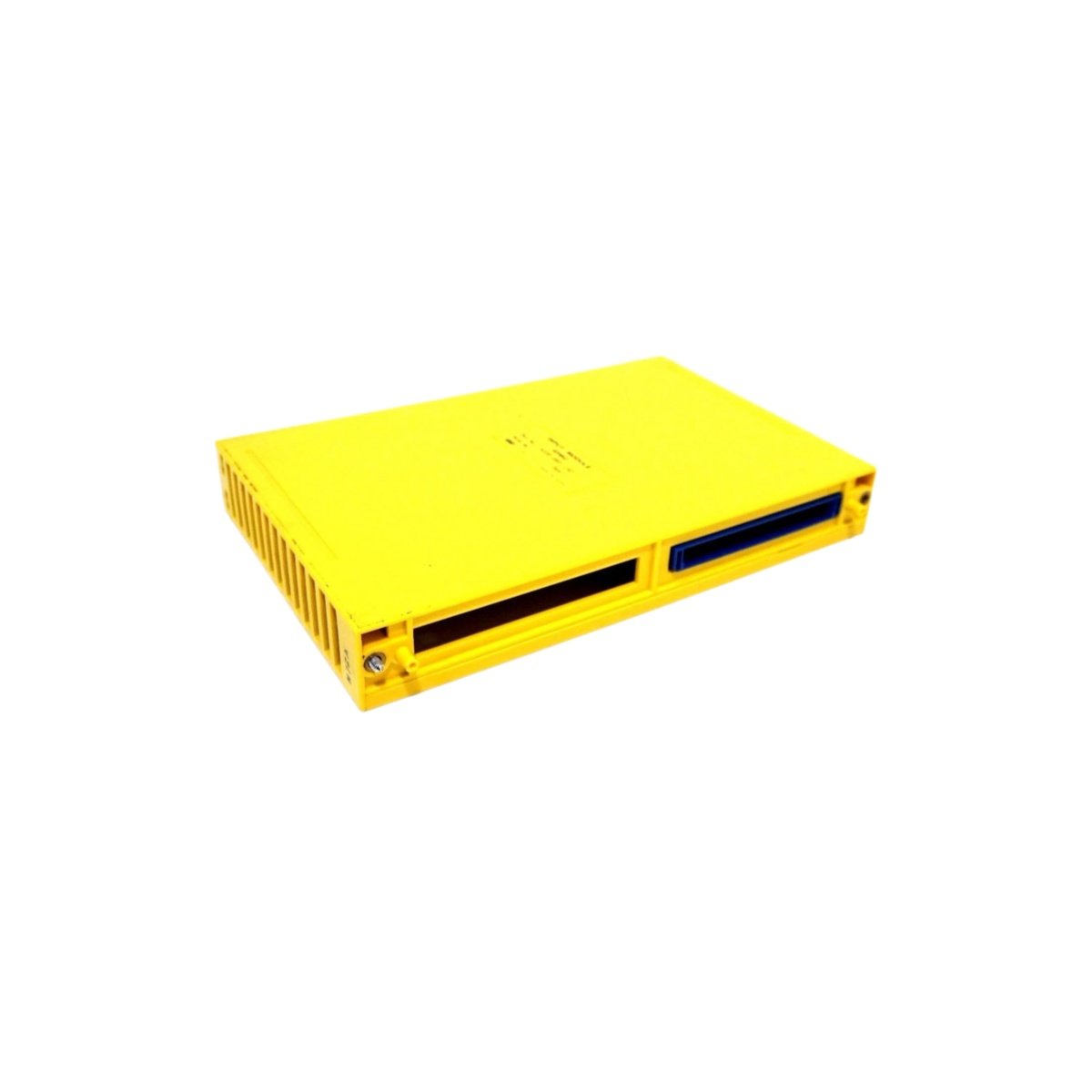

The A03B-0801-C421 operates as a DC input module inside GE Fanuc CNC and machine control assemblies. This compact unit measures about 7.9 inches long, 1.0 inch wide, and 5.9 inches high. Furthermore, it weighs roughly 0.6 pounds, so cabinet integration stays simple. Engineers specify the A03B-0801-C421 when they need dependable discrete signal acquisition near the machine tool.

Technical Specifications and Interface Details

The module accepts sixteen discrete DC input points, and it groups them for efficient field wiring. Specifically, each point handles 24 VDC nominal signals with defined logic thresholds. Additionally, LED indicators reveal channel status during operation and service. A keyed edge connector links the unit to the host backplane.

Energy Storage and Signal Conditioning

Internal capacitors on the A03B-0801-C421 provide local energy storage for clean input thresholds. Consequently, the module rejects electrical noise from motors and contactors. This filtering keeps logic readings stable in harsh machining environments. The input stages therefore respond consistently across repeated switching cycles.

Installation and Compatibility Notes

Because the A03B-0801-C421 slides into standard GE Fanuc racks, replacement takes only minutes. Technicians should confirm connector alignment before they apply power. Furthermore, routine inspection of edge contacts prevents intermittent signal faults. Always store spare modules in anti-static packaging to protect sensitive components.
