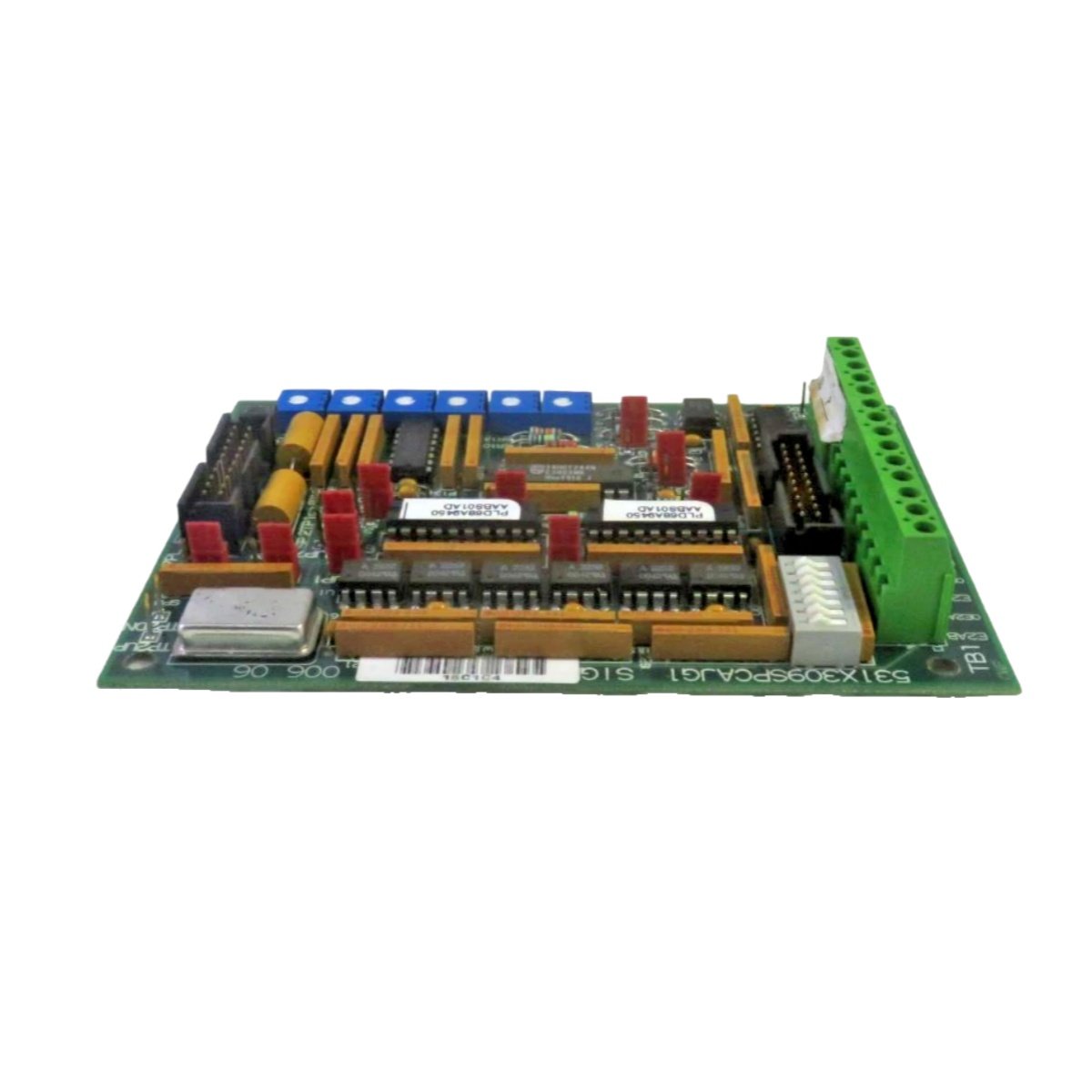

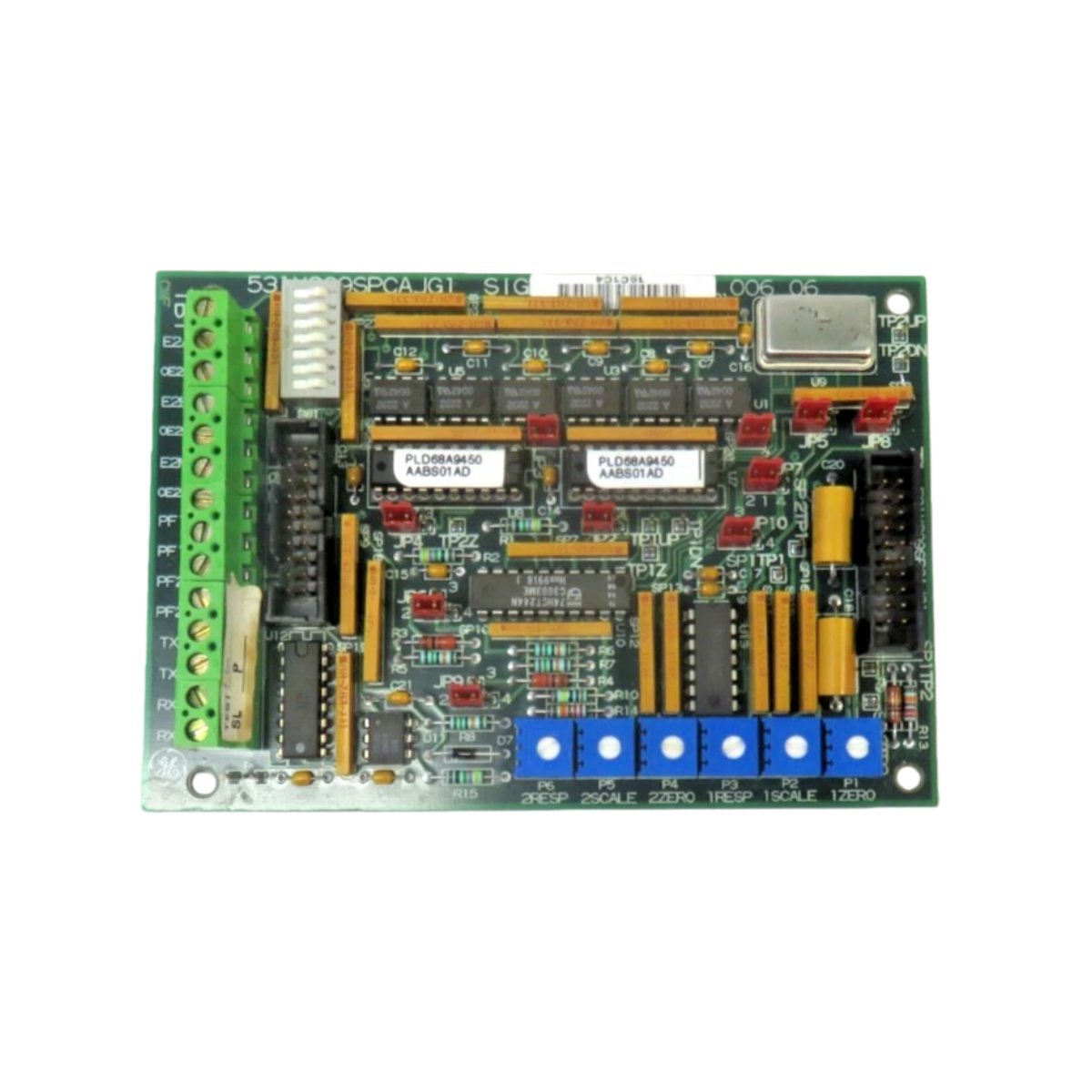

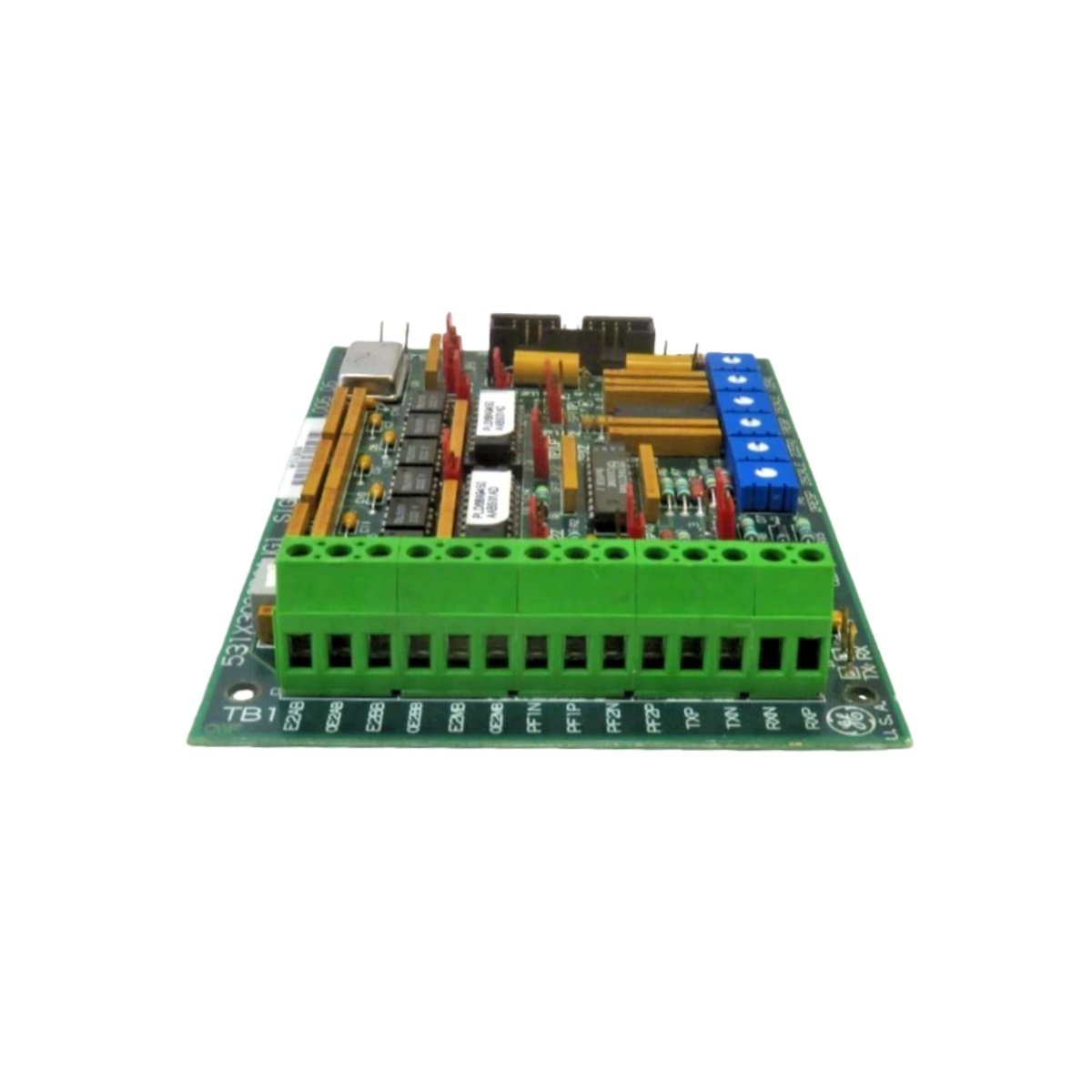

This signal processor card handles analog and digital signals for GE DC drive systems. It conditions input signals and provides output control for motor regulation. Therefore, this component suits speed control, torque management, and feedback processing.

Physical Dimensions and Weight Specifications

The GE 531X309SPCAJG1 features a standard PCB form factor for drive mounting. Its board dimensions measure 245 mm in height for vertical insertion. The total depth reaches 280 mm for backplane connectivity. Consequently, technicians can install this card in GE DC drive cabinets.

Interface Types and Connection Layout

The GE 531X309SPCAJG1 provides multiple pin headers for internal cabling. A 50-pin backplane connector carries power and data from the main controller. The board carries test points for diagnostic measurements. Hence, technicians can verify signal integrity using standard oscilloscope probes.

Component Count and Signal Processing

This signal processor card contains one main board with analog and digital sections. The board holds 8 analog input channels with 12-bit conversion. You will also find 6 analog output channels for actuator control. An onboard DSP chip handles filtering and scaling operations.

Energy Storage and Power Requirements

The GE 531X309SPCAJG1 draws 300 mA from the 5V backplane supply. It also requires 150 mA from an external ±15V supply for analog circuits. A small capacitor bank filters noise on all analog power rails. This storage ensures accurate signal conversion in noisy environments.

Processing Capability and Update Rate

The card samples all analog inputs within a 5 ms cycle time. It updates analog outputs every 2 ms for smooth control. Users can configure gain and offset settings via onboard jumpers. This flexibility supports various field devices without software changes.
