Technical Overview

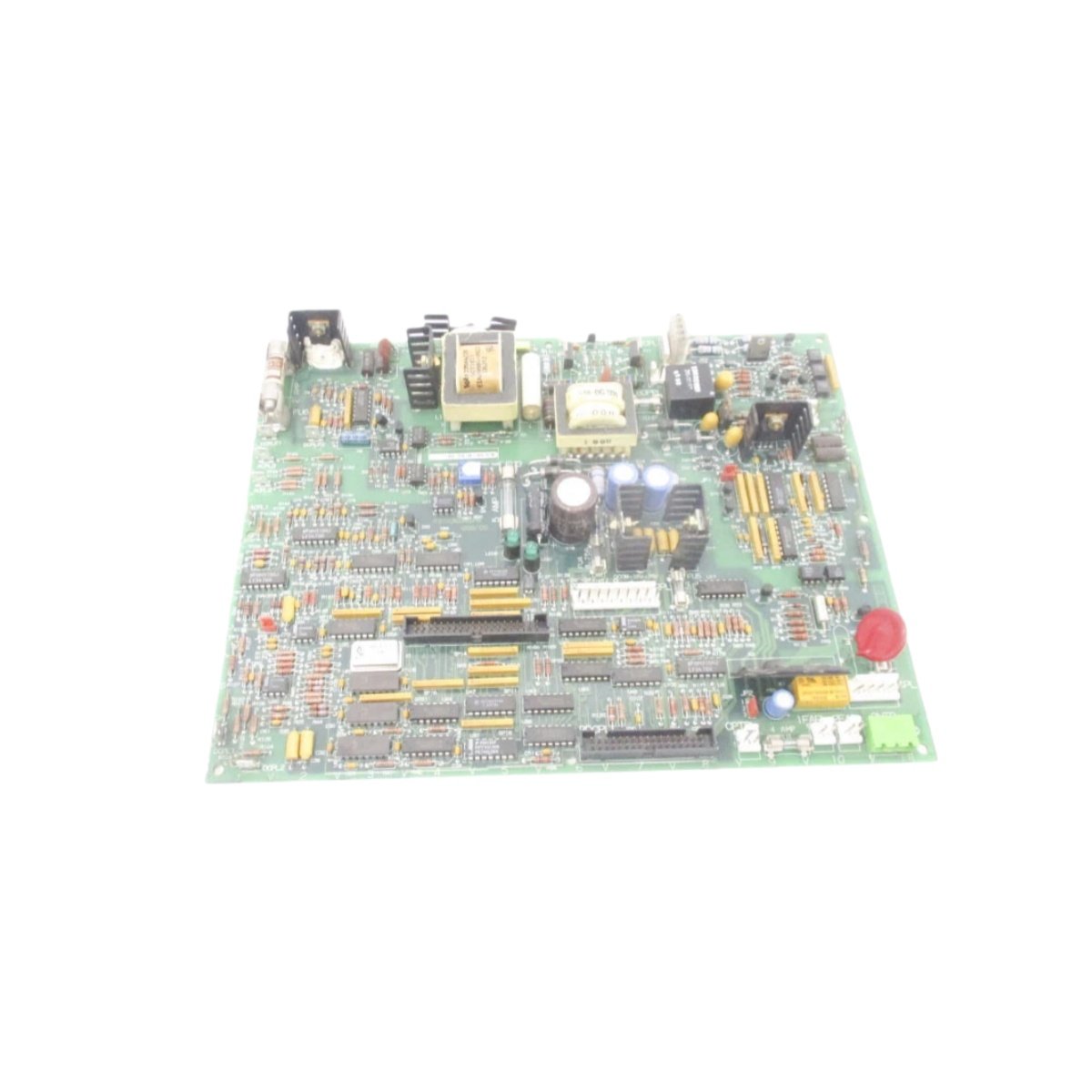

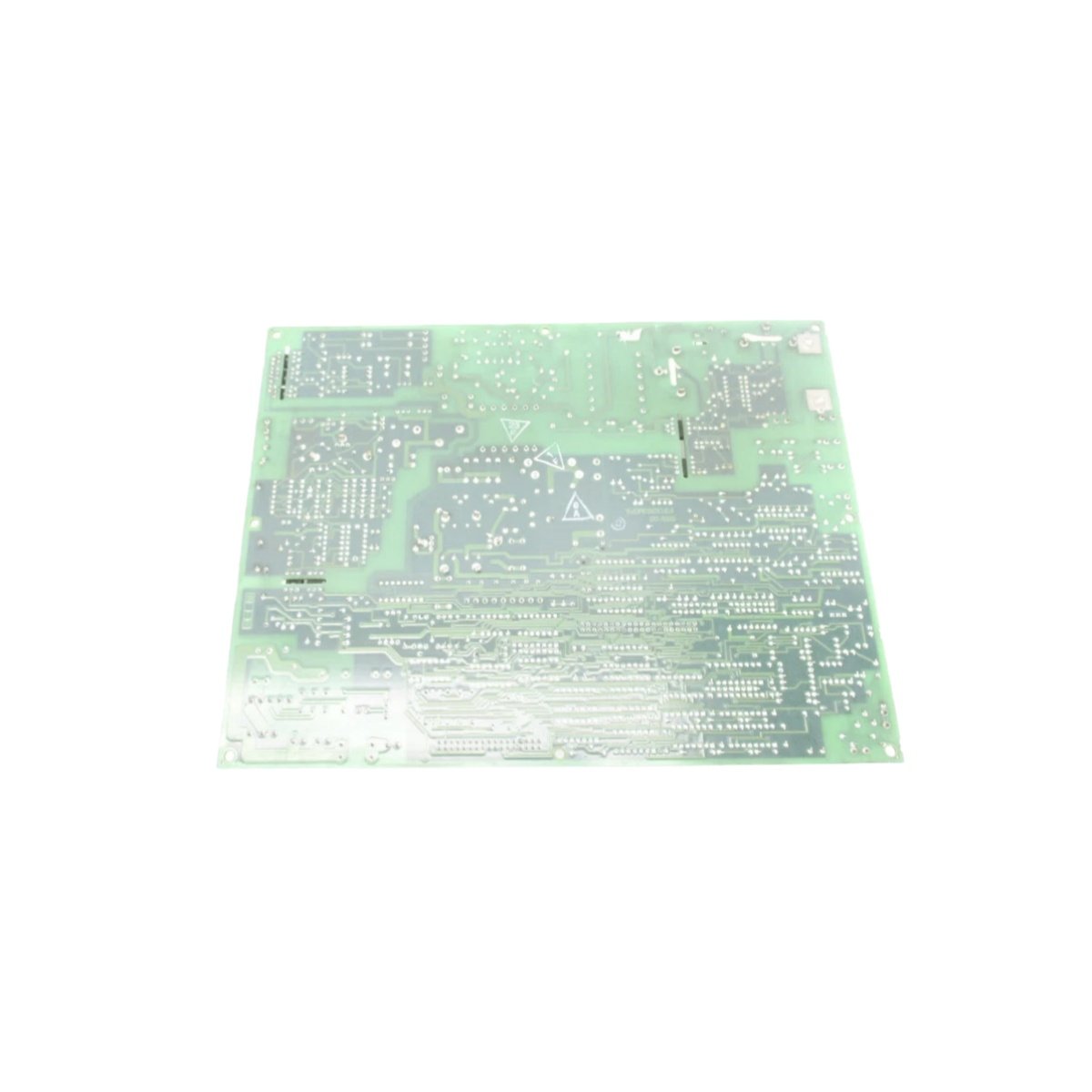

The GE 531X303MCPBCG1 functions as a dedicated power supply board for the DC-300 drive system. This board converts incoming AC voltage into stable DC power for control circuits. It delivers multiple regulated output voltages to various system components. Industrial drive applications depend on this module for consistent energy delivery.

Key Specifications

The 531X303MCPBCG1 measures 254 mm in length and 177.8 mm in width. This standard PCB size fits the DC-300 drive chassis. The board weighs approximately 0.8 kilograms. It accepts an input voltage range of 115 VAC or 230 VAC.

Power Conversion Architecture

This board employs a linear power supply design for clean and stable outputs. The internal transformer steps down the incoming AC voltage. Two bridge rectifiers then convert the AC to raw DC. Six electrolytic capacitors provide substantial energy storage for load transients. The 4700 μF bulk capacitance ensures minimal output ripple. Three separate linear regulators produce the +5V, +15V, and -15V outputs. The +5V rail delivers up to 5 A for logic circuits. The +15V and -15V rails supply 2 A and 1 A respectively for analog sections.

Connectivity and Protection Features

The GE 531X303MCPBCG1 uses a 3-pin header for AC input connections. An edge connector distributes the DC outputs to the backplane. A 2.5 A slow-blow fuse protects the primary side from overcurrent events. The board includes a green “Power OK” LED for visual status confirmation. This LED illuminates when all output voltages fall within tolerance. The design incorporates thermal shutdown protection against overheating. This safeguard prevents damage during excessive load conditions.

Installation and System Integration

Installing the 531X303MCPBCG1 requires a dedicated slot in the DC-300 drive rack. The board slides into the chassis and connects via the edge connector. You must select the correct input voltage via the jumper configuration. The module operates reliably between 0°C and 50°C ambient temperatures. Proper ventilation ensures optimal thermal performance. The board complies with industrial safety standards for power supplies.

Reliability and Maintenance

The 531X303MCPBCG1 uses high-grade electrolytic capacitors rated for 105°C. This rating extends operational life in warm environments. The linear design generates minimal electrical noise for sensitive controls. Regular maintenance includes inspecting the fuse and checking capacitor health. Replacing the board requires only a few minutes of downtime.
