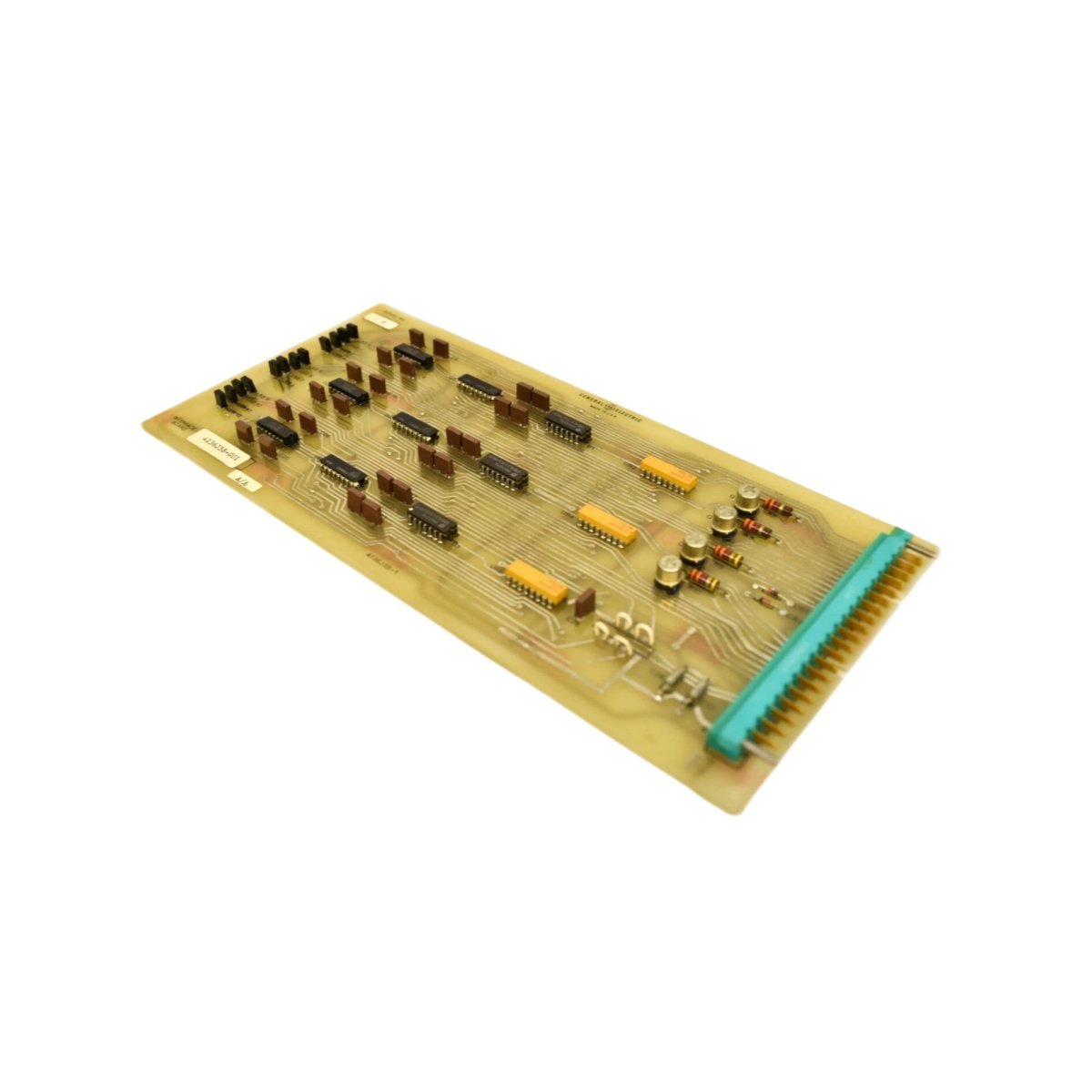

The 4136J58-G01 manages signal interfacing inside GE’s industrial control hardware range. This board measures roughly 10.0 inches long, 1.0 inch wide, and 6.0 inches high. Moreover, it weighs about 1.0 pound, which suits standard rack installation. Engineers specify the 4136J58-G01 when they need dependable signal routing between control stages.
Technical Specifications and Interface Details
The board routes discrete and analog signals between interconnected control assemblies. Specifically, it carries dedicated circuitry for level shifting and buffering. Additionally, multiple connector headers link the board to the host backplane. Front-panel LEDs reveal run and fault status during service.
| Parameter | Specification |
|---|---|
| Module Type | Interface Board |
| Function | Signal routing and buffering |
| Dimensions | 10.0 x 1.0 x 6.0 in |
| Weight | ~1.0 lb |
| Connectors | Backplane headers |
| Indicators | Run and fault LEDs |
| Mounting | Control rack |
| Application | Inter-stage signal transfer |
Energy Storage and Signal Stability
Internal capacitors on the 4136J58-G01 provide local energy storage for stable signal levels. Consequently, the board suppresses noise that could disturb connected control stages. This buffering also limits crosstalk between adjacent signal paths. The design therefore supports consistent performance across demanding plant conditions.
Installation and Compatibility Notes
Because the 4136J58-G01 slides into standard control racks, technicians complete replacement quickly. They should verify connector alignment before they apply power to the system. Furthermore, routine inspection of edge contacts prevents intermittent signal faults. Always store spare boards in anti-static packaging to protect sensitive components.
Details
| Weight | 1.5 kg |
|---|---|
| Dimensions | 278 × 194 × 42 mm |
