Analog Setpoint Controller for GE Drive and Excitation Systems

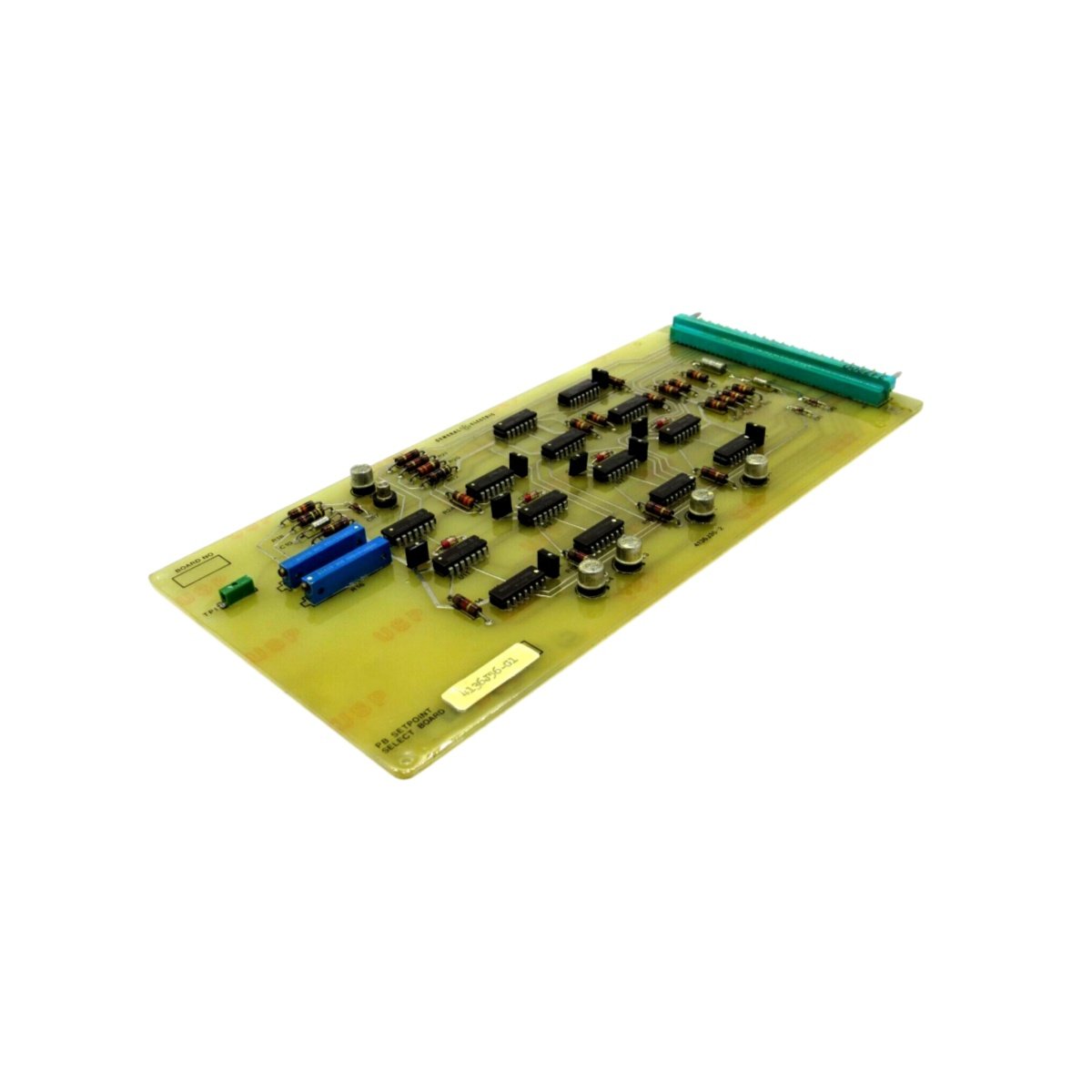

The 4136J56-G1 serves as a dedicated setpoint select board within GE’s industrial drive and excitation control platforms. Engineers deploy this printed circuit board to manage analog reference signals across power generation and motor control systems. Consequently, the board delivers stable setpoint selection for precise regulation of speed, voltage, and current loops.

Technical Specifications

Setpoint Selection Function

The board accepts multiple analog reference inputs and selects the active setpoint for the control loop. Engineers configure source priority through onboard jumper settings and wiring. Therefore, the 4136J56-G1 enables smooth transfer between local and remote command sources without disrupting drive operation.

System Integration

This board mounts within standard GE drive and excitation card cages. The edge connector interfaces directly with the backplane for signal and power distribution. Additionally, the module supports redundant reference paths for critical power generation applications. Proper grounding of analog commons minimizes noise on sensitive setpoint lines.

Application and Compatibility

Operators use this board across turbine control, generator excitation, and industrial drive systems. Engineers must verify compatibility with their specific drive model before ordering. Furthermore, the 4136J56-G1 suits legacy installations where original setpoint boards have failed or reached end of life. Qualified technicians should perform all replacement work with ESD precautions.
