Product Overview

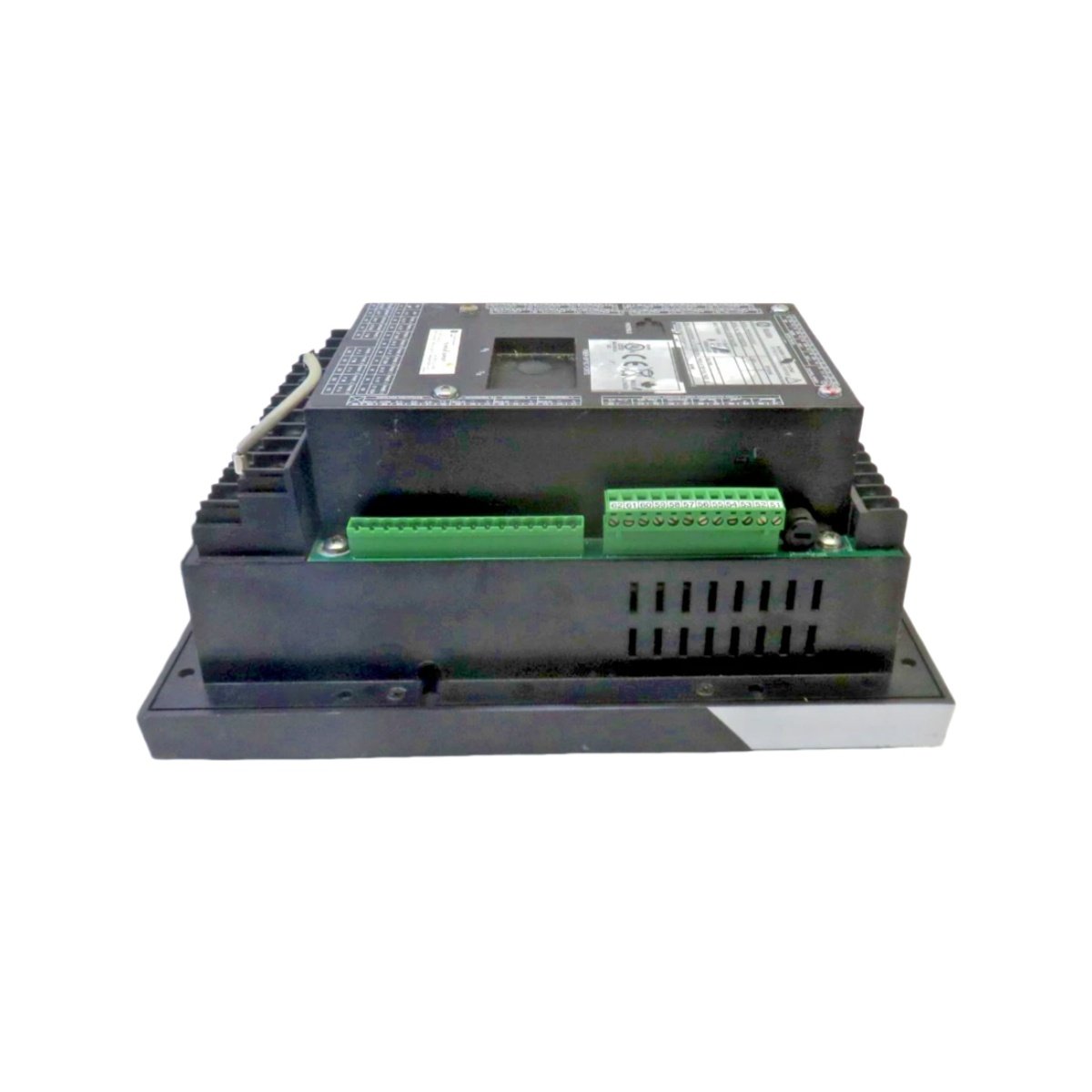

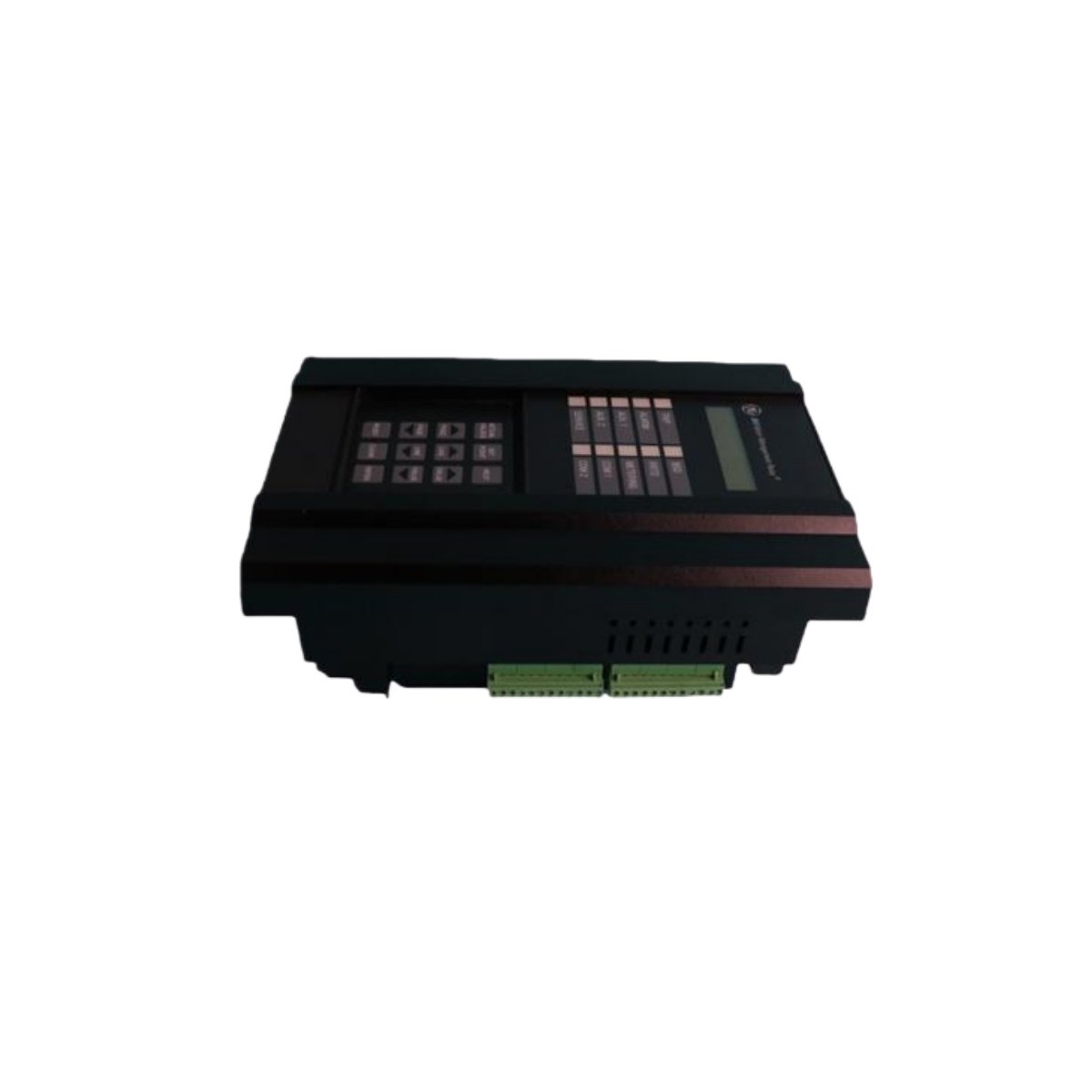

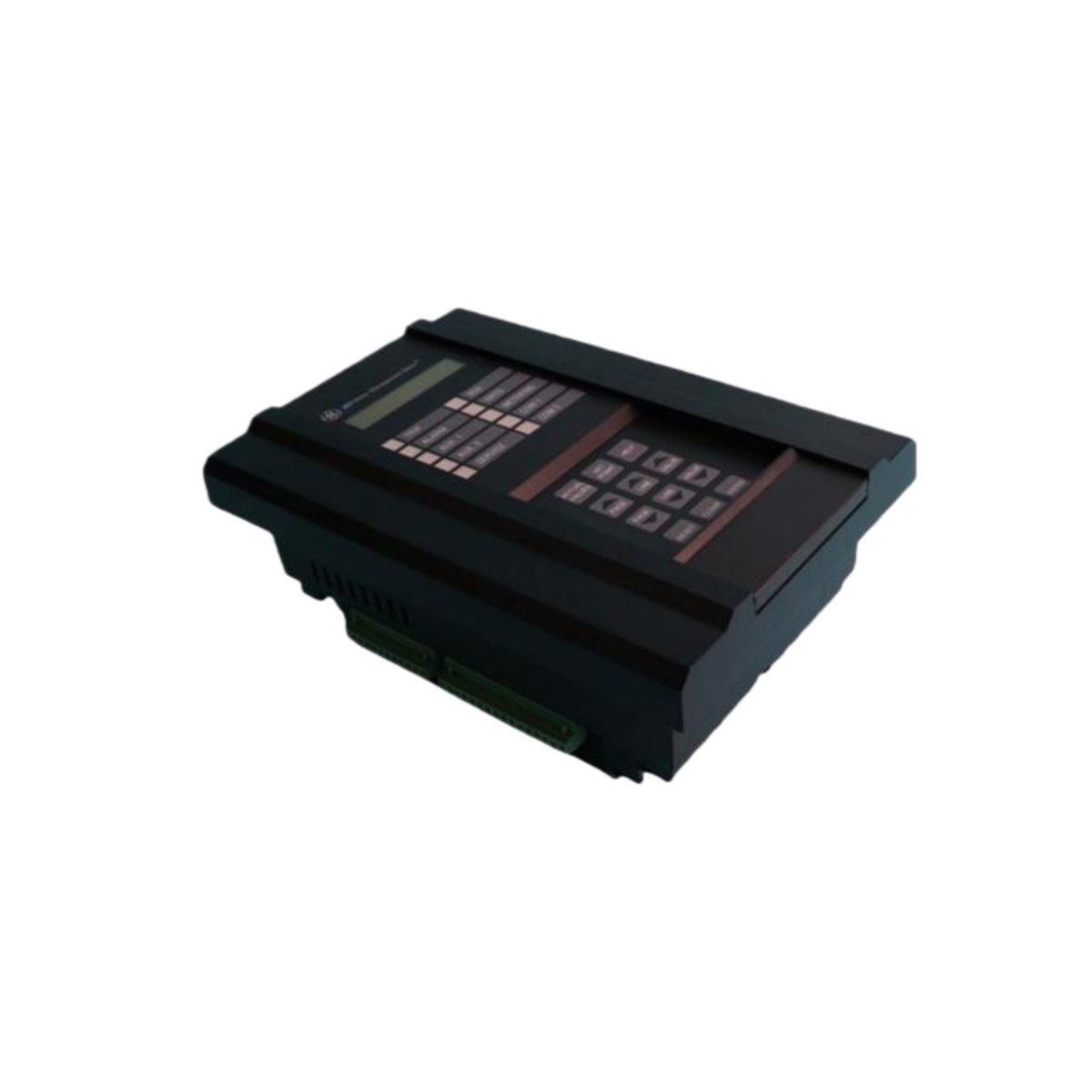

The GE 369-HI-R-0-0-0 motor protection relay provides comprehensive protection for medium and large induction motors in industrial applications. This device combines overcurrent, ground fault, and thermal overload protection in a single unit. It connects easily to existing motor control centers. The relay offers reliable safeguarding for critical motor assets.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 369-HI-R-0-0-0 |
| Product Type | Motor Protection Relay |
| Brand | GE (General Electric) |
| Category | Motor Protection Relays |
| Protection Functions | Overcurrent, ground fault, thermal overload, stall, jam |
| Input Voltage | 120/240V AC or 125V DC |
| Current Inputs | 3-phase CT inputs (5A) |
| Display | LCD with backlight |
| Communication | RS-232/RS-485 (optional) |
| Weight | Approximately 1.5 kg |
| Dimensions | 120 mm x 110 mm x 95 mm |
| Operating Temperature | -20°C to 60°C |
| Protection Class | IP20 |
Key Features and Benefits
Comprehensive Motor Protection
The 369-HI-R-0-0-0 includes overcurrent, ground fault, stall, and jam protection functions. It also offers thermal overload protection based on accurate thermal modeling. This coverage prevents costly motor damage and production downtime.
Flexible Power Supply Options
This relay accepts 120/240V AC or 125V DC input power. This flexibility accommodates various control panel configurations. Users can deploy the relay without additional power conversion equipment.
User-Friendly Interface
The device features a backlit LCD for clear status display and parameter access. The intuitive menu structure simplifies configuration. Operators can adjust settings and view fault records easily.
Application and Use Cases
The GE serves in pump stations, compressor units, and conveyor systems. It also provides protection in mixing and processing equipment. Maintenance engineers will find this relay essential for safeguarding valuable motor assets.
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 25 × 108 × 127 mm |
