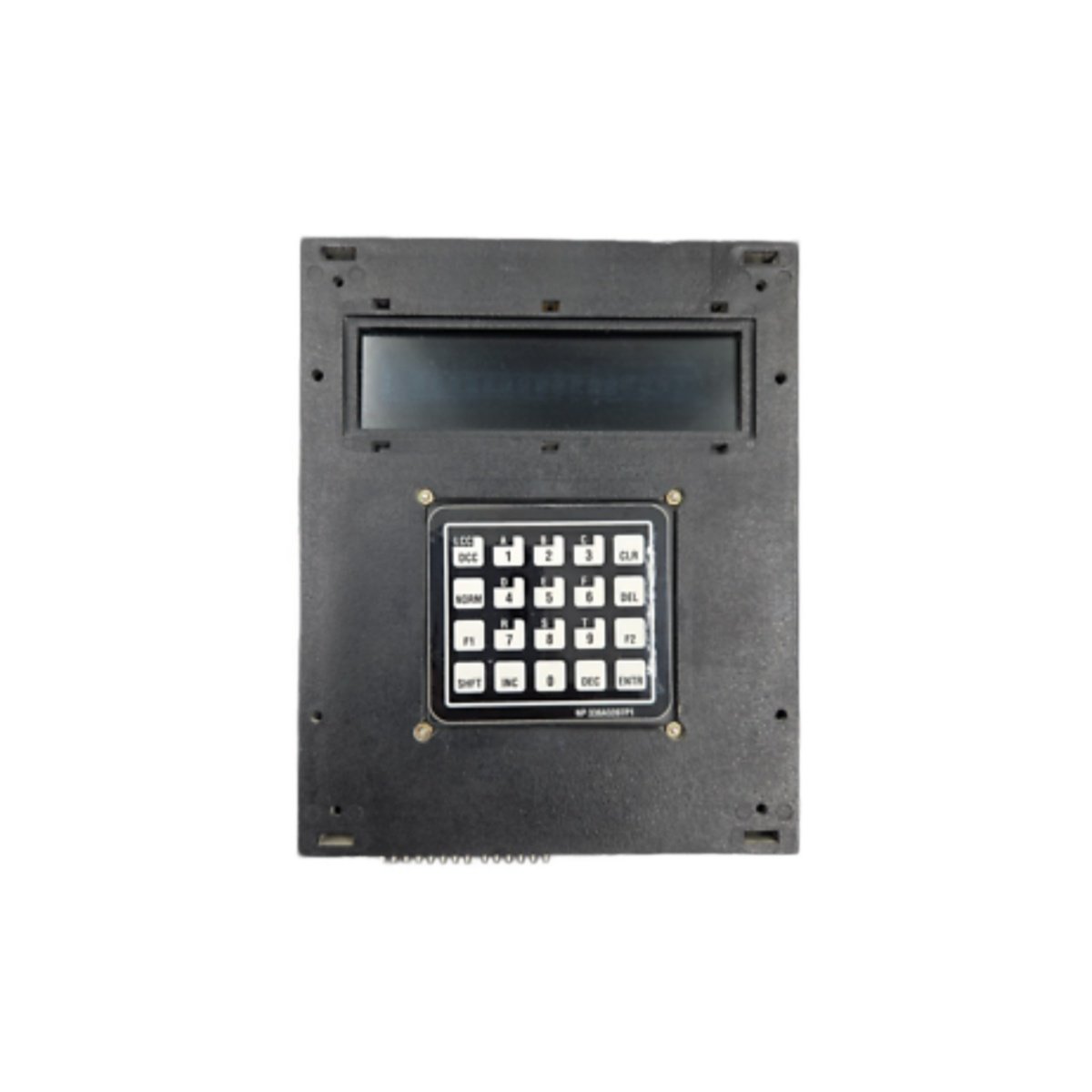

The complete model 336A3397P1 provides local operator interface for GE turbine control systems. This panel combines a graphical display with tactile keypad inputs. It allows technicians to monitor parameters and issue commands directly.

Technical Specifications

User Interface Features

336A3397P1 shows real-time turbine data on its LCD screen. Twenty membrane keys register operator inputs reliably. Six programmable function keys execute common commands quickly. The numeric keypad allows direct value entry for setpoints. 336A3397P1 updates the display every 500 milliseconds.

This display panel connects via a single ribbon cable interface. The monochrome screen operates in extreme temperature conditions. 336A3397P1 provides visual alarms for critical turbine parameters. It stores user preferences in non-volatile memory. The keypad provides tactile feedback for each key press.

Operational Functions

The display panel works with the main turbine controller seamlessly. It prioritizes alarm messages above routine data screens. 336A3397P1 cycles through multiple parameter groups automatically. Operators can override the auto-cycle using any key press. The panel confirms each command with an audible beep.

Physical and Installation Notes

Manufacturers reference manual GEH-6105 for all installation steps. Each 336A3397P1 unit undergoes complete functional testing. We clean every panel thoroughly before final shipment. This display panel mounts flush into a standard cutout. The unit weighs approximately 1.2 pounds for secure front-panel mounting.
