Technical Specifications and Board Design

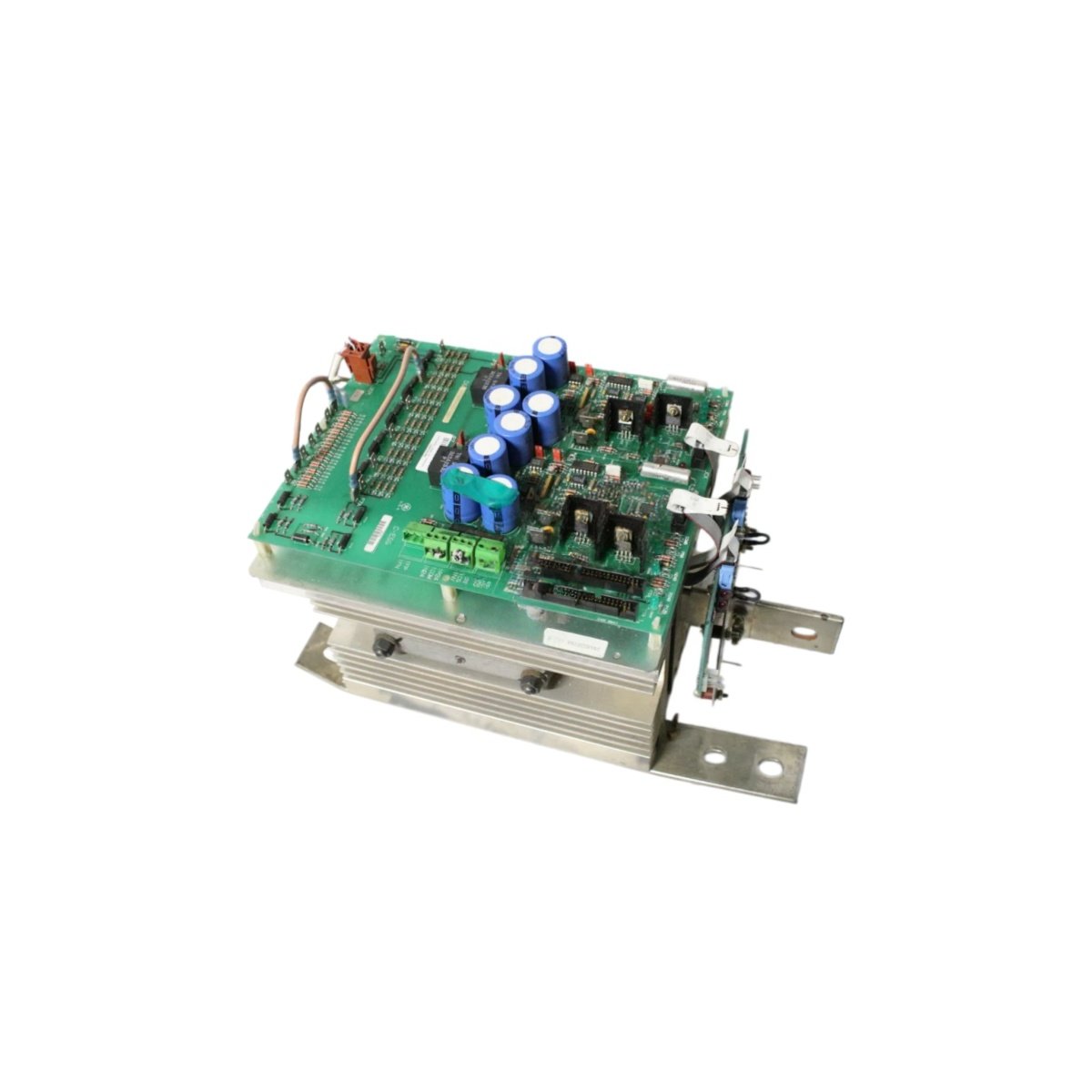

This exciter board provides field current control for GE Mark V generator systems. The GE 246B2357BA DS200EXDEG1ABA 4006L4114AAG001 regulates the generator rotor field excitation precisely. You can install this board into any standard Mark V rack slot position. Its high-power design handles continuous field currents up to 15 Amps. The board weighs approximately 0.72 kilograms. Its dimensions measure 28 cm in height, 18 cm in width, and 2.5 cm in depth.
| Parameter | Specification |
|---|---|
| Brand | GE Energy / General Electric |
| Model | 246B2357BA DS200EXDEG1ABA 4006L4114AAG001 |
| Category | Exciter Board / Generator Field Regulator Card |
| Weight | 0.72 kg |
| Height | 28 cm |
| Length | 18 cm |
| Thickness | 2.5 cm |
| Output Voltage Range | 0-250V DC |
| Output Current Range | 0-15 Amps continuous |
| Output Current Peak | 25 Amps for 10 seconds |
| Input Supply | 400-480V AC (3-phase) |
| Control Inputs | 4 analog (0-10V DC or 4-20 mA) |
| Status Outputs | 6 discrete (24V DC, 0.25A) |
| Field Flash Output | 1 channel (24V DC, 2A) |
| Regulation Accuracy | ±0.1% of rated output |
| Response Time | 20 milliseconds typical |
| Isolation Voltage | 3500V DC between power and logic |
| Energy Storage | DC bus capacitors (discharge in 30 seconds) |
| Component Count | Single PCB with power semiconductors, drivers, and control logic |
Field Regulation and Control Features
The board maintains the generator output voltage within tight tolerances. It uses a PID control loop for stable field regulation. The GE 246B2357BA DS200EXDEG1ABA 4006L4114AAG001 accepts voltage regulator commands from the main controller. It also supports manual field control during emergency operations. The board includes a field flashing circuit for initial generator build-up. This circuit applies a momentary voltage to the rotor field. A green LED indicates proper field regulation and control status.
Protection and Monitoring Capabilities
The board monitors field current and voltage for overexcitation conditions. It detects field ground faults and open circuits immediately. The GE 246B2357BA DS200EXDEG1ABA 4006L4114AAG001 initiates a field de-excitation within 5 milliseconds of a fault. It reports all diagnostic codes back to the turbine controller. The board includes a de-excitation contactor driver for emergency shutdowns. A red LED illuminates when any fault condition triggers the protection circuit. The board also monitors heatsink temperature for thermal overload protection.
Installation and Operational Guidelines
You must insert this board into a dedicated high-power slot in the Mark V rack. The backplane supplies 5V and 24V DC control power automatically. The GE 246B2357BA DS200EXDEG1ABA 4006L4114AAG001 requires external 3-phase AC input for the power section. You must wait 30 seconds after power-off before servicing the board. This waiting period allows the DC bus capacitors to discharge safely. You should verify all field wiring uses proper insulation for 250V DC. The board requires no external battery for normal excitation control operation.
