Technical Specifications and Card Design

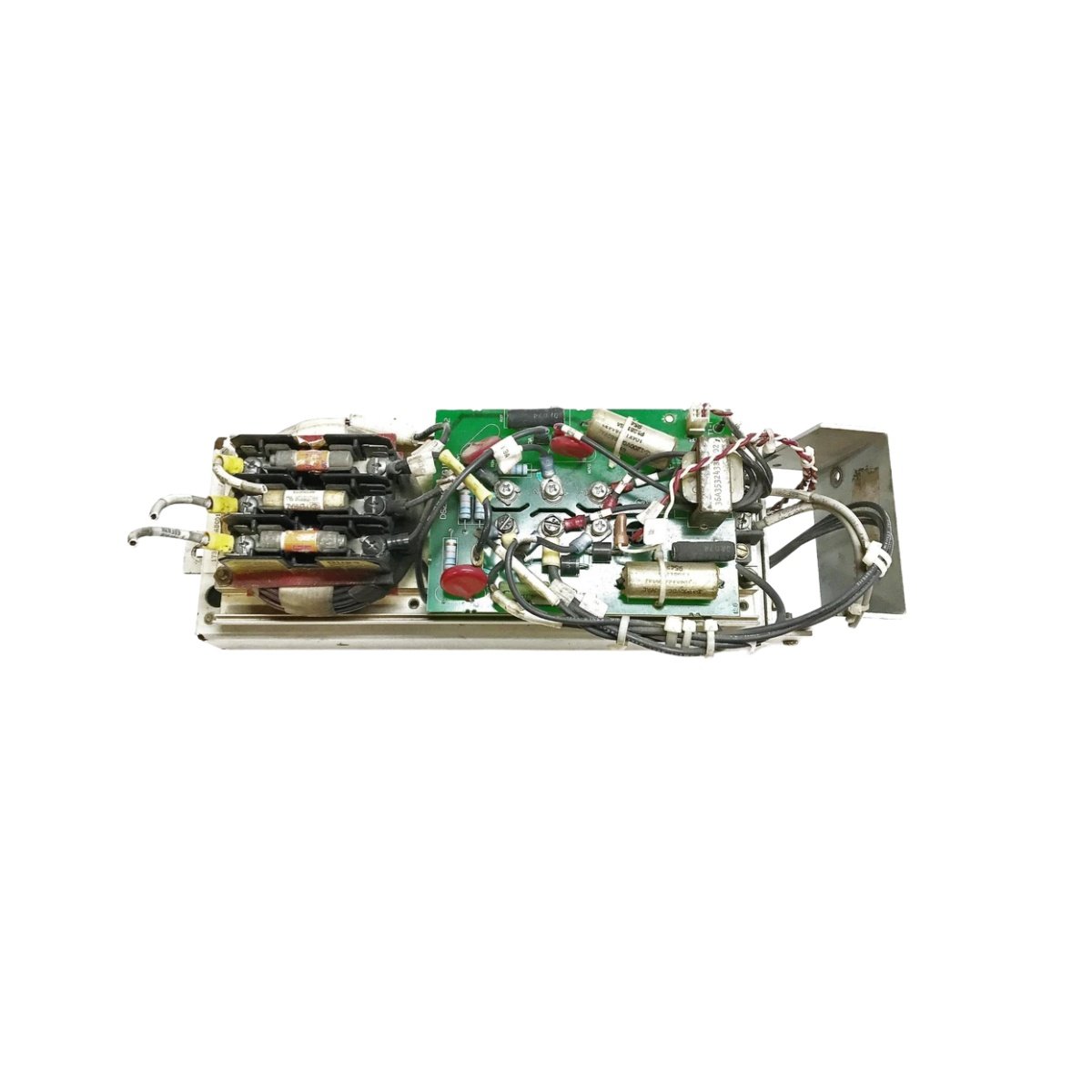

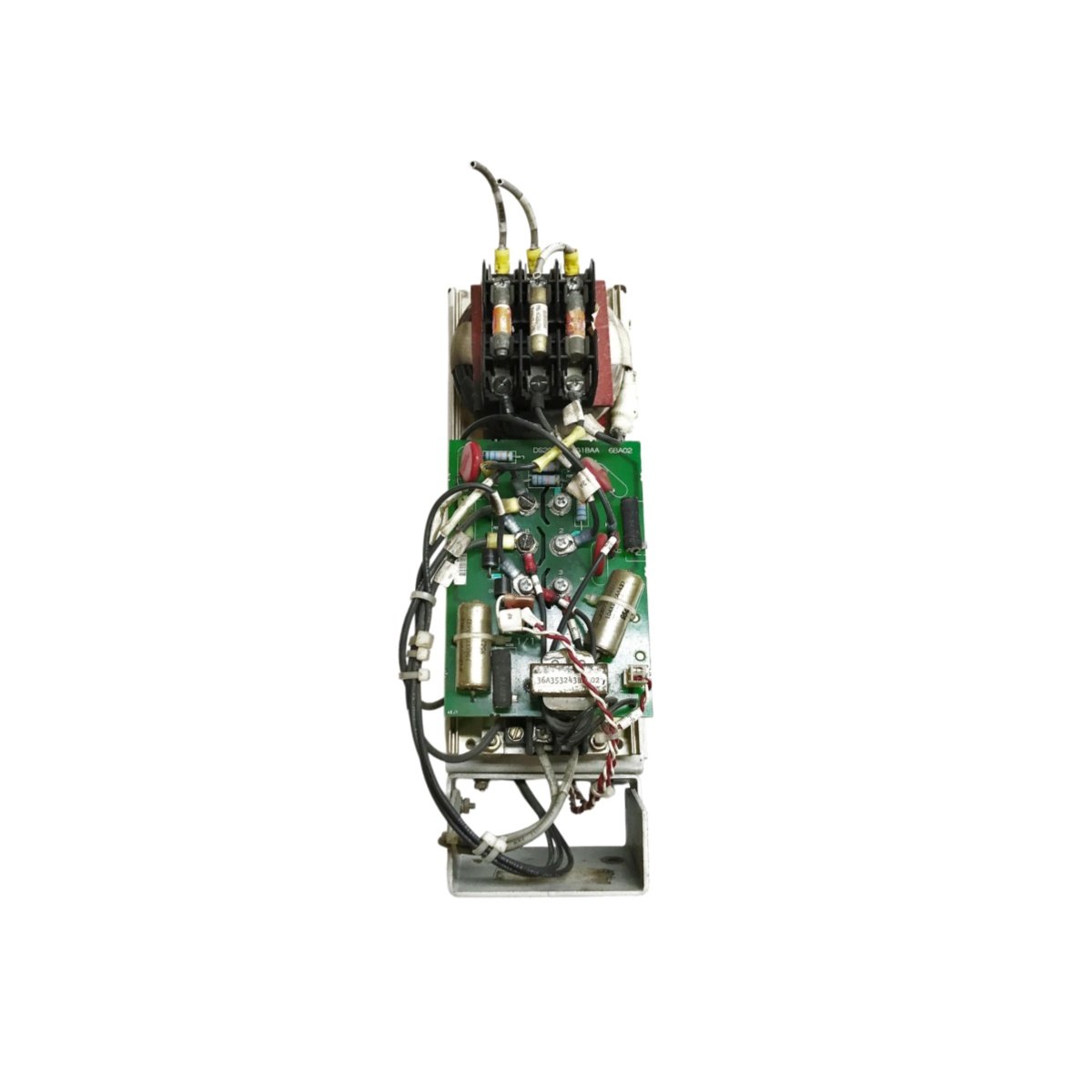

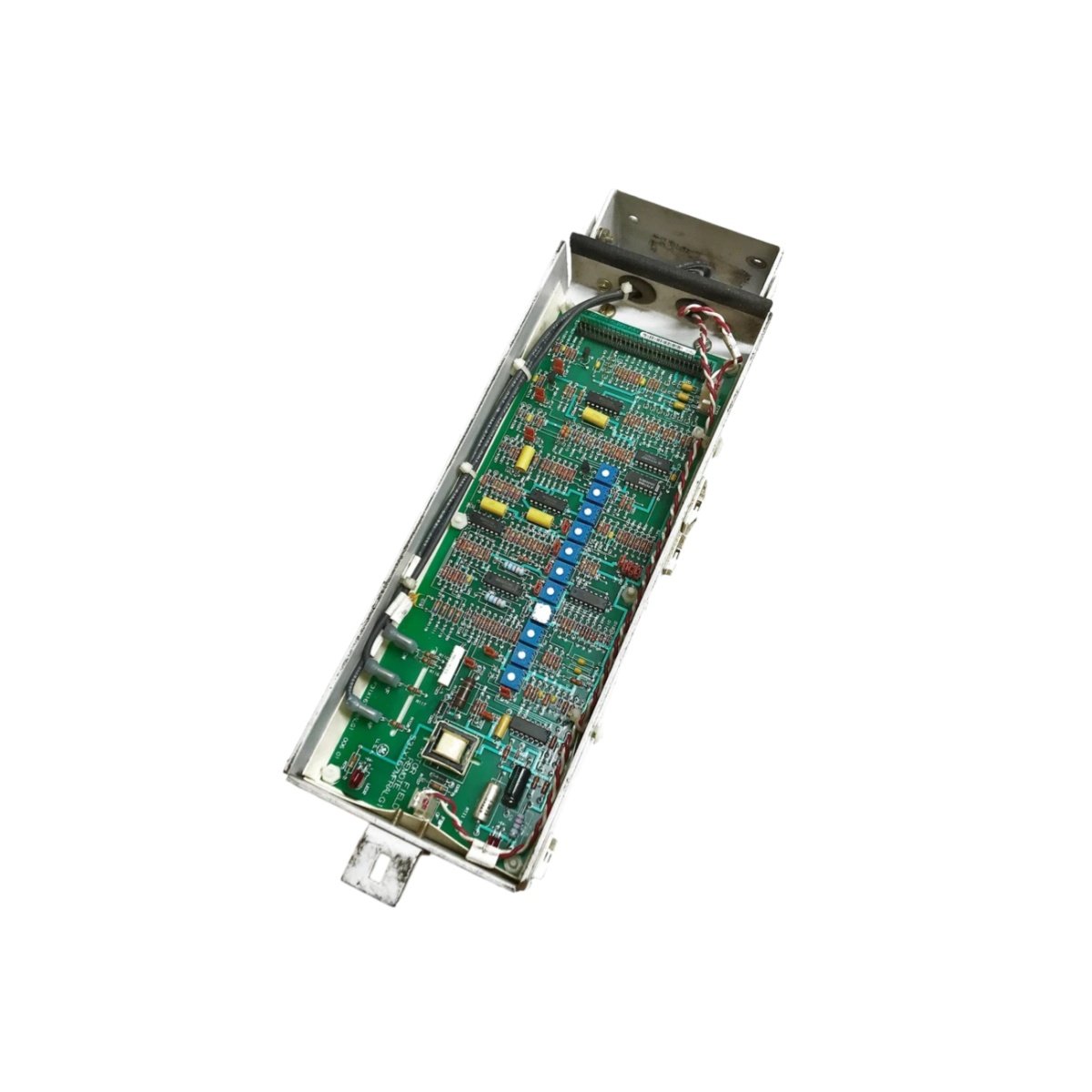

This control card provides system supervision for GE Mark V turbine controls. The GE 173C8989ADG01 WITH DS200SSBAG1BAA manages sequencing, protection, and communication tasks. You can install this card into any standard Mark V rack slot position. Its high-speed processor handles critical turbine control loops reliably. The card weighs approximately 0.56 kilograms. Its dimensions measure 28 cm in height, 18 cm in width, and 2.5 cm in depth.
| Parameter | Specification |
|---|---|
| Brand | GE Energy / General Electric |
| Model | 173C8989ADG01 WITH DS200SSBAG1BAA |
| Category | Control Card / System Supervisor Board |
| Weight | 0.56 kg |
| Height | 28 cm |
| Length | 18 cm |
| Thickness | 2.5 cm |
| Processor | 32-bit RISC (80 MHz) |
| Flash Memory | 8 MB for firmware and configuration |
| SRAM | 4 MB for runtime data |
| EEPROM | 512 KB for non-volatile parameters |
| Communication Ports | 1 x RS-232 (debug), 1 x RS-485 (local bus) |
| Backplane Interface | VME 32-bit parallel bus |
| Scan Rate | 1 millisecond for critical loops |
| Number of Control Loops | 16 PID loops (software configurable) |
| Energy Storage | None (no battery) |
| Component Count | Single PCB with CPU, memory ICs, bus interface, and watchdogs |
System Supervision and Control Functions
The card manages all turbine sequencing from start-up to shutdown. It executes safety-critical logic independently from communication tasks. The GE 173C8989ADG01 WITH DS200SSBAG1BAA monitors speed, temperature, and vibration continuously. It compares all values against programmed trip setpoints. The card also handles valve positioning and fuel control algorithms. A green LED indicates proper processor operation and self-test completion. The card logs all events and alarms to onboard non-volatile memory.
Redundancy and Fault Tolerance Features
This control card supports redundant configurations for critical turbine applications. Two cards operate in active-standby mode with automatic failover. The GE 173C8989ADG01 WITH DS200SSBAG1BAA synchronizes data between redundant units every scan cycle. It detects a partner card failure within 10 milliseconds. The standby card assumes control without any process disturbance. A yellow LED indicates when the card operates in standby mode. The card reports redundancy status back to the operator display panel.
Installation and Operational Guidelines
You must insert this card into a dedicated slot in the Mark V rack. The backplane supplies 5V DC power to the card automatically. The GE 173C8989ADG01 WITH DS200SSBAG1BAA draws approximately 380 mA from the 5V supply rail. You must configure the card’s address and redundancy mode before operation. Use the configuration software’s hardware tool for these settings. The card stores all parameters in non-volatile EEPROM memory. Therefore, it retains configuration during power cycles without a battery. You should verify firmware compatibility with your specific turbine model.
Details
| Weight | 0.45 kg |
|---|---|
| Dimensions | 254 × 178 × 5 mm |
