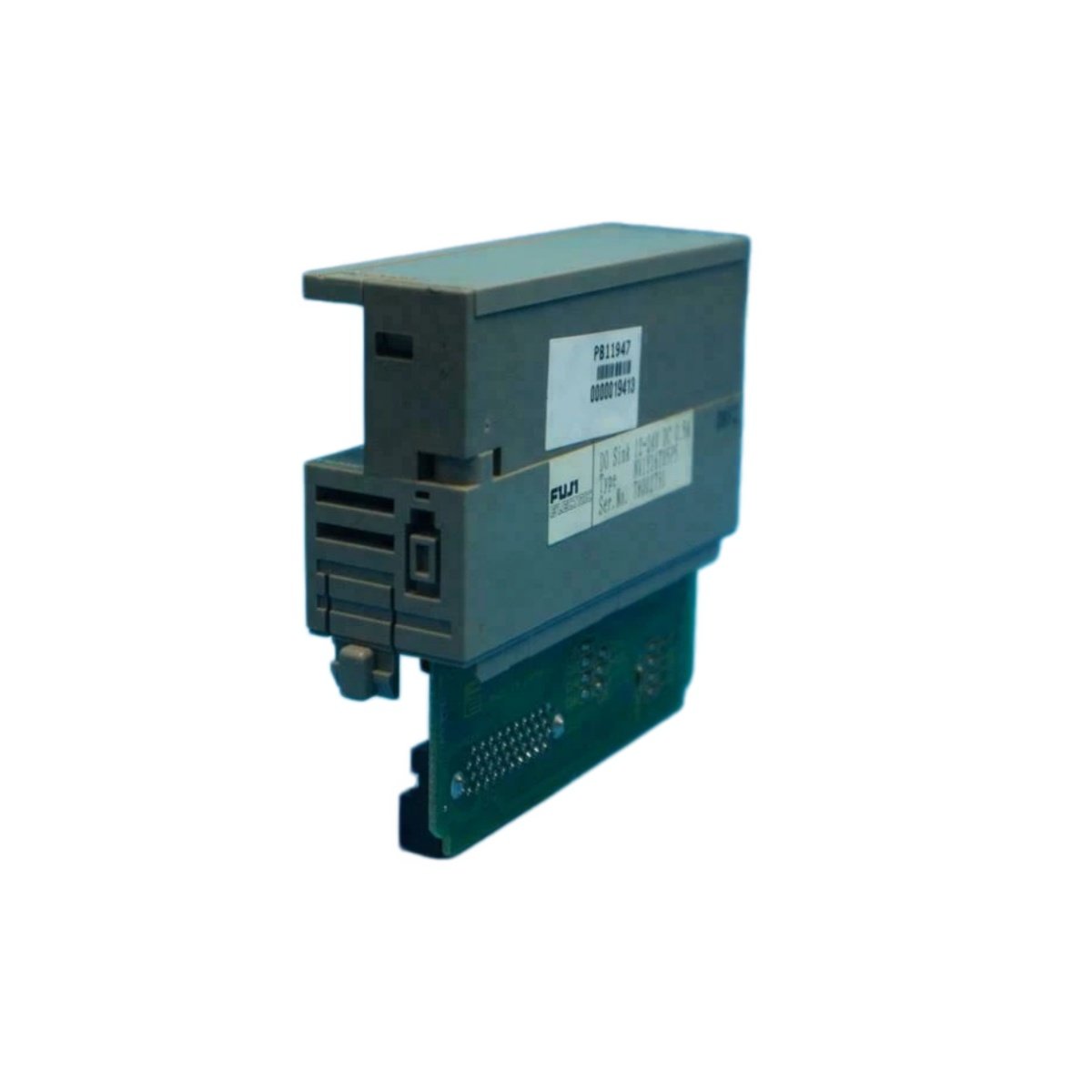

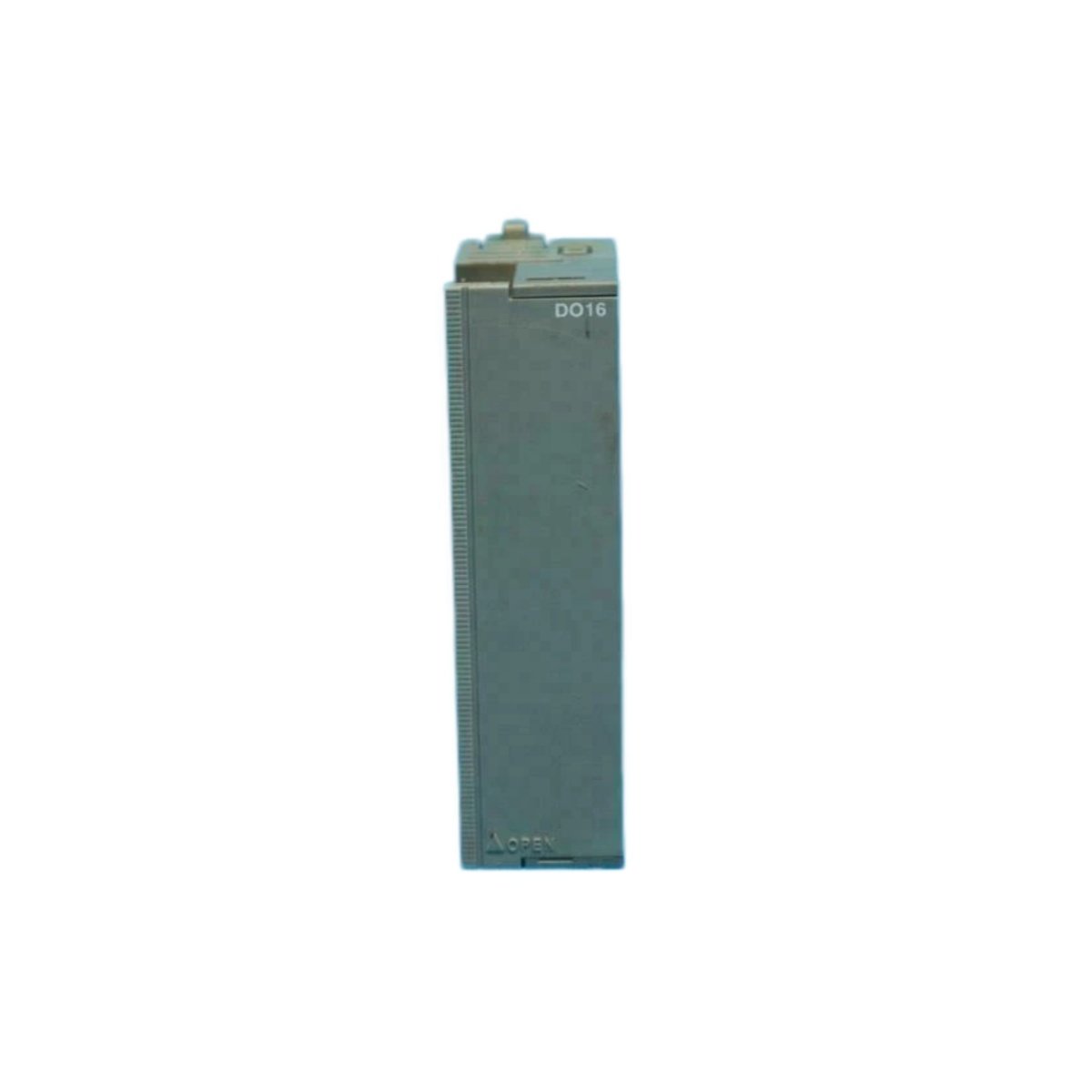

This digital output module provides reliable sinking output control for industrial actuators and indicators. It integrates seamlessly into the Fuji Electric NV series programmable controller platform. The unit controls up to sixteen independent load circuits from a single module slot. Users can drive solenoids, relay coils, and LED indicator lamps with consistent performance.

Output Channel Configuration and Electrical Specifications

This module features sixteen sinking output channels for positive-load control. Each channel delivers 0.5 A of continuous current at 24 V DC nominal voltage. The total current per common group reaches 4 A for combined load management. The output voltage ranges from 20.4 V to 28.8 V DC for stable operation. Each channel includes built-in short-circuit protection for reliable performance.

Sinking Output Configuration and Load Management

The NV1Y16T05P5 employs sinking transistor outputs for switching loads to ground. This configuration suits standard industrial control applications. Each output switches the negative side of the load circuit. Users can connect loads between the positive supply and the output terminals. The module organizes its sixteen outputs into groups for efficient load management. Consequently, users can control multiple actuators with a single module.

Switching Performance and Response Characteristics

This module achieves a typical switching time of 0.5 ms for reliable output activation. Turn-on delay measures approximately 0.1 ms for high-speed control applications. Each output includes built-in transient suppression for inductive load protection. This suppression extends the operational lifespan of connected field devices. Consequently, users experience reduced maintenance costs and fewer unexpected failures.

Diagnostic Functions and Fault Detection

This output module includes comprehensive diagnostic capabilities for reliable operation. It detects short-circuits on each channel and reports them to the CPU. The module also monitors overload conditions and limits current automatically. Diagnostic messages appear in the PLC program for operator response. Each channel includes a green LED that illuminates when the output remains active. A red “Fault” LED signals group-level errors for quick identification.

System Integration and Configuration

This module communicates with the NV series CPU through the dedicated backplane bus. It maps outputs directly to the PLC memory for straightforward programming. Users configure the module using the Fuji programming software environment. The software provides intuitive tools for diagnostics and parameter settings. Configuration data is stored in the CPU for automatic recognition. This plug-and-play design simplifies commissioning and module replacement.

Energy Consumption and Environmental Specifications

The module draws 40 mA at 5 V DC from the backplane for internal logic. External load power comes from the field supply via dedicated terminals. Power dissipation remains below 2 W under full operational load. Natural convection cooling maintains safe temperatures across all output channels. Consequently, the operating temperature range spans 0 °C to 55 °C for standard factory environments. Humidity tolerance reaches 10% to 90% without condensation concerns.

Installation and Space-Efficient Design

This module features a compact 45 mm width for efficient use of cabinet space. The narrow footprint enables high-density installations in compact control panels. Installers snap the unit onto a standard DIN rail without tools. The module connects to adjacent NV series modules via integrated bus connectors. A removable terminal block simplifies field wiring and maintenance. The housing carries an IP20 rating for protection against solid objects. This robust design suits packaging lines, conveyor systems, and assembly stations.
