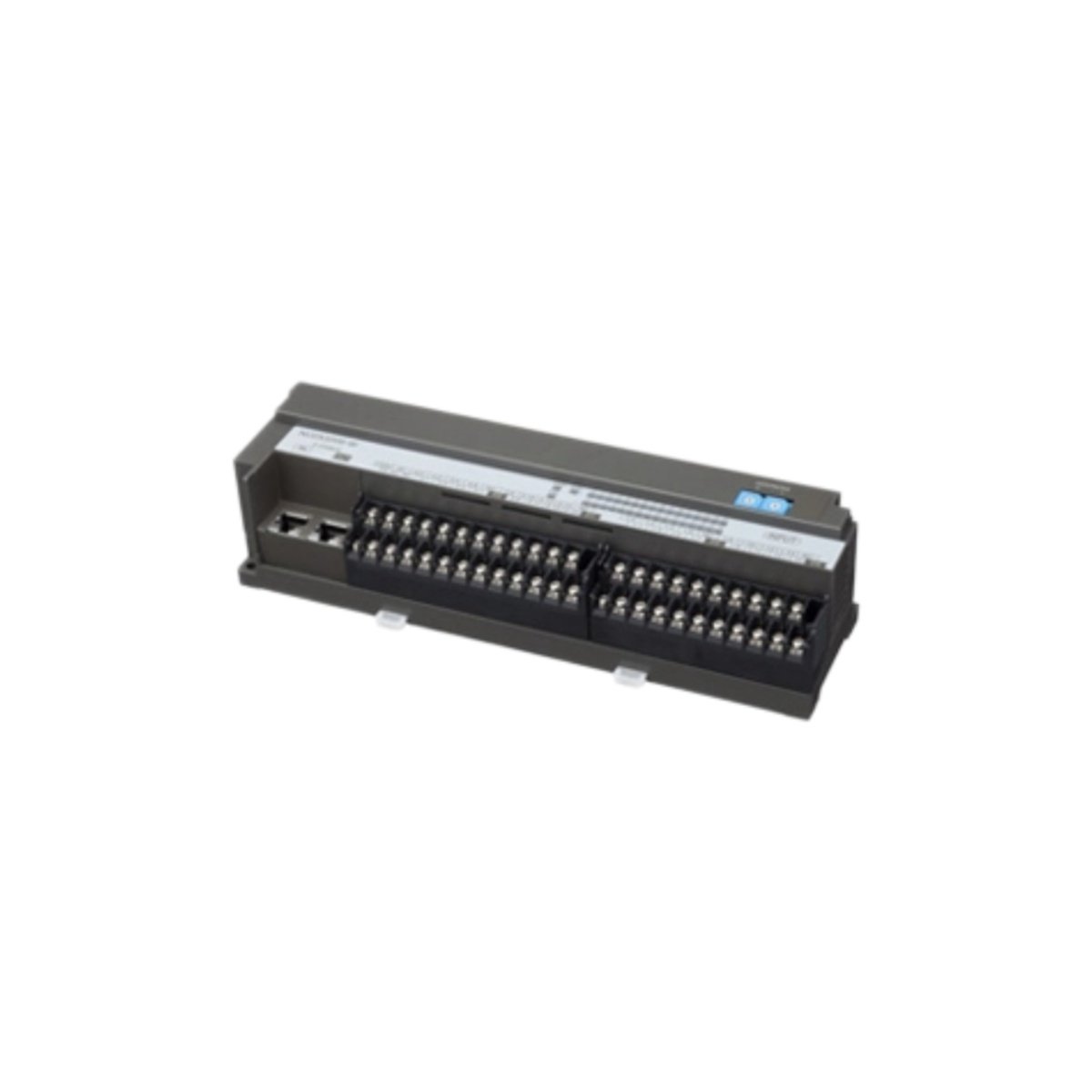

The Fuji NU2AYH2V-MR functions as an analog input/output unit for the NU series programmable controller family. This unit handles 4 analog channels for signal conditioning and data conversion . It achieves a conversion accuracy of 0.2% of full scale for reliable measurements . Consequently, this unit suits temperature, pressure, and flow monitoring applications.

Input and Output Configuration

The NU2AYH2V-MR provides configurable channels for voltage or current input signals . It accepts standard 0–10 V DC and 4–20 mA signals from field transmitters . The unit also delivers analog output signals for actuator control . Furthermore, it supports both single-ended and differential input configurations .

Conversion and Performance Specifications

This analog unit employs a 12-bit analog-to-digital converter for signal digitization . It completes a full conversion cycle within 2 milliseconds per channel . The Fuji NU2AYH2V-MR features an update rate of 1 millisecond for output channels . Additionally, it includes built-in filtering for noise immunity .

System Integration and Physical Design

The unit connects directly to the NU series backplane for power and communication . It weighs 0.3 kilograms and fits standard NU module dimensions . The NU2AYH2V-MR uses a 20-pin terminal block for field wiring connections . Its compact design conserves space in control cabinets .

Environmental and Operating Parameters

This analog unit operates on a 24 V DC supply with 80 mA consumption . It functions reliably from 0 to 55 °C ambient temperature . The Fuji NU2AYH2V-MR stores between -20 and 70 °C during idle periods . It meets standard industrial EMC and vibration requirements .
