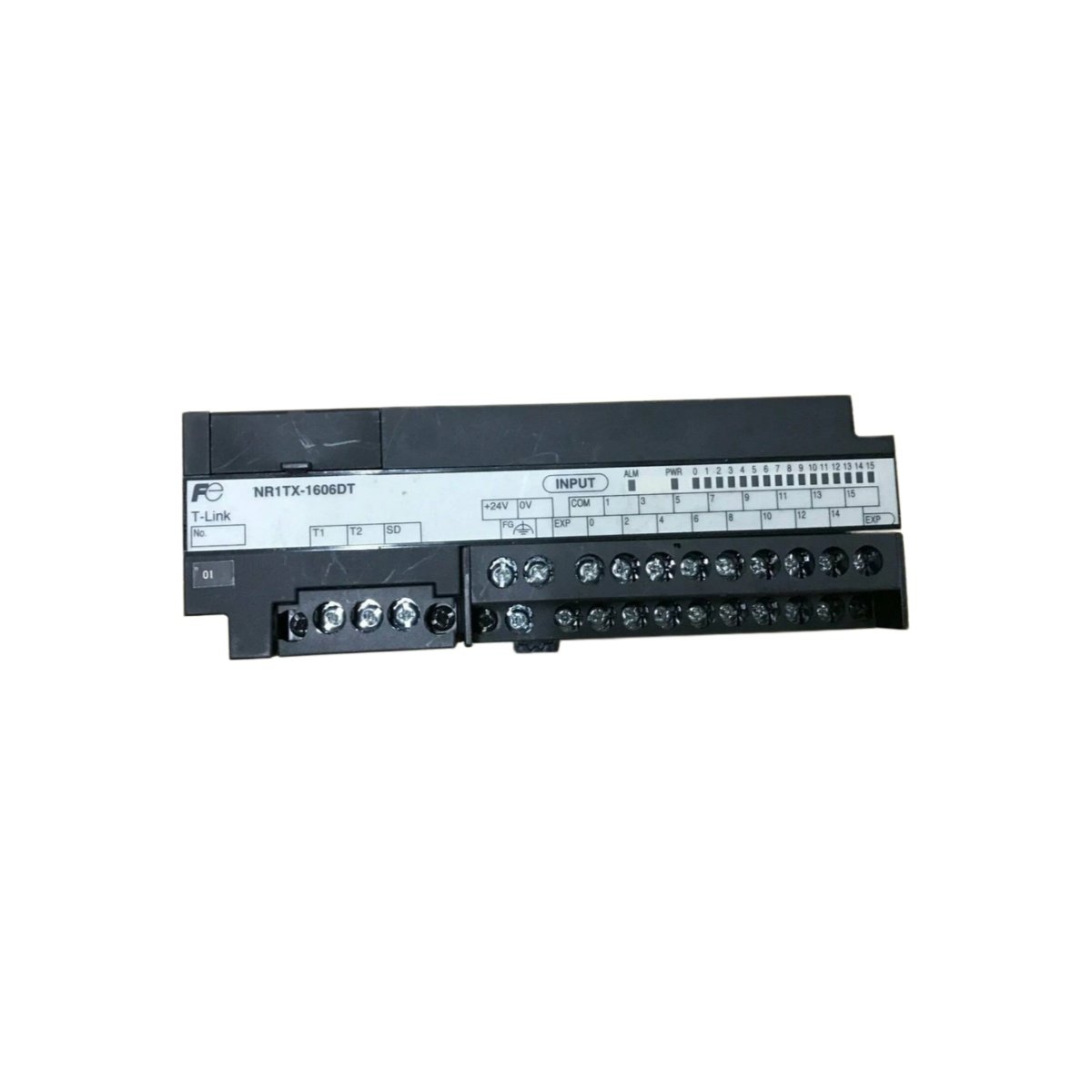

This PLC input module captures digital signals from field sensors and pushbuttons. It interfaces directly with 24 V DC proximity switches and limit switches. The device offers sixteen independent channels for discrete signal acquisition.

Technical Specifications

Mechanical Construction and Installation

This input module features a durable 52 mm wide housing for industrial control panels. Its DIN-rail mounting system enables rapid installation and effortless replacement. The unit weighs just 0.22 kilograms for easy handling. All field wiring connects through a front-accessible terminal block.

Power Supply and Electrical Characteristics

The device operates from a standard 24 V DC supply with a ±20 percent tolerance. The internal logic consumes only 50 milliamperes of current. The module includes reverse polarity protection for the supply input. Each input channel draws approximately 7 milliamperes when active.

Input Configuration and Signal Detection

Sixteen digital inputs accept signals from a variety of field devices. The module supports both sink and source wiring configurations. The ON threshold sits at 15 V DC or higher for reliable detection. The OFF threshold falls at 5 V DC or lower for noise immunity. This hysteresis ensures stable readings in electrically noisy environments.

Response Speed and Scanning Performance

The input response time reaches 2 milliseconds for OFF-to-ON transitions. The ON-to-OFF response takes slightly longer at 3 milliseconds. This fast response suits high-speed counting and positioning applications. The module updates all channels simultaneously during each scan cycle.

Isolation and Noise Immunity

The module provides 1500 V RMS galvanic isolation between field and logic circuits. This isolation protects the PLC backplane from voltage spikes. The inputs also feature built-in RC filtering for noise suppression. These features guarantee reliable operation in harsh factory environments.

Diagnostic Feedback and Status Indication

Sixteen green LEDs display the real-time status of each input channel individually. An LED illuminates whenever its corresponding input receives an active signal. This visual feedback simplifies troubleshooting and system validation. A single red LED indicates any module-level fault conditions.

Energy Storage and Transient Protection

Internal capacitors provide filtering for the supply voltage rail. These capacitors also suppress transients from external inductive loads. The input circuits include clamping diodes for overvoltage protection. This clamping prevents damage from accidental connection to higher voltages.

Application Suitability

This input module serves a wide range of discrete control applications. It works effectively with limit switches, photoelectric sensors, and proximity detectors. The device also accepts pushbutton and selector switch signals. Its operating temperature range spans from -10°C to +55°C.
