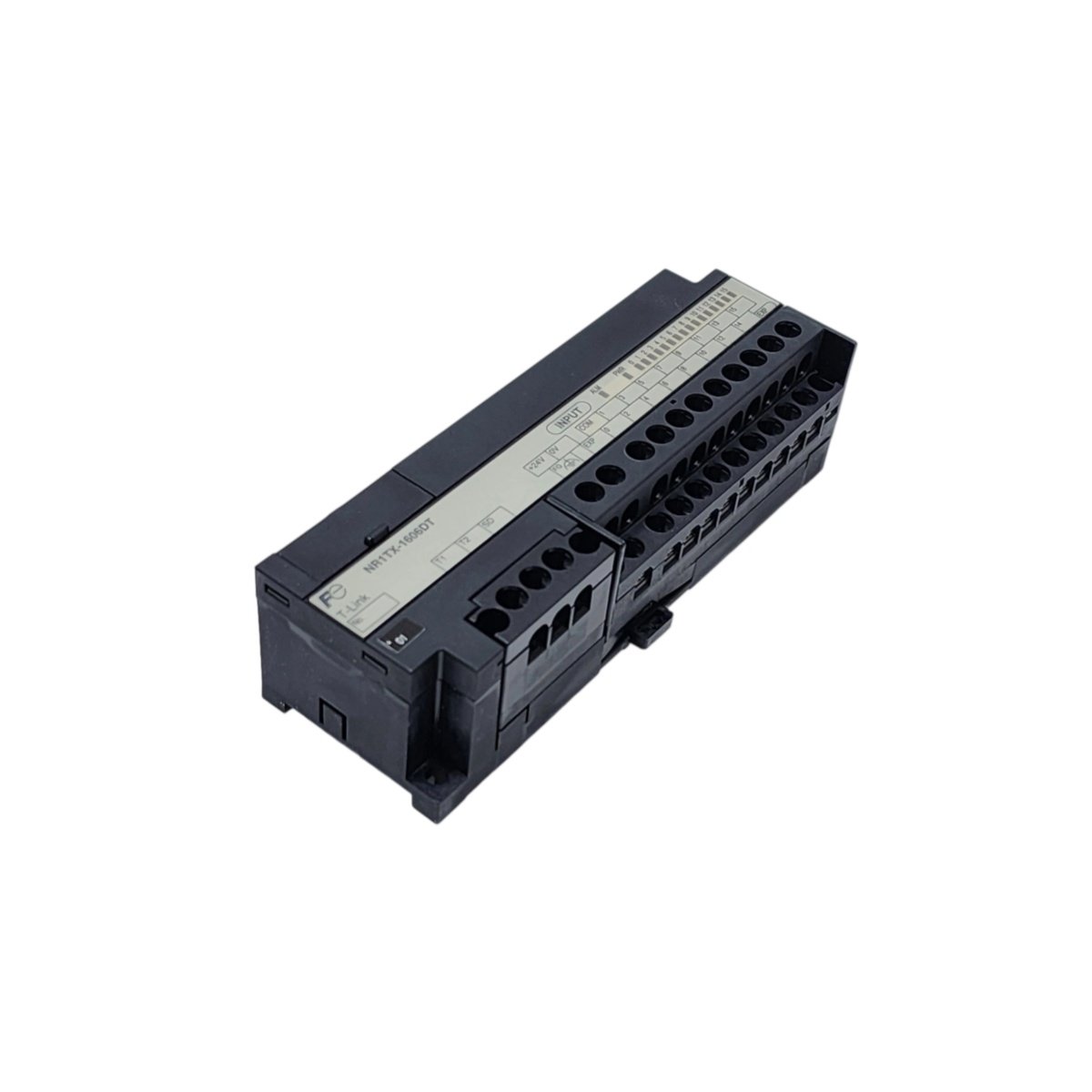

The Fuji NR1JX-1606DT PLC module manages digital logic control for industrial automation systems. Engineers rely on this unit for dependable program execution across manufacturing environments. Moreover, its compact housing supports straightforward integration into existing control panels.

Interface and Connectivity

The module connects through a dedicated backplane connector for fast data exchange. Additionally, it provides sixteen input points and six output points for field devices. These terminals support 24 VDC signals, therefore covering common industrial wiring standards. Field wiring uses screw-terminal blocks that reduce installation time considerably.

Physical Dimensions and Weight

The unit measures 28.6 mm in width, 100 mm in height, and 90 mm in depth. Furthermore, it weighs approximately 150 grams, which reduces panel load. Consequently, technicians mount it easily on standard DIN rails.

Component Count and Energy Storage

The NR1JX-1606DT integrates sixteen optocoupler isolation circuits for input protection. It also contains one backup capacitor rated at 220 µF for data retention. Therefore, this energy storage element preserves configuration memory during brief power interruptions. The board carries roughly 160 discrete components for dependable operation.

Technical Specifications Table

Why This Module Suits Industrial Applications

System integrators value the NR1JX-1606DT for its stable logic control and simple wiring. Meanwhile, the optocoupler isolation protects sensitive circuits from voltage spikes. As a result, system reliability improves while maintenance costs decrease.
