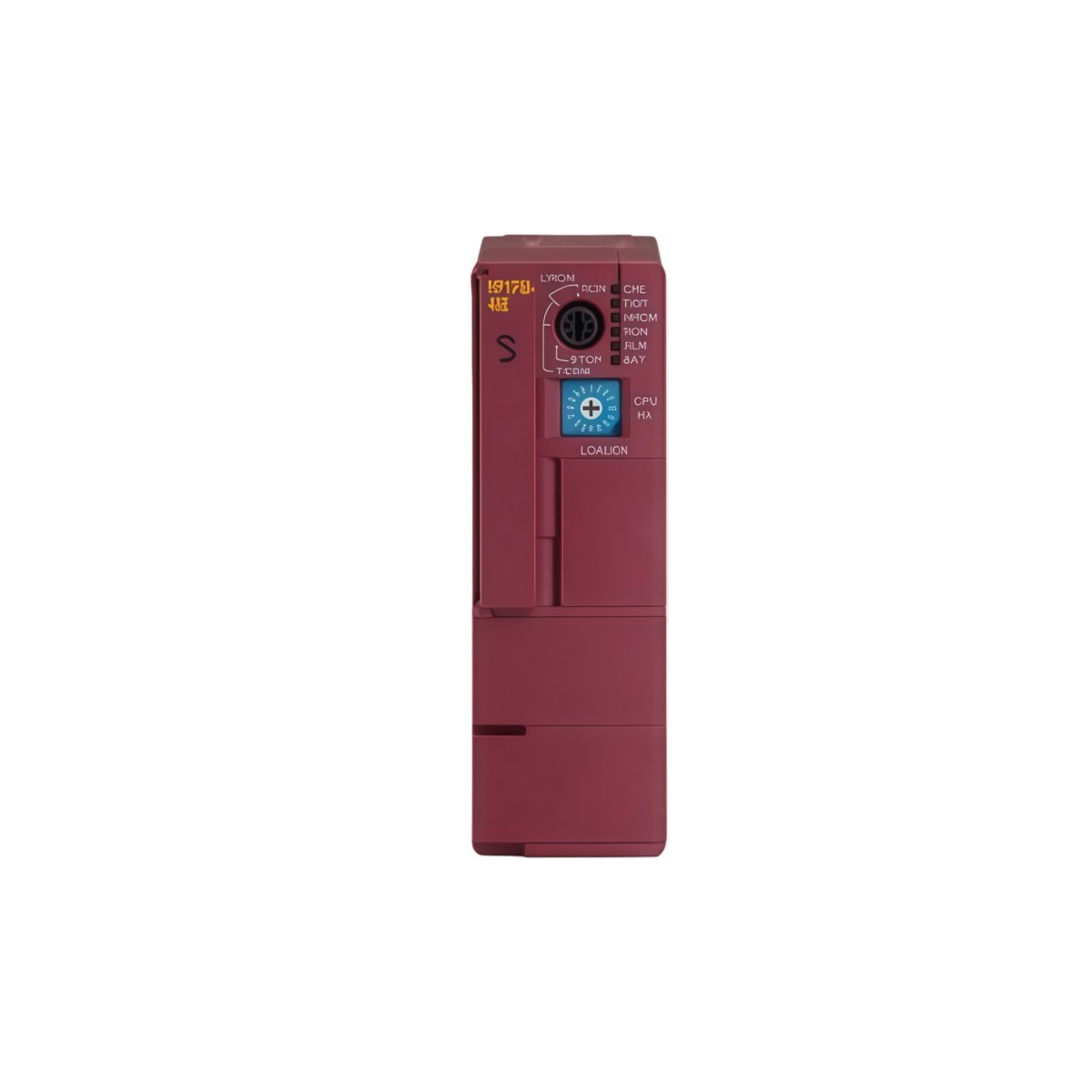

This remote I/O terminal provides distributed control capabilities for MICREX-SX SPH systems. It connects field devices to the main controller through OPCN-1 network interfaces. System engineers deploy this module for efficient data acquisition across large manufacturing facilities. Its distributed architecture reduces wiring costs and simplifies system expansion significantly.
I/O Architecture and Field Connectivity
The Fuji NR1JW-16T65DT offers 16 discrete input points for sensor and switch connections. Its output channels provide 0.5 A per point for controlling relays and solenoids. Each input channel accepts 24 VDC signals from standard industrial field devices. The module delivers reliable performance with response times of 3 ms or less. Furthermore, photocoupler isolation protects the control system from electrical noise and transients.
Network Communication and Protocol Support
This module supports OPCN-1 network communication with a transmission speed of 250 Kbps to 1 Mbps. The network distance reaches up to 800 meters depending on the selected baud rate. The module occupies 1 word of memory for every 16 I/O points in the system. Users can connect up to 31 stations in a multi-drop bus topology. Consequently, this module enables flexible system configurations across extensive plant areas.
Mechanical Design and Physical Specifications
The Fuji NR1JW-16T65DT measures 148 mm in width, 50 mm in height, and 40 mm in depth. Its compact size facilitates design standardization across multiple control panels. The unit features a safe terminal block that prevents screw loss during wiring operations. Moreover, the modular design allows network modifications through simple unit replacement without panel redesign.
Key Technical Specifications
The table below summarizes the critical parameters for the Fuji NR1JW-16T65DT.
| Parameter | Specification |
|---|---|
| Model Number | NR1JW-16T65DT |
| Manufacturer | Fuji Electric |
| Product Category | Remote I/O Communication Module |
| Network Interface | OPCN-1 |
| Input Points | 16 points, 24 VDC |
| Output Points | 16 points, transistor type |
| Output Current | 0.5 A per point |
| Input Delay | 3 ms or less |
| Transmission Speed | 250 Kbps to 1 Mbps |
| Transmission Distance | 240 m to 800 m (selectable) |
| Network Topology | Bus type (multi-drop) |
| Max. Connected Stations | 31 stations |
| Isolation Method | Photocoupler insulation |
| Occupied Memory | 1 word per 16 I/O points |
| Dimensions (W x H x D) | 148 x 50 x 40 mm |
| Weight | Approx. 240 g |
| Terminal Block | Safe type with finger protection |
| Wiring Size | AWG18 only (temporary UL limitation) |
| Compatible Series | MICREX-SX SPH |
| Standards | UL, CE, RoHS compliant |
Installation and UL Compliance Note
The Fuji NR1JW-16T65DT mounts easily within standard control cabinets. The terminal block features IP20 finger protection for enhanced operator safety. Users should note that UL-compliant wire sizes are temporarily limited to AWG18 only. This limitation applies to products manufactured from May to September 2026. Therefore, please confirm the hardware version and wire size requirements before installation.
Details
| Weight | 0.24 kg |
|---|---|
| Dimensions | 148 × 50 × 40 mm |
