Structured Output Wiring for Control Systems

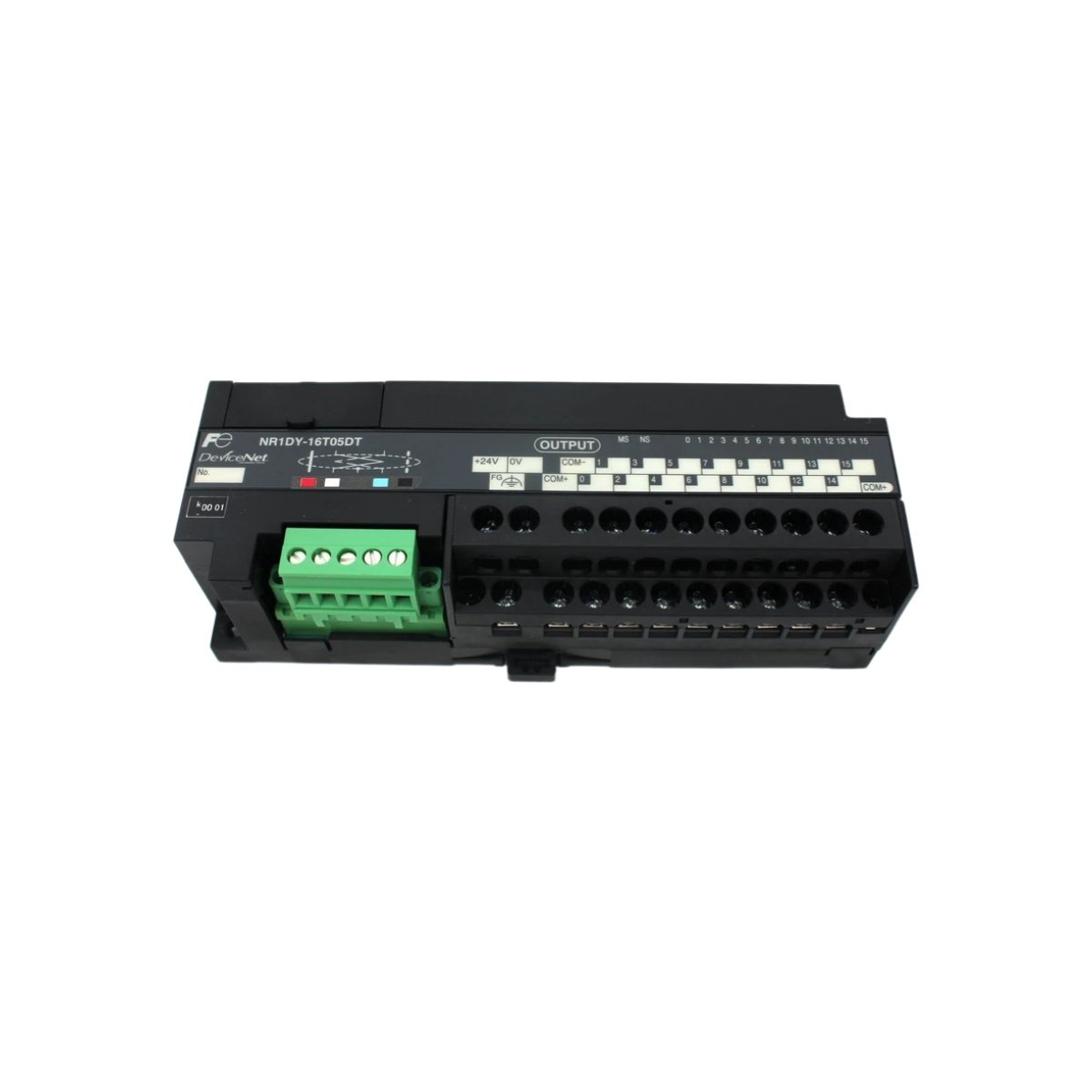

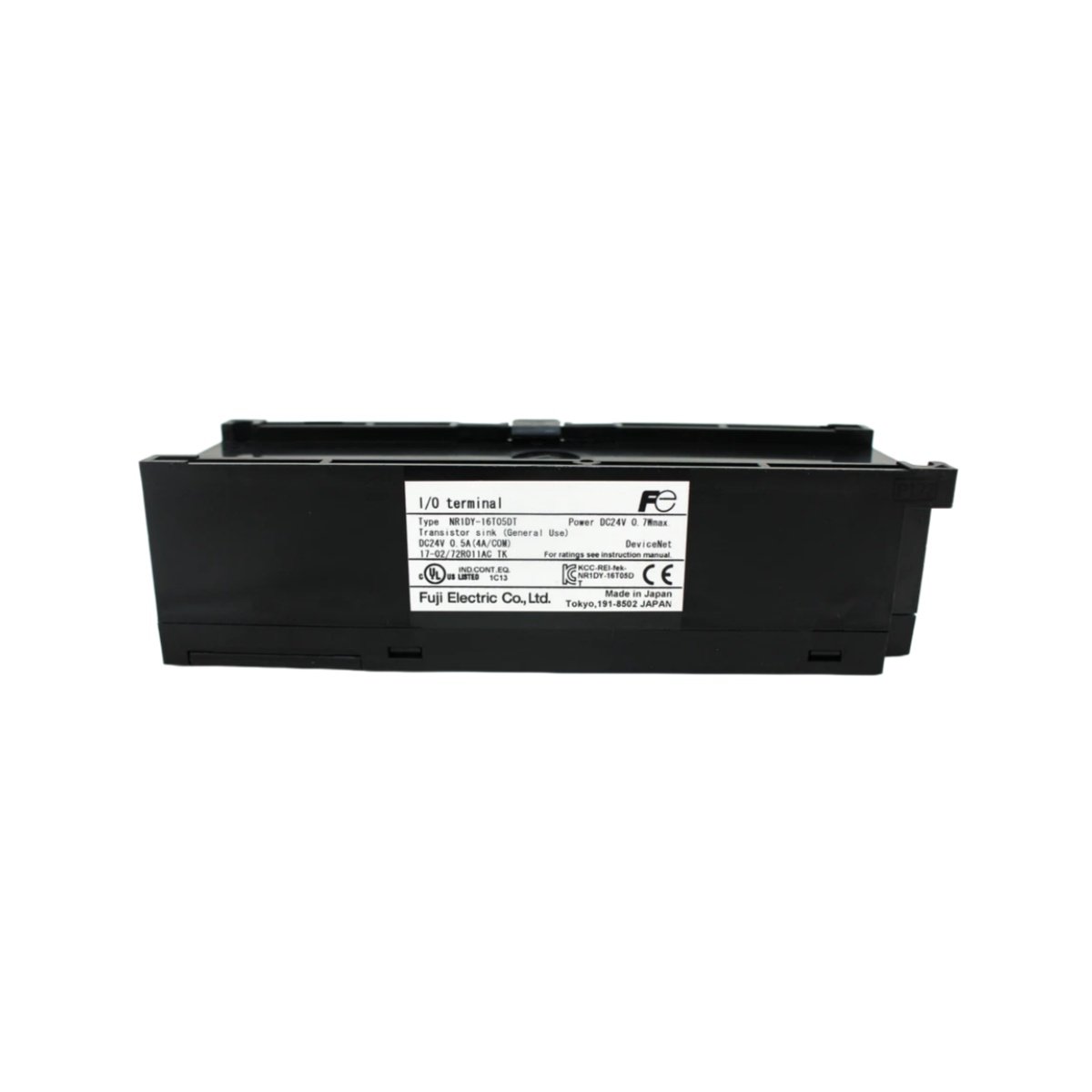

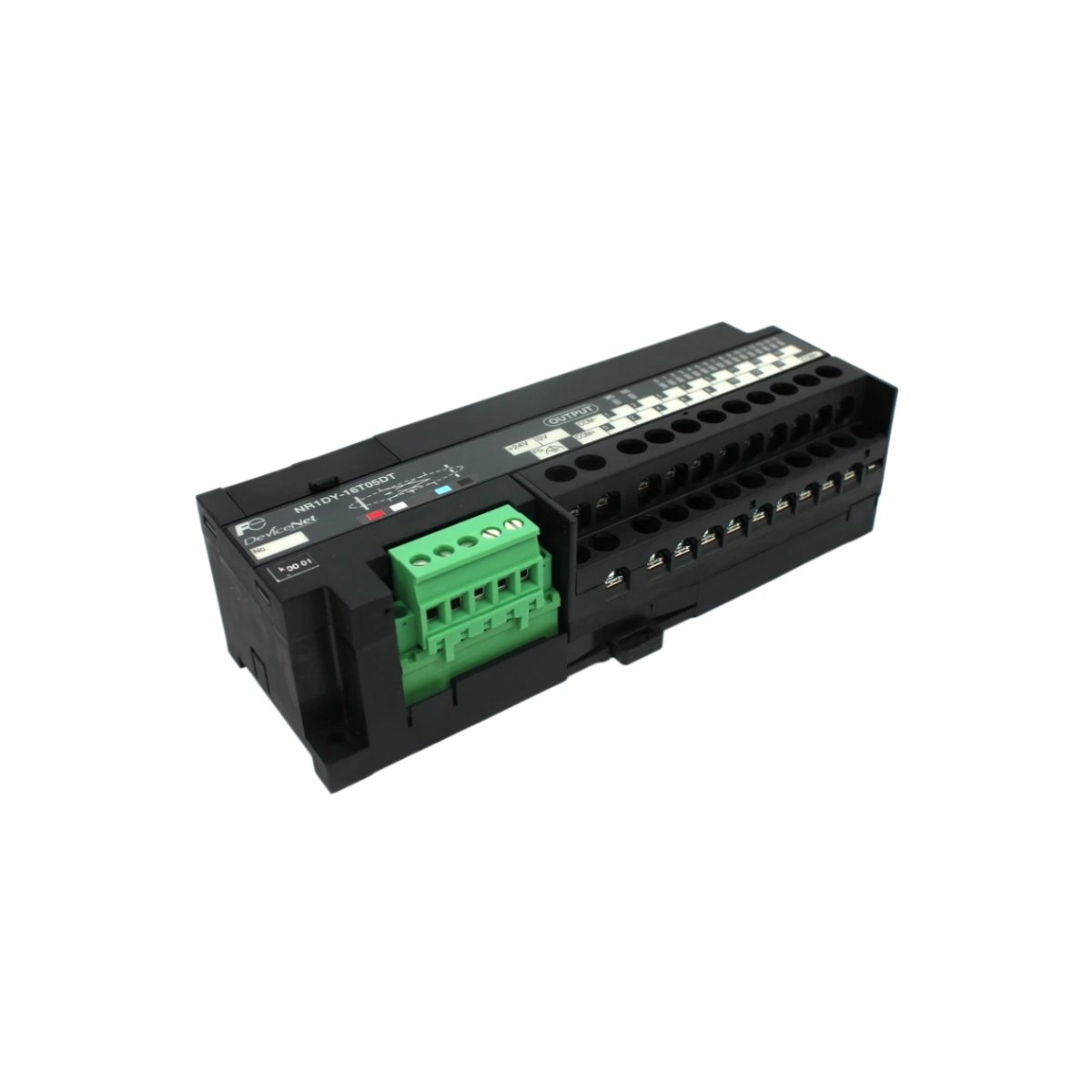

The FUJI NR1DY-16T05DT output terminal provides organized connection points for PLC digital outputs. This module bridges the gap between controller output cards and field actuators. Control panels benefit from this structured approach to signal distribution.
Connection Specifications and Electrical Ratings
This output terminal features 16 spring-clamp termination points with a current rating of 5 A per position. The unit accepts solid or stranded wires from 0.2 mm² to 1.5 mm². Each termination point includes an integrated test socket for signal verification. Furthermore, the module provides a common rail for group output supply distribution.
| Parameter | Specification |
|---|---|
| Brand | FUJI |
| Model | NR1DY-16T05DT |
| Termination Points | 16 (spring-clamp) |
| Current Rating per Point | 5 A |
| Wire Size Range | 0.2–1.5 mm² |
| Voltage Rating | 250 V AC / 300 V DC |
| Common Rail | 1 (integrated) |
| Test Sockets | 16 (integrated) |
| Mounting Type | DIN rail (35 mm) |
| Dimensions (W x H x D) | 100 mm x 65 mm x 45 mm |
| Weight | 0.22 kg |
| Operating Temperature | -25°C to +70°C |
| Housing Material | Polyamide (UL 94 V-0) |
Connection Technology and Wiring Features
The spring-clamp mechanism ensures gas-tight connections that resist vibration and thermal cycling. Users can insert or remove wires quickly using a standard screwdriver or push-button. The module includes numbered terminal positions for straightforward circuit identification. This design simplifies both initial installation and subsequent maintenance tasks.
Labeling and Circuit Identification
Each terminal position features a transparent cover with a label holder for circuit identification. A marking strip along the top edge allows permanent component designations. These features simplify troubleshooting and ensure compliance with safety regulations. Maintenance personnel can easily trace wires back to their PLC output cards.
Applications and System Integration
You can use this output terminal module in PLC cabinets, junction boxes, and field enclosures. The unit works with all major PLC brands and output modules. Multiple modules mount side by side on the same DIN rail for dense output distribution. For high-density applications, combine this unit with other FUJI terminal blocks.
Safety and Compliance
The FUJI NR1DY-16T05DT meets UL 1059 and EN 60947-7-1 standards for terminal block applications. The polyamide housing offers excellent insulation and resistance to industrial chemicals. A finger-safe design prevents accidental contact with live parts. Always ensure proper wire stripping lengths and secure termination for reliable connections.
Details
| Weight | 0.7 kg |
|---|---|
| Dimensions | 2.5 × 20.3 × 15.2 mm |
