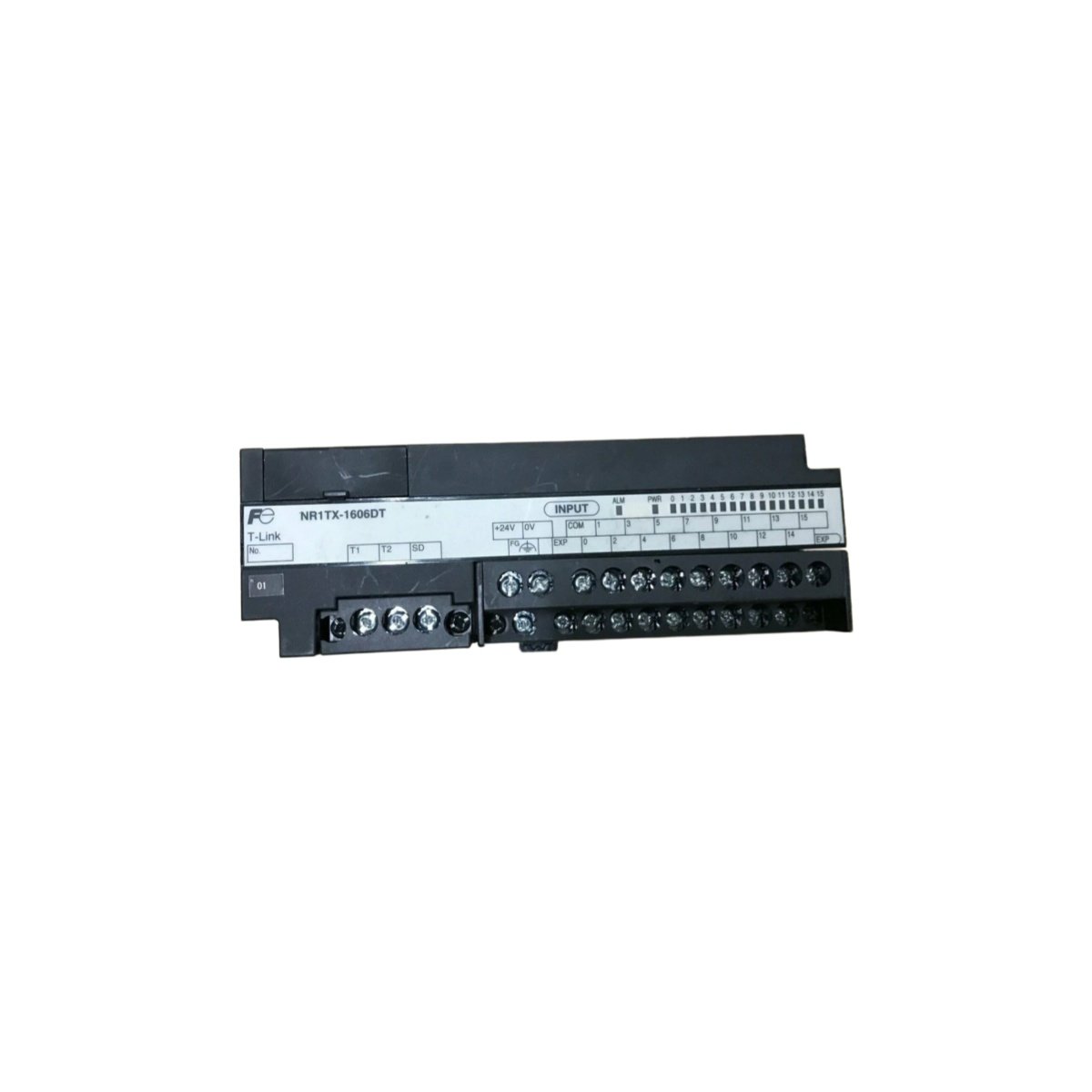

This communication module facilitates reliable data transfer between field devices and the master controller. It integrates seamlessly into the Fuji Electric Micro-SX and SPH series automation platforms. The unit combines serial and network interfaces for versatile connectivity options. Users can connect remote I/O, drives, and operator panels through a single module.

Communication Interfaces and Port Configuration

This module features multiple physical ports for flexible network integration. It provides one RS-232C port for programming and point-to-point connections. The unit also includes two RS-485 ports for multi-drop serial networking. An Ethernet port enables high-speed TCP/IP communication for remote access. Each port operates independently with individual protocol and speed settings. Consequently, users can connect diverse devices across different network types.

Serial Communication and Network Capabilities

The NR1DX-1606DT supports Modbus RTU protocol for standard industrial device integration. Each RS-485 port connects up to 32 slave devices for distributed control layouts. The maximum cable length reaches 1,200 m for large facility installations. The RS-232C port enables direct programming access and HMI connections. All serial ports include optical isolation for electrical noise protection. This isolation prevents ground loops and signal degradation in harsh environments.

Ethernet Connectivity and Remote Access

This module includes a 10/100 Mbps Ethernet port for high-speed data exchange. The port supports Modbus TCP for standardized industrial communication over IP networks. Users can connect up to 64 devices on a single Ethernet segment. Remote diagnostics and firmware updates are possible through the network connection. This capability enables centralized monitoring from control rooms and remote locations. Furthermore, the module supports simultaneous communication on all ports.

Data Exchange and Protocol Conversion

The module performs real-time data mapping between different networks and protocols. It converts Modbus RTU messages to Modbus TCP for seamless integration. Users configure data routing and address mapping through the programming software. The unit buffers communication data for reliable transmission during busy periods. This buffering prevents data loss during high-traffic network conditions. Additionally, the module supports both master and slave operation modes independently.

Diagnostic Functions and Status Indication

Six front-panel LEDs provide clear visual feedback on communication status. A green “Power” LED confirms the presence of supply voltage. A “Run” LED indicates normal module operation and scanning. A red “Error” LED signals communication faults or configuration errors. Individual LEDs show data activity on each communication port. These indicators enable operators to verify network health without external diagnostic tools.

Energy Consumption and Environmental Tolerance

The module draws 70 mA at 5 V DC from the backplane power supply. Power dissipation remains below 2 W under normal operating conditions. The unit operates reliably between 0 °C and 55 °C ambient temperature. Humidity tolerance spans 10% to 90% without condensation issues. The module carries an IP20 rating for protection against solid objects. This robust design suits automotive assembly, packaging lines, and material handling systems.
