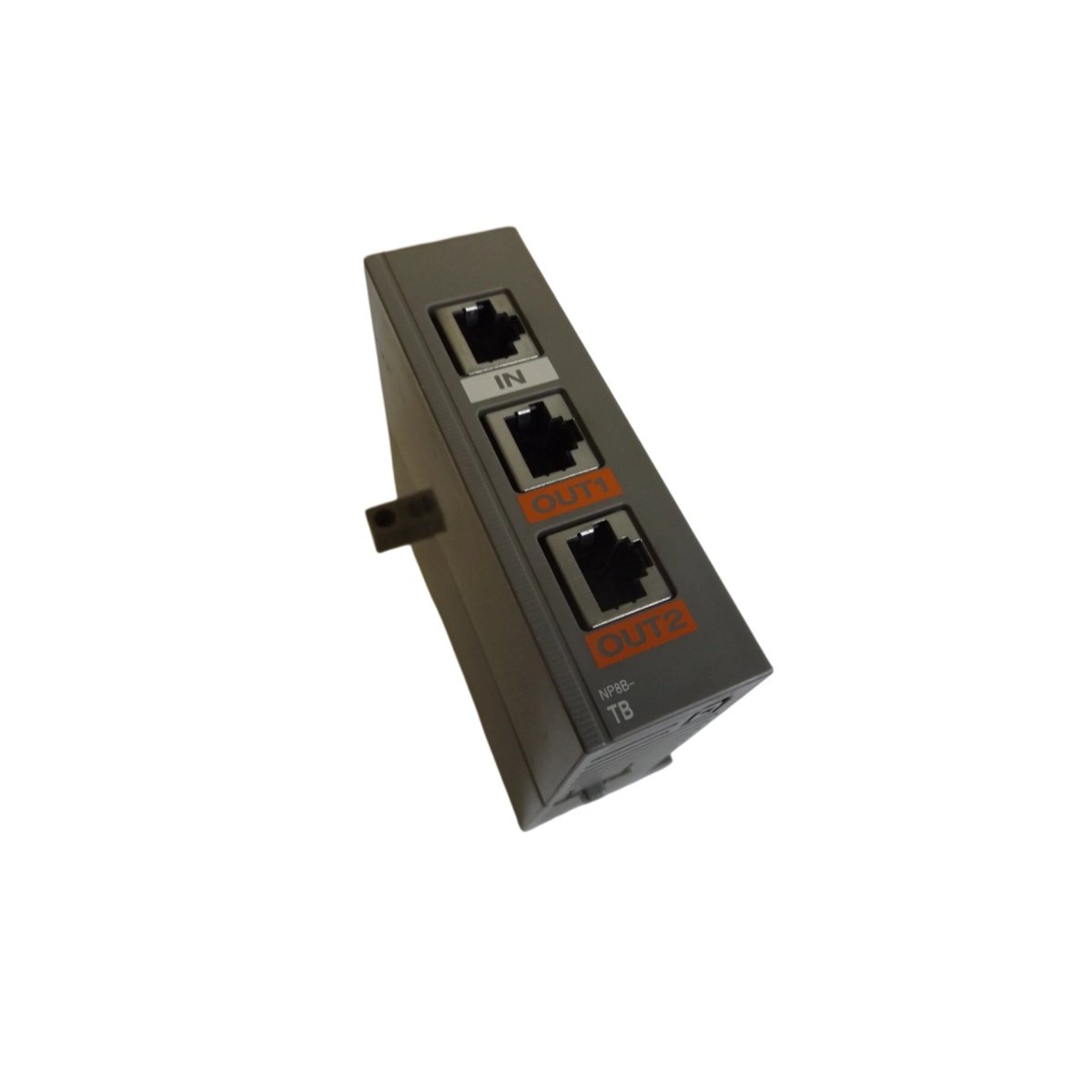

This bus T-branching unit enables flexible network topology for distributed automation systems. It integrates seamlessly into the Fuji Electric SPH series programmable controller platform. The unit provides convenient branching points for fieldbus network connections. Users can extend network coverage and connect multiple devices to a single trunk line.

Network Topology and Branching Capabilities

This T-branching unit creates three-way connections for flexible network distribution. It provides one input trunk connection and two output branch connections. The unit supports daisy-chain and star network topologies for application flexibility. Users can position I/O modules and field devices at optimal locations. This branching capability simplifies network design and installation.

Network Extension and Segment Linking

The NP8B-TB connects multiple network segments into a single cohesive system. It distributes communication signals from the main trunk to branch lines. Users can extend network coverage to remote areas of the facility. The unit maintains signal integrity across all connected branches. This design enables efficient communication with devices located in different zones.

Signal Distribution and Termination

This T-branching unit provides straightforward signal distribution for fieldbus networks. It passes data signals transparently between the trunk and branch connections. Users can connect termination resistors at the network ends for signal integrity. The unit also includes built-in LED indicators for network status monitoring. This visibility simplifies network troubleshooting and maintenance activities.

Installation and Space-Saving Design

This module features a compact 35 mm width for high-density installation. Users can mount the unit on a standard DIN rail without tools. The screw clamp terminals accept solid or stranded wires securely. This compact footprint saves valuable control cabinet space. Furthermore, the unit simplifies wiring by providing clear terminal labeling. This design reduces installation time and potential wiring errors.

System Integration and Compatibility

This bus T-branching unit works with a wide range of Fuji Electric components. It supports T-Link for Fuji Electric remote I/O networks. The unit also works with Modbus RTU networks for third-party compatibility. Users can connect various field devices and controllers through this unit. This compatibility enables flexible system configurations and expansions.

Environmental Durability and Reliability

The unit operates reliably between 0 °C and 55 °C ambient temperature. Humidity tolerance spans 10% to 90% without condensation issues. The module carries an IP20 rating for protection against solid objects. This robust design ensures consistent performance in demanding factory environments. Consequently, users achieve reliable network communication with minimal failures.
